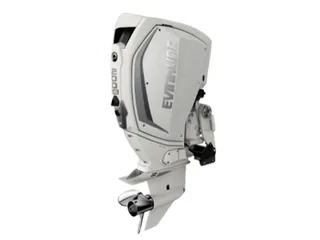

Evinrude H200WXCA 200HP – H.O. G2 G2

Evinrude H200WXCA 200HP H.O. G2 Extra-Long

The Evinrude H200WXCA 200HP represents a milestone in high-performance marine engineering, featuring a 3.4L V6 74-degree E-TEC G2 Direct Injection architecture in a premium White finish. This High Output (H.O.) model is specifically designed for high-transom offshore vessels requiring reliable marine propulsion systems with high-pressure torque and fully integrated digital control. Its 25-inch extra-long shaft and Integrated Dynamic Power Steering (DPS) provide the responsiveness and surgical precision needed for technical maneuvers on fiberglass performance hulls in unpredictable coastal environments.

The recommended full-throttle operating range for the H200WXCA 200HP is a wide 5400-6000 full-throttle RPM range using the i-Control digital shift and throttle system. The specialized 1.85:1 gear ratio effectively translates the 3441cc displacement into immediate hydrodynamic thrust for an hole-shot acceleration experience. Boaters use this BRP-engineered G2 platform for its 133-amp alternator and the efficiency of a direct-injection system that requires zero break-in period for instant high-speed readiness.

Technical Specifications of Evinrude H200WXCA

- V6 74-degree E-TEC G2 Direct Injection architecture delivers 200 horsepower H.O. tuning.
- Durable 253 kg design features a 25-inch extra-long shaft for specialized offshore transoms.
- Integrated Dynamic Power Steering (DPS) provides vessel handling with no external pumps.
- i-Control Digital Shift and Throttle system helps support smooth operation and precise helm management.
- High-output 133-amp alternator (50 Amps Net) helps support all navigation radar remains fully powered.
- Internal 7.6-liter oil reservoir provides extended range without the need for an external oil tank.
- Investment is protected by a limited 3-year factory warranty backed by BRP global service standards.

3.4L V6 High Output G2 Power

The H200WXCA utilizes a 3.4-liter V6 block to provide the highest displacement and torque in the 200HP performance class. This G2 mechanical design helps support strong hole-shot acceleration and mid-range cruising for performance center consoles and technical hulls. Operators may notice available power when maintaining speed through technical turns or under heavy loads with the power of the H.O. direct-injection tuning.

Integrated Dynamic Power Steering (DPS)

This G2 outboard features Integrated Dynamic Power Steering (DPS), which builds the steering system directly into the engine midsection, eliminating all external hydraulic lines and rams. This digital steering provides adjustable feedback and precision for the captain, resulting in an incredibly clean transom and high-speed tracking. This can provide a higher level of control and reliability through the total elimination of traditional mechanical steering lag and hydraulic leaks.

i-Control Digital Shift & Throttle

The H200WXCA utilizes the i-Control system to provide a smooth and cable-free throttle and shifting experience at the helm. This digital flight-by-wire interface allows for precise vessel positioning and synchronization, ensuring the engine reacts instantly to the captain’s input. You gain the tactile control necessary for safe navigation through busy harbors or narrow coastal channels with the reliability of high-speed digital signal processing.

Extended Internal Oil Reservoir

This unit features an integrated 2.0-gallon internal oil reservoir, which eliminates the need for an external oil tank and associated rigging inside the boat. This innovative design maximizes storage space in the bilge while providing enough oil for up to 50 hours of operation at cruising speeds. Owners benefit from a simplified installation and the convenience of monitoring oil levels directly through the primary digital helm display without opening the cowling.

Direct Injection Induction System

The G2 engine features a specialized direct injection system that delivers fuel directly into the combustion chamber for maximum thermal efficiency. This technology results in cleaner emissions and superior fuel economy without the complexity of a 4-stroke valve train. This can provide the benefit of increased power from every drop of fuel while exploring remote offshore sections far from local marina fuel docks during extended oceanic transits.

133-Amp Charging Output

The H200WXCA features a class-leading alternator system delivering a 133 amps of total output, with 50 amps net dedicated specifically to the vessel’s electronics. This electrical capacity supports multiple large-screen navigation displays, high-draw sonar equipment, and livewell pumps without draining the primary starting battery. US This can provide the confidence to run complex digital networks and radar during extended offshore excursions.

Routine Maintenance Care

The G2 engine is built with high-quality sacrificial anodes and a quad-thermostat cooling system to prevent destructive galvanic corrosion daily in saltwater. Regular maintenance of the high-performance gearcase and the digital steering system helps support long-term mechanical reliability in harsh conditions.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
