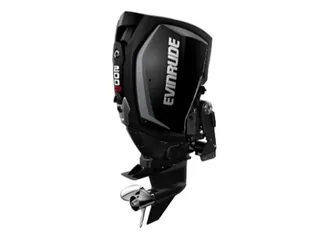

Evinrude H200HGLF 200HP – H.O. G2 20-Inch Shaft

Evinrude H200HGLF 200HP H.O. G2 Digital

The Evinrude H200HGLF 200HP represents a milestone in high-performance marine engineering, featuring a 3.4L V6 74-degree E-TEC G2 Direct Injection architecture. This High Output (H.O.) model is specifically designed for tournament bass boats and high-speed lake runners requiring reliable marine propulsion systems with high-pressure torque. Its 20-inch long shaft and Integrated Dynamic Power Steering (DPS) provide the responsiveness and surgical precision needed for technical high-speed maneuvers on fiberglass performance hulls.

The recommended full-throttle operating range for the H200HGLF 200HP is a wide 5400-6000 full-throttle RPM range using the i-Control digital shift and throttle system. The specialized 1.85:1 gear ratio effectively translates the 3441cc displacement into immediate hydrodynamic thrust for an hole-shot acceleration experience. US tournament anglers depend on this BRP-engineered G2 platform for its 133-amp alternator and the efficiency of a direct-injection system that requires zero break-in period for instant competition readiness.

Technical Specifications of Evinrude H200HGLF

- V6 74-degree E-TEC G2 Direct Injection architecture delivers 200 horsepower H.O. tuning.
- Durable 248 kg design features a 20-inch long shaft for specialized performance vessel heights.
- Integrated Dynamic Power Steering (DPS) provides vessel handling with no external pumps.
- i-Control Digital Shift and Throttle system helps support smooth operation and precise helm management.
- High-output 133-amp alternator (50 Amps Net) helps support all navigation displays remain powered.
- Internal 7.6-liter oil reservoir provides extended range without the need for an external oil tank.
- Investment is protected by a limited 3-year factory warranty backed by BRP global service standards.

3.4L V6 High Output Displacement

The H200HGLF utilizes a 3.4-liter V6 block to provide the highest displacement and torque in the 200HP performance class. This G2 mechanical design helps support strong hole-shot acceleration and mid-range cruising for performance bass boats and technical hulls. Operators may notice available power when maintaining speed through technical turns or under heavy tournament loads with the power of the H.O. tuning.

Integrated Dynamic Power Steering (DPS)

This G2 outboard features Integrated Dynamic Power Steering (DPS), which builds the steering system directly into the engine midsection, eliminating all external hydraulic lines and rams. This digital steering provides adjustable feedback and precision for the captain, resulting in an incredibly clean transom and high-speed tracking. This can provide a higher level of control and reliability through the total elimination of traditional mechanical steering lag.

i-Control Digital Shift & Throttle

The H200HGLF utilizes the i-Control system to provide a smooth and cable-free throttle and shifting experience at the helm. This digital flight-by-wire interface allows for precise vessel positioning and synchronization, ensuring the engine reacts instantly to the captain’s input. You gain the tactile control necessary for safe navigation through busy harbors or narrow technical channels with the reliability of digital signal processing.

Extended Internal Oil Reservoir

This unit features an integrated 2.0-gallon internal oil reservoir, which eliminates the need for an external oil tank and associated rigging inside the boat. This innovative design maximizes storage space in the bilge while providing enough oil for up to 50 hours of operation at cruising speeds. Owners benefit from a simplified installation and the convenience of monitoring oil levels directly through the primary digital helm display.

133-Amp Electrical Output

The H200HGLF features a class-leading alternator system delivering a 133 amps of total output, with 50 amps net dedicated specifically to the vessel’s electronics. This electrical capacity supports multiple large-screen navigation displays, high-draw sonar equipment, and livewell pumps without draining the starting battery. US tournament anglers gain the confidence to run complex digital networks during extended competitive missions.

Routine Maintenance and Care

The G2 engine is built with high-quality sacrificial anodes and a quad-thermostat cooling system to prevent destructive galvanic corrosion daily in saltwater. Regular maintenance of the high-performance gearcase and the digital steering system helps support long-term mechanical reliability in harsh conditions.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
