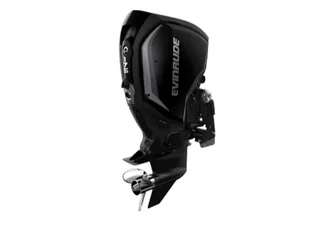

Evinrude C175GLP 175HP G2 20″ Power Steering Outboard

The Evinrude C175GLP is a 175hp standard rotation outboard designed with a 20-inch shaft for multi-engine offshore boats. This 2.7-liter 66-degree V6 platform produces immense structural density through its 2744 cc displacement while maintaining an optimized dry weight of 496 lbs to maximize pure marine performance. Engineered explicitly for low-transom configurations, the 20-inch shaft length helps support ideal propeller depth and balanced tracking across heavy-duty fiberglass hulls navigating rough open ocean waters.

The 5000 to 6000 RPM operating range should be matched to the boat, load, propeller, and intended use. The 2.17:1 gear ratio should be matched with an appropriate propeller and boat setup. under heavy loads. This USA-built outboard leverages advanced block harmonics to eliminate low-frequency hull vibrations during severe long-range deep-sea operations.

Technical Specifications of Evinrude C175GLP

- E-TEC direct injection utilizes stratified low RPM combustion to maximize total thermal efficiency across all cylinders.
- A heavy-duty 133 total amp alternator generates power to keep house battery banks charged.
- The external hydraulic control compatibility replaces built-in mechanisms with responsive remote steering vessel configuration setups.
- The proprietary iTrim automatic system simplifies trailing and shallow-water operation by adjusting engine angle clear of the water when used as intended.
- An extensive 11.4-liter internal tank helps support optimal thermal dissipation and continuous lubrication during hard wide-open throttle runs.
- The specialized SLX hydrodynamic gearcase balances out propeller torque to maintain tracking on high-performance boats.

Slate Gray Standard Architecture

An advanced 66-degree V6 direct-injection 2-stroke design treats the cylinder layout of this high-output powerhead to optimize total thermal efficiency. This engineering process shaves critical response lag off the block while drastically improving volumetric efficiency under severe load environments.

Stratified Low RPM Induction

Direct fuel injection sprays gasoline straight into the combustion chambers under high pressure for clean combustion cycles on 87 octane fuel. This delivery system is designed to support immediate throttle response and flawless cold starts during changing early morning coastal marine conditions.

SLX Hydrodynamic Gear Housing

Oversized internal gears and a hydrodynamic gearcase profile minimize underwater drag at high cruising speeds. This structural configuration mitigates lower-unit gear chatter and helps support smooth power transmission to the hub during tight cornering maneuvers.

ICON II Digital Rigging

Digital electronic control networks integrate seamlessly with the external hydraulic cylinders to automate tracking and throttle tracking adjustments. This remote-ready configuration coordinates with ICON II electronics to maintain crisp engine response across varying water conditions.

Repower Coastal Bay Match

Repower applications for single mechanical or external hydraulic helm coastal bay boats, multi-species fishing boats, and fiberglass hulls from 18 to 23 feet are targeted. The short shaft delivers leverage and structural vibration dampening when driving through steep waves.

Three Gallon Fluid Storage

Fast access to vital checking points is provided by a specialized outer cowling structure that cuts service times down significantly. Changing the internal fluid volume remains completely clean thanks to an engineered clean-drain setup that prevents spoiling oil.Maintenance note: Follow the manufacturer’s service procedures and lubrication specifications for the engine and gearcase.
