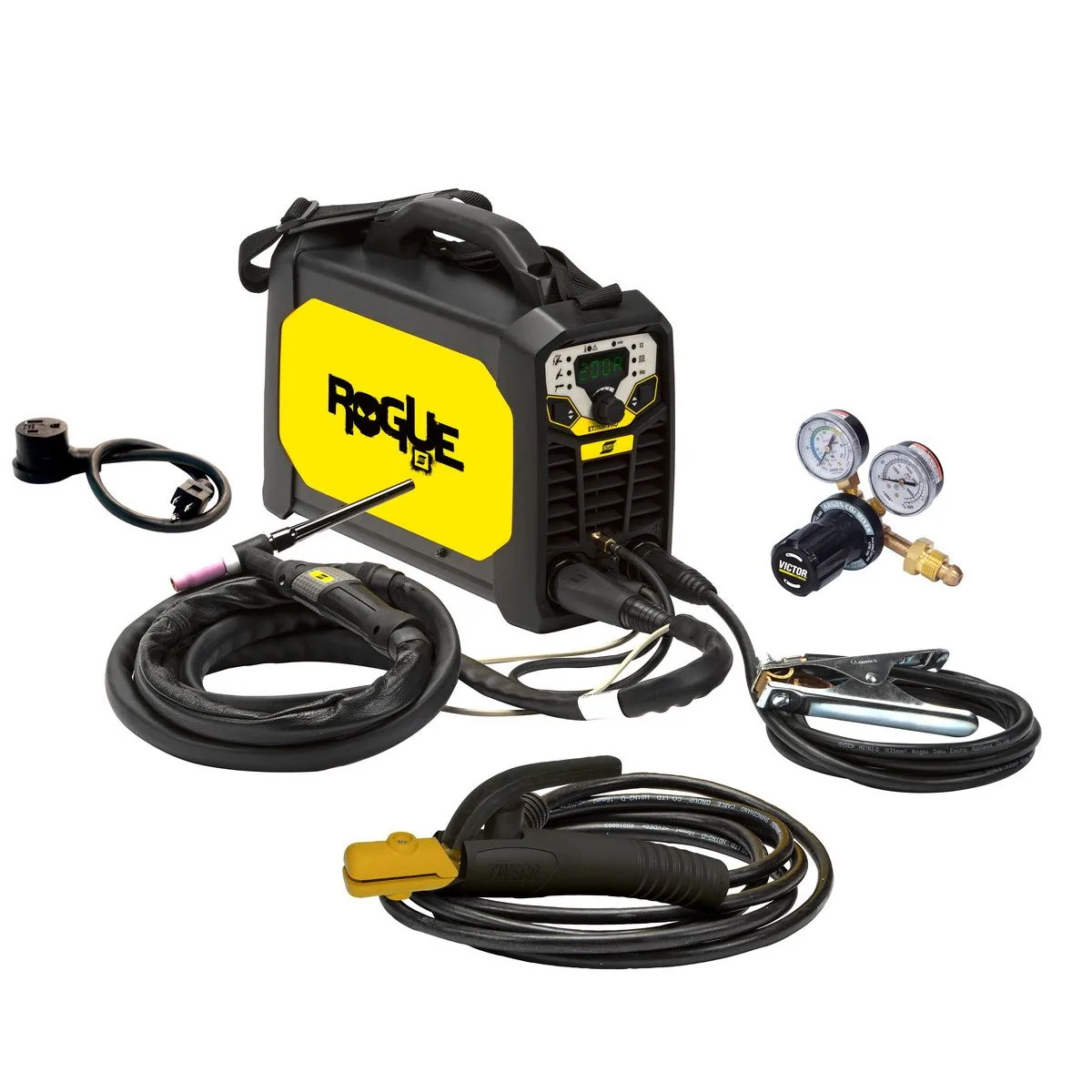

ESAB Rogue ET 200iP DC TIG Stick Welder – 10-200A Amp Range, P/N 0700500073

Constructed with advanced Power Factor Correction (PFC) circuitry, the ESAB Rogue ET 200iP DC TIG stick welder (P/N 0700500073) withstands voltage drops across 300-foot extension cords without arc wander or stutter. Pipefitters and mechanical maintenance contractors face weak, unstable arcs when running basic inverters on long jobsite power leads or unstable generators. This 200-amp DC TIG and Stick power source incorporates an active PFC module that stabilizes input voltage, delivering a stiff, focused welding arc across 120V or 230V primary circuits.

High-frequency arc starting ignites DC TIG arcs without touching tungsten to base metal, preventing contamination on sanitary stainless process piping. An integrated pulse TIG function modulates current up to 500 Hz, constricting the plasma cone to increase root penetration while minimizing heat input on thin stainless exhaust tubing. In Stick mode, adjustable hot start and arc force settings provide smooth strikes and deep penetration with cellulosic 6010 and low-hydrogen 7018 electrodes.

Technical Specifications of ESAB Rogue ET 200iP

- 10-200A Operating Current Range: Delivers precise low-amperage TIG control from 10 amps up to 200 amps for heavy pipe.
- High-Frequency Arc Initiation: Strikes an instant DC TIG arc without touching base metal to preserve tungsten geometry.
- Pulse TIG Frequency up to 500 Hz: Constricts the arc cone for superior puddle freeze and reduced heat input on thin stainless.
- Power Factor Correction (PFC) Inverter: Maintains full welding output across long 300-foot extension cords and fluctuating generators.
- Dual-Voltage 120V/230V Primary Input: Delivers 140 amps on 120V household outlets and 200 amps on 230V industrial circuits.
- Digital Microprocessor Display: Shows exact amperage, pre-flow, post-flow, pulse frequency, and slope times for certified procedures.
- Rugged IP23S Weather Protection: Certified to operate outdoors in damp, dirty industrial environments without electrical shorting.
- Lightweight 21-Pound Chassis: Compact briefcase-size housing features a heavy-duty shoulder strap for climbing ladders and scaffolding.

Operational Reliability in Commercial Service

This DC pulse TIG inverter delivers sanitary pipe quality and structural stick penetration in an ultra-portable briefcase chassis.

- PFC technology eliminates arc fluttering when operating on portable construction generators or long drop cords.
- High-speed pulse TIG up to 500 Hz increases travel speeds and reduces heat distortion on thin stainless food-grade piping.
- Rugged fiberglass-reinforced polymer cabinet resists jobsite impacts and protects internal electronic components.
- High-frequency arc ignition ensures clean, inclusion-free weld roots on critical high-pressure hydraulic lines.

Machinery Compatibility & Chassis Mounting

Weighing only 21.2 pounds with an overall length of 15.8 inches, this ultra-portable TIG power source hangs from scaffolding railings and stores in jobsite gang boxes.

Warranty Coverage & Preventive Maintenance

- Commercial mechanical contractors receive 3-Year factory warranty coverage against internal power component defects.
- Authorized ESAB service centers provide nationwide technical support and genuine replacement parts.

Maintain peak performance by sharpening 2 percent ceriated or lanthanated tungsten clean, blowing shop dust out of the cabinet every 50 hours, and inspecting gas hose connections. Order the ESAB Rogue ET 200iP DC TIG stick welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
