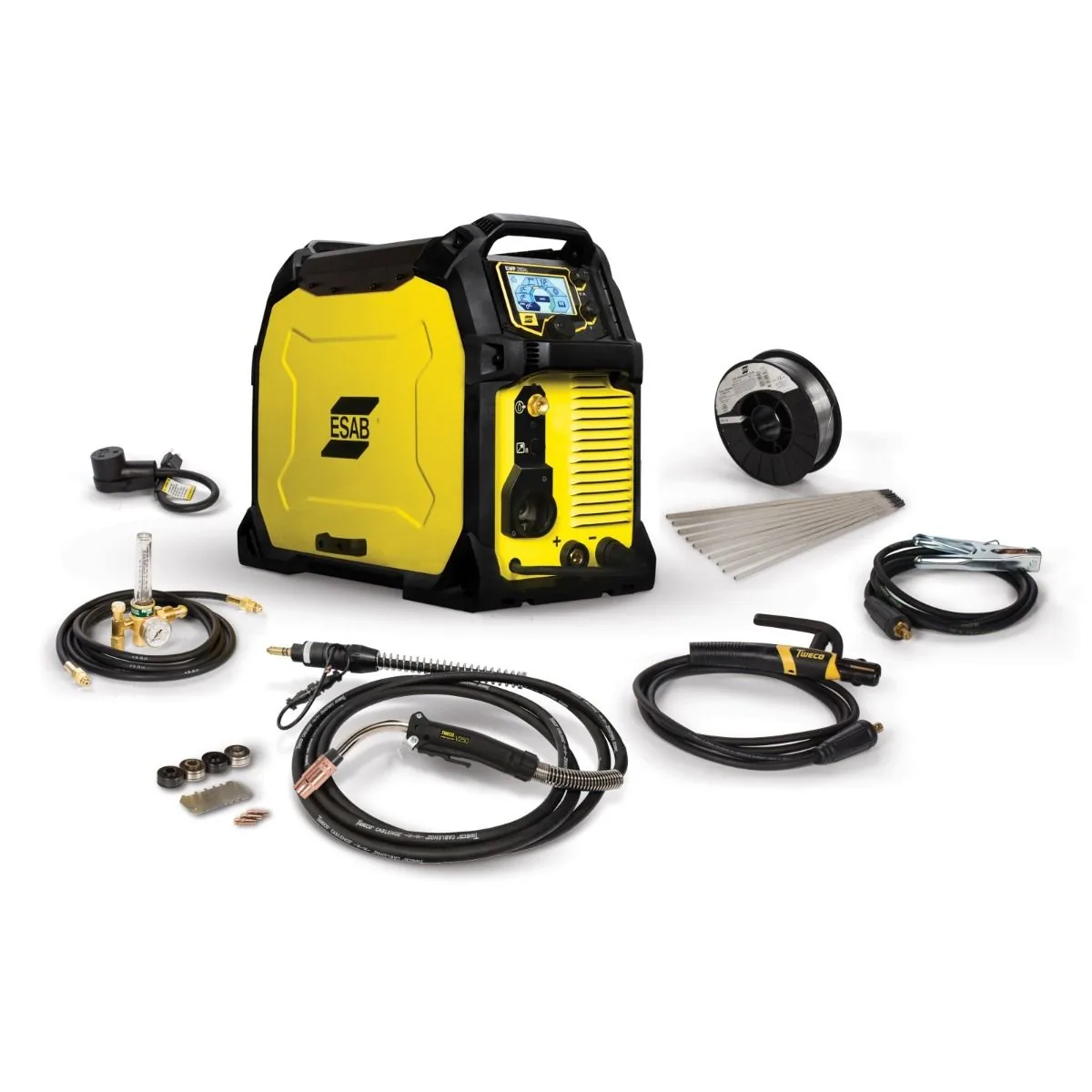

ESAB Rebel EMP 285ic Multi Process Welder – 5-300A Amp Range, P/N 0558102554

The ESAB Rebel EMP 285ic multi process welder (P/N 0558102554) solves heavy industrial fabrication bottlenecks through massive 300-amp peak output and multi-voltage primary power flexibility. Structural steel shops and heavy equipment repair facilities lose money when undersized inverters overheat under continuous 0.045-inch wire spray welding. This heavy industrial machine delivers up to 300 amps of pure multi-process power, operating on single-phase 120V, single-phase 230V, or three-phase 460V power to weld 5/8-inch plate in single passes.

Dual-drive rolls feed 0.035-inch to 0.052-inch solid and flux-cored wires up to 700 IPM without slip or wire deformation. The high-resolution TFT display shows comprehensive parameter feedback, while internal memory banks store multiple custom welding procedure specifications for rapid operator recall. The rugged steel unibody enclosure features four lifting handles and crane-hoist points, ensuring durability in brutal shipyard and structural steel environments.

Engine Architecture of ESAB Rebel EMP 285ic

- 5-300A High-Output Industrial Window: Produces up to 300 amps of welding current to weld 5/8-inch structural steel plate.
- Multi-Voltage 120V/230V/460V Flexibility: Operates on standard shop single-phase power or heavy industrial three-phase current.
- Industrial 40% Duty Cycle at 285 Amps: Sustains heavy spray-arc welding and structural flux-cored passes without thermal cutout.
- Supports up to 0.052-Inch Wire Diameter: Feeds heavy-gauge flux-cored structural wire up to 700 IPM for maximum deposition.
- Full-Color TFT Graphical Interface: Displays visual parameter charts, setup instructions, and stored welding programs.
- Heavy-Duty All-Steel Enclosure: Industrial grade chassis with integrated roll cage protects internal components from severe impacts.

Commercial Utility Stamina & Lifespan

Engineered for structural steel fabrication and heavy plant maintenance, this 300-amp multi-process machine maximizes daily metal deposition.

- Three-phase 460V capability delivers maximum electrical efficiency, lowering power draw across high-hour manufacturing plants.
- High duty cycle allows continuous spray-arc deposition on heavy structural beams without thermal overload shutoffs.
- Digital parameter locking prevents unauthorized setting modifications on certified structural welding jobs.

Chassis Integration & Industrial Fitment

Measuring 26.5 inches long and weighing 70 pounds dry, this heavy-duty multi-process welder mounts on industrial running gear carts with dual shielding gas cylinders.

Commercial Warranty & Field Maintenance

- ESAB backs this Rebel EMP 285ic industrial machine with a 3-Year Ironclad warranty covering all internal power electronics and drive motors.

Clean internal heatsinks every 50 hours with dry shop air, check wire spool brake tension monthly, and inspect gun contact tips for keyhole wear after heavy spray runs. Order the ESAB Rebel EMP 285ic multi process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
