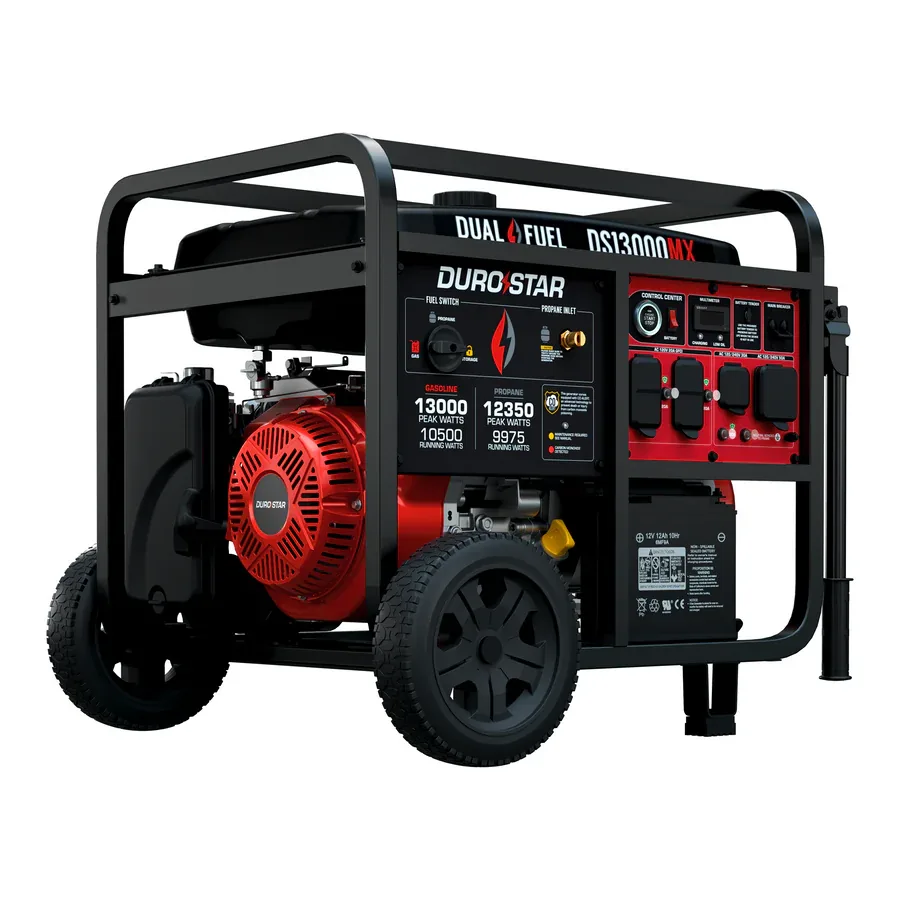

DuroStar DS13000MX 13000W Peak Portable Generator – Dual-Fuel

Start heavy commercial refrigeration compressor loads through the DuroStar DS13000MX Portable Generator, engineered for rugged jobsite conditions and restaurant emergency backup. This dual-fuel open-frame generator produces 13000 starting watts and 10500 running watts on gasoline, energizing commercial kitchen walk-in boxes, exhaust fans, and electrical cooking appliances during unexpected grid interruptions.

Built on a rugged 1.5-inch tubular steel roll cage, the chassis houses a heavy 500cc four-stroke OHV engine fitted with cast-iron cylinder sleeves for long service life. The alternator incorporates 100 percent copper windings that resist heat degradation during continuous maximum-load runs. An 8.3-gallon fuel tank sits atop the 240-lb frame, which measures 29 inches long by 28 inches wide by 26 inches high.

Key Features of DuroStar DS13000MX

Business operators who buy DuroStar DS13000MX portable generator units gain high-output commercial power equipment ready for severe weather emergencies. This dual-fuel system allows fast switching between liquid gasoline and propane tanks, keeping vital food service operations active through prolonged electrical outages.

- 13000 starting watts deliver massive surge capacity to start inductive five-ton compressor loads without stalling the engine.
- 10500 continuous running watts sustain multiple commercial refrigeration cases, hot holding cabinets, and prep tables.

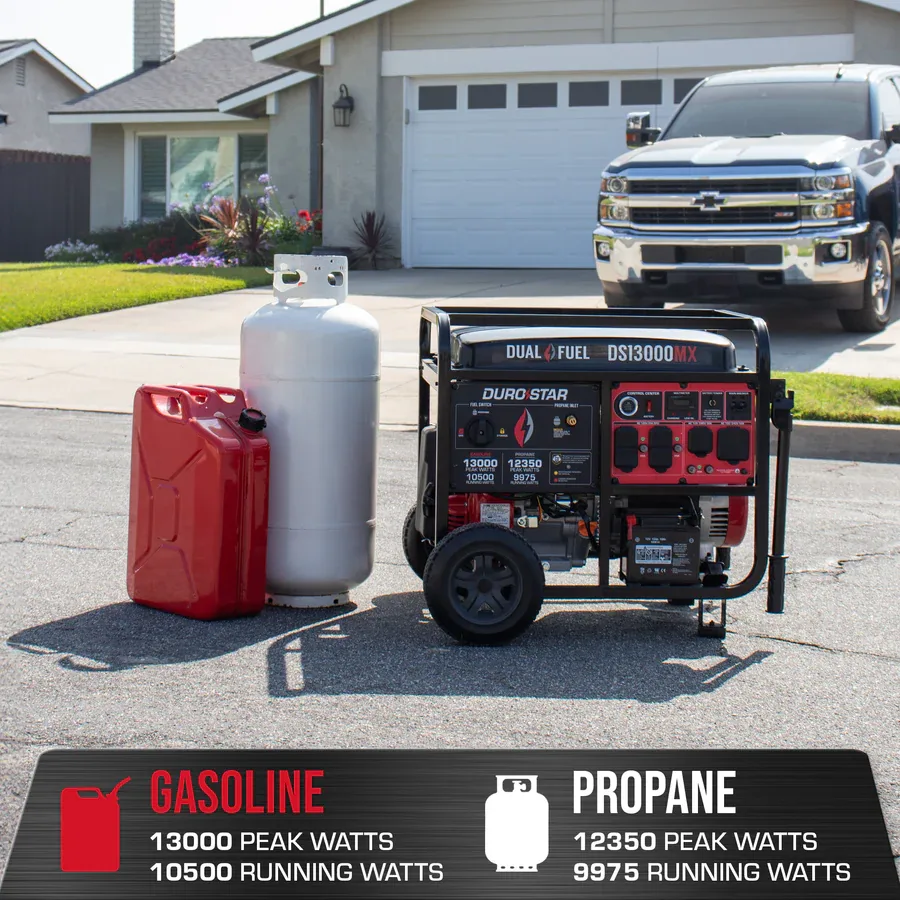

- Dual-fuel operation allows quick changes between liquid gasoline and commercial 100-lb propane cylinders on site.
- 50A NEMA 14-50R heavy duty outlet feeds 120V and 240V high-amp service to master commercial transfer switches.
- 30A NEMA L14-30R twist-lock receptacle provides secure vibration-proof connections for mobile kitchen distribution lines.
- DS13000MX analog multimeter allows technicians to monitor line voltage and operational frequency on each shift.
- Cast-iron cylinder sleeve ensures proper ring sealing and sustained compression through hundreds of runtime hours.

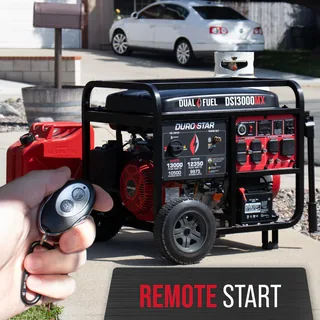

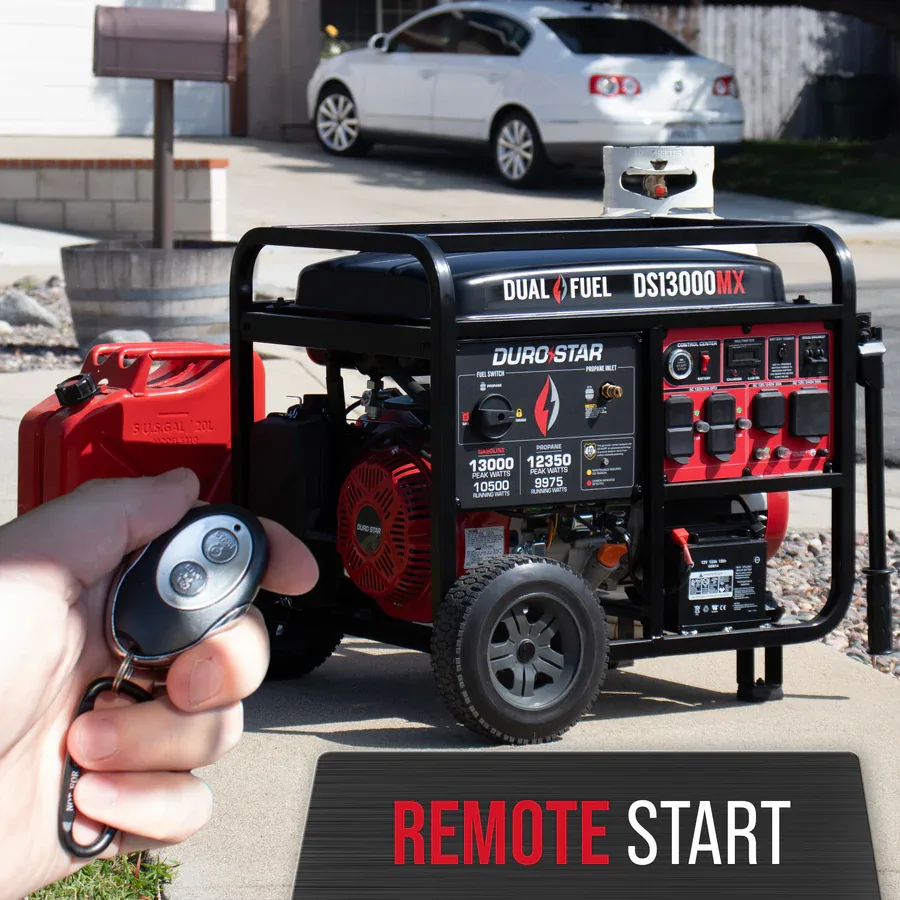

- Electric key start mechanism provides immediate engine cranking without requiring manual recoil cord exertion.

Voltage Regulation Heavy Inductive Tolerances

Operating at an acoustic level of 74 dB(A) at 23 feet, this open-frame generator relies on an oversized steel muffler to reduce jobsite exhaust noise. The internal automatic voltage regulator keeps output voltage steady within 2 percent of 120V and 240V standards, absorbing high-amperage starting surges from walk-in freezer compressors. Consuming 0.85 GPH at half load, it yields 9.7 runtime hours per tank.

Exhaust Spacing Neutral Bond Wiring

Position the machine outdoors on level ground at least 5 feet from commercial exterior walls, windows, and customer entry doors. The unit comes configured with a bonded neutral to the frame, requiring disconnection of the bonding jumper when connecting to commercial transfer switches with pre-existing neutral-ground bonds.

Physical Mobility Field Maintenance Tasks

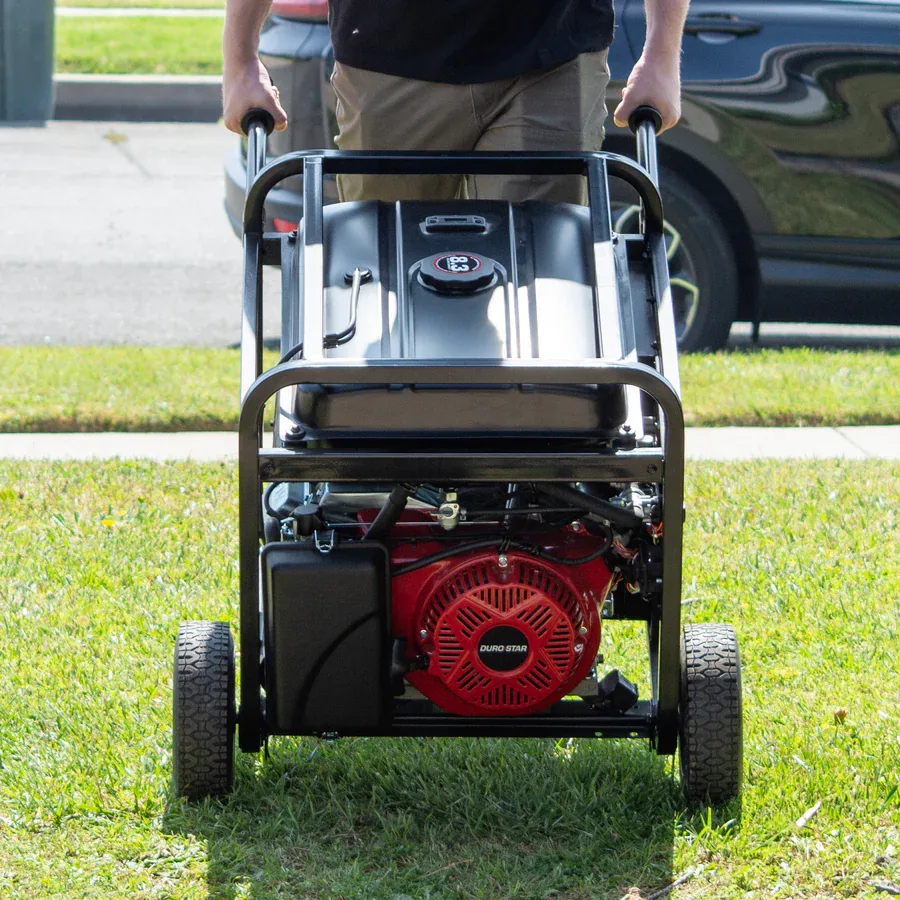

Moving this 240-lb open-frame generator across broken pavement requires 32 lbs of effort using the solid wheels and folding handle. This generator is not engineered for indoor warehouse operation without exterior exhaust venting, nor for powering sensitive microcomputers lacking surge suppression equipment.

- Drain break-in motor oil and refill with fresh 10W-30 oil every 50 runtime hours.
- Clean dust and debris from the air cleaner filter element every 100 runtime hours.
- Inspect the ignition spark plug and set correct gap every 250 runtime hours.

Commercial Warranty Crate Manifest Details

DuroStar backs this unit with a 3-Year commercial warranty covering engine mechanicals, stator assemblies, and electrical switchgear. The shipping package includes the DuroStar DS13000MX generator, propane connection line with regulator, wheel assembly kit, 12V starting battery, oil funnel, tool set, and operator manual.
