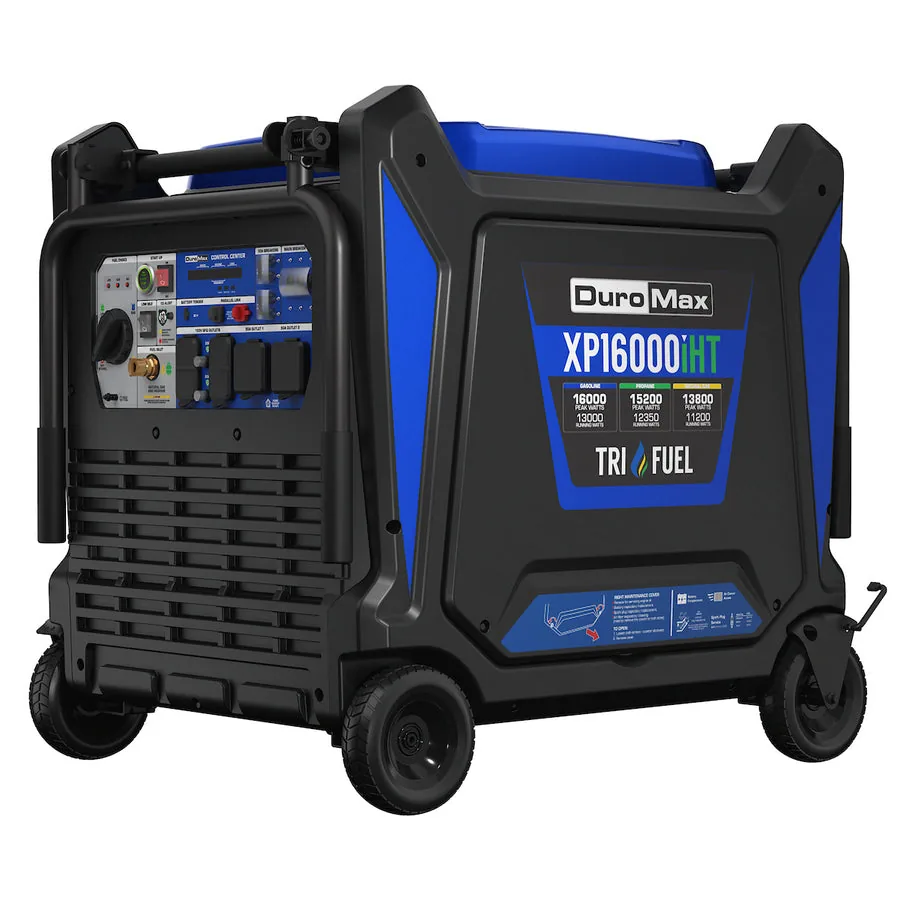

DuroMax XP16000iHT 16000W Peak Inverter Portable Generator – Tri-Fuel

Clean under-three-percent harmonic distortion anchors the DuroMax XP16000iHT Inverter Generator, supplying pristine electrical output across three distinct fuel sources. Delivering 16000 starting watts and 13000 running watts, this tri-fuel generator runs on gasoline, propane, or utility natural gas to protect computerized refrigeration systems and commercial kitchen displays against voltage instability.

Constructed around a rigid structural steel chassis, this machine houses a durable 713cc V-twin four-stroke engine fitted with high-efficiency cooling fans. Pure copper alternator windings maximize electrical efficiency and suppress heat buildup during continuous peak load cycles. Containing an 11-gallon fuel tank, this 330-lb commercial generator features an exterior perimeter envelope measuring 34 inches long by 32 inches wide by 35 inches high.

Key Features of DuroMax XP16000iHT

Managers who buy DuroMax XP16000iHT inverter generator models invest in tri-fuel versatility to safeguard business continuity during municipal power disruptions. The sophisticated digital control board pairs seamlessly with commercial power equipment to supply balanced electrical phases without harmonic heating.

- 16000 surge watts start large three-horsepower refrigeration pumps without dipping secondary branch circuit voltages.
- 13000 running watts provide massive electrical capacity for food service refrigeration racks and cooklines.
- Natural gas capability connects directly to commercial building supply lines for indefinite running durations.
- Under 3 percent THD delivers clean sine wave electricity safe for delicate microprocessors and speed controllers.

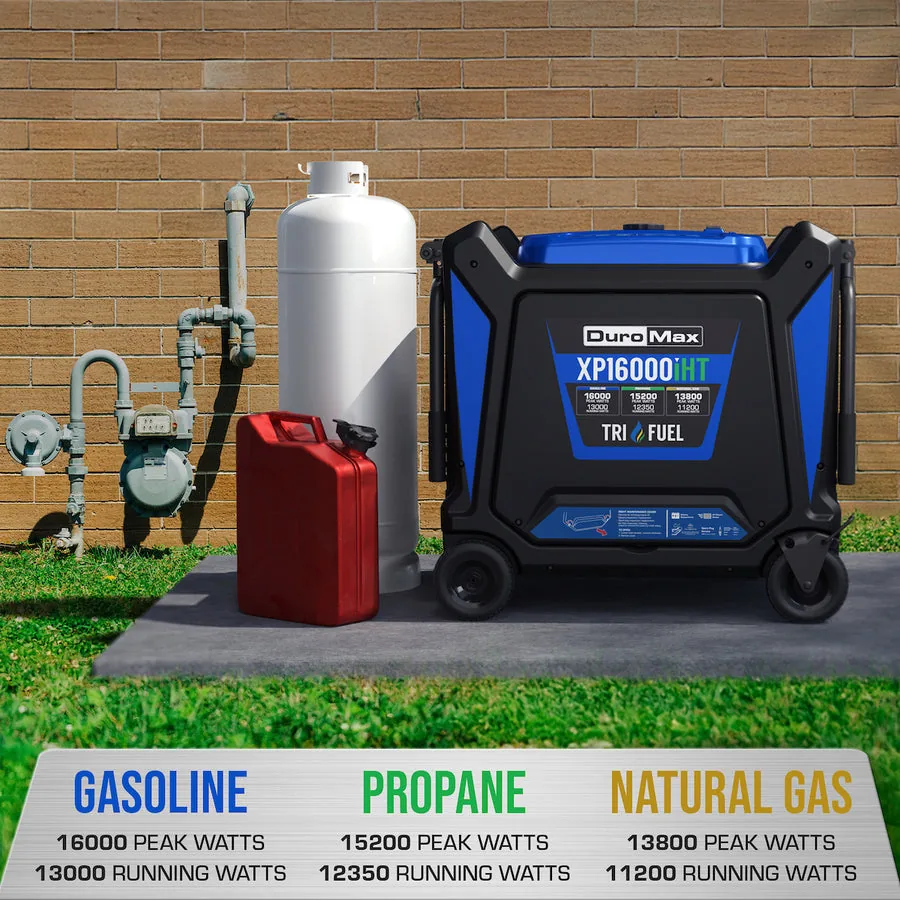

- XP16000iHT tri-fuel dial enables rapid transitions between natural gas, propane, and conventional gasoline feeds.

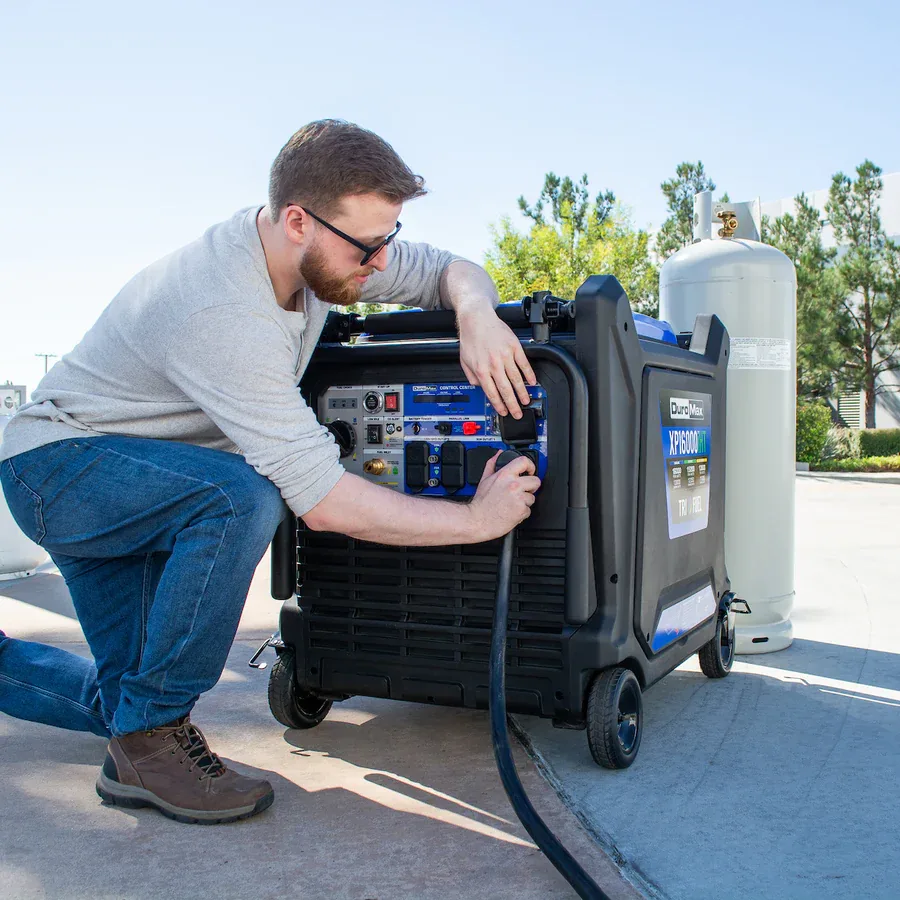

- 50A NEMA 14-50R heavy duty outlet accommodates large commercial distribution cords and mobile trailer inlets.
- Electric push-button start with remote key fob eliminates manual recoil pulling during high-stress storm events.
- Eco-throttle system lowers engine speed during periods of reduced electrical demand to conserve fuel.

Harmonic Control Sound Reduction Metrics

Engineered for high-volume electrical performance, this inverter limits harmonic distortion to under 3 percent, protecting digital displays and touch-screen POS registers from circuit board burnouts. The sound enclosure restrains noise output to 68 dB(A) at 23 feet under half load. Running at 60 Hz with zero frequency drift, the alternator absorbs severe step-load inductive surges from ventilation exhaust blowers, achieving 12 continuous runtime hours at 50 percent capacity on gasoline.

Clearance Parameters Exhaust Gas Management

Establish a perimeter clearance zone of 5 feet around all sides of the generator enclosure, directing hot exhaust manifolds away from building fresh air dampers. The electrical panel features a floating neutral design, integrating cleanly with building transfer switches and commercial food trailer subpanels without triggering upstream residual current devices.

Physical Mobility Field Maintenance Rules

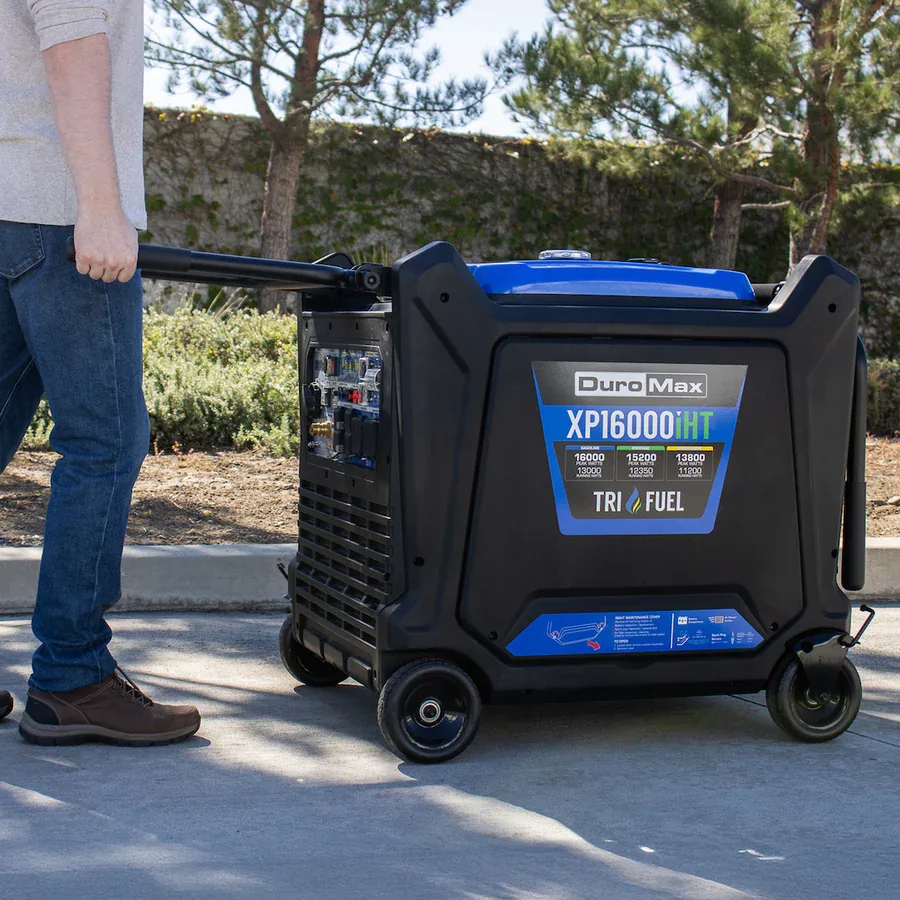

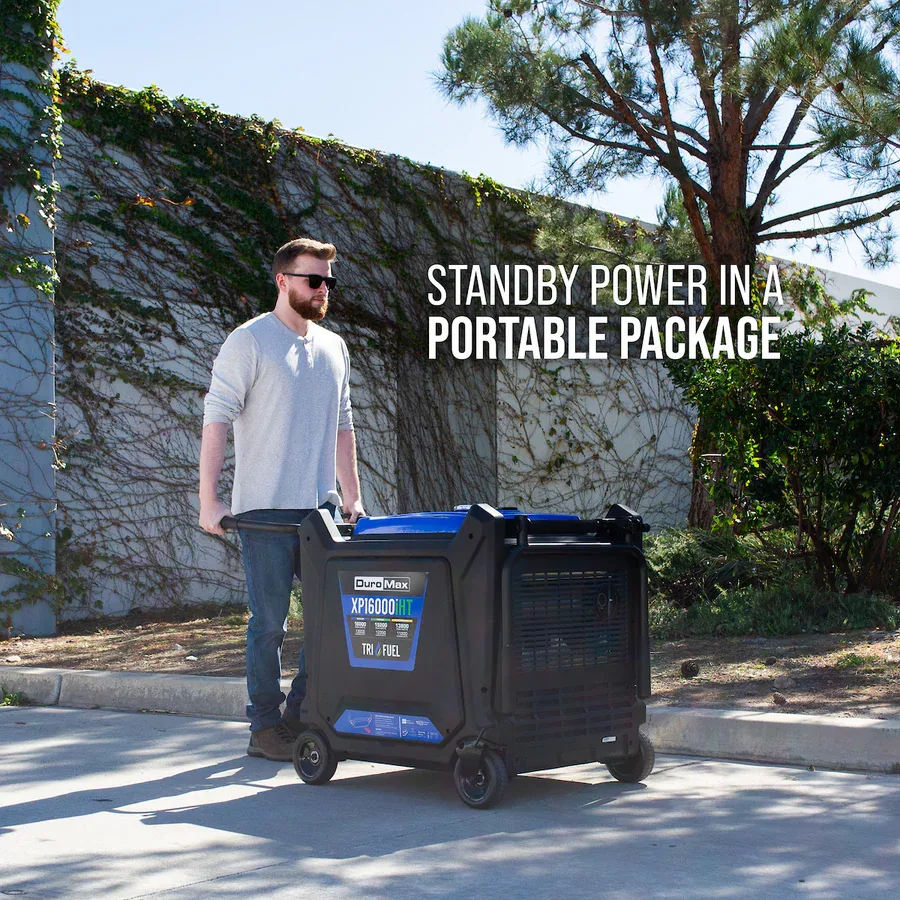

Rolling the 330-lb generator over packed jobsite gravel requires 42 lbs of pulling force on the tubular steel handle. This machine is not engineered for indoor commercial warehouse operations without industrial exhaust ducting, nor for installations where continuous phase imbalance exceeds 20 percent across hot legs.

- Drain break-in engine oil and refill with synthetic lubricant every 50 runtime hours.
- Inspect the tri-fuel regulator diaphragm and fuel hose clamps every 100 runtime hours.
- Remove carbon deposits from spark arrestor screens every 250 runtime hours.

Commercial Warranty Freight Packaging Contents

DuroMax provides a comprehensive 3-Year commercial warranty covering mechanical engine components and digital inverter electronics. Inside the heavy wooden shipping pallet arrives the DuroMax XP16000iHT generator core, natural gas connection hose, propane regulator assembly, remote control fob, oil funnel, spark plug tool, and instruction manual.
