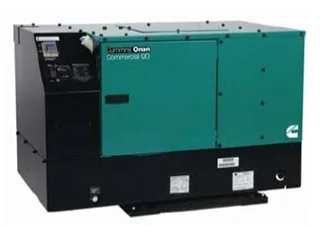

Cummins Onan QD 12000 – 12HDKCD-2209 – 12,000 Watt Quiet Diesel Commercial Mobile Generator (120/240V 50A) details

12 kW Quiet Diesel Commercial Mobile Generator (120/240V)

- Designed for tough commercial applications; 50A 2-Pole CB
- Runs (3) 15,000 BTU AC units w/ 5000 additional watts available

Kubota 1647cc Liquid-Cooled Diesel Engine

- Automatic timed glow plugs for quick & easy starting
- Elec. fuel pump w/ full oil & fuel filter (.48 Gal/h 1/2 Load)

Microprocessor Controlled

- Self-diagnostic capability to simplify troubleshooting

Brush Type-AC Alternator w/ Digital Votage Regurlator

- Provides relaible power & prevents damaging spikes

Computer-Controlled Constant Speed Operation

- No waiting for power, ready when you need it

Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler

- Lowers noise levels while providing cross-flow cooling

Three-Point, Fully Focalized Mounting System

- Reduces vibration for quieter operation
- Stationary exhaust pipe connection point for easy installation

Integrated Generator Set & Engine Control For Ease Of Use

Bulkhead Connections For Fuel & Battery (15A Battery Charging)

2-Year / 2000 Hour Limited Warranty

Specifications

- Product Category; Generator – RV

Overview

- Weight; 816 Pounds
- Consumer Warranty; 2 Years
- Commercial Warranty; 2 Years
- Product Style; RV Generator
- Product Length; 41.5 Inches
- Product Width; 24.5 Inches
- Product Height; 27 Inches

Additional Model Numbers

- 12.0 HDKCD-2209, A055E840

Product Specs

- Voltage; 120/240 Single-Phase
- Frequency; 60 Hertz
- Alternator; Brush
- Auto Voltage Regulation; Yes
- Rated Watts; 12000 Watts
- Fuel Type; Diesel
- Rated Amps; 50 Amps
- Decibel Rating @ 3m; 68
- Idle Control; Yes
- Hour Meter; Yes
- Fuel Consumption; .11-1.20 gallons/hr
- Circuit Breaker Size; 50 Amps
- Grade Type; Professional

Engine

- Engine Brand; Kubota
- Starting System; 12-Volt Button Start
- CC; 1647 CC
- Consumer Engine Warranty; 2 Years
- Commercial Engine Warranty; 2 Years
- Engine RPM; 1800 RPM
- Low Oil Alert/Shutdown; Yes
- Cast Iron Sleeve; Yes
