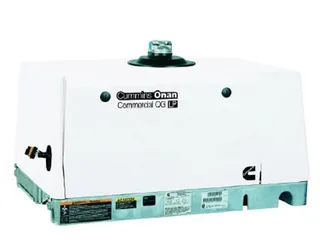

Cummins Onan Commercial Mobile QG 5.5 Gasoline 120/240V EVAP | 5.5HGJAE-6757

Cummins Onan Commercial Mobile 5500 Watt Gasoline Generator

5.5kW 120/240-Volts Single Phase EPA Phase 3 EVAP Trailer Spec

Designed for tough commercial applications. Include exceptionally low noise and vibration, easy installation, diagnostic, capability and digital regulation that maintains voltage stability as loads change. The 5500 kW and above models are designed to consistently perform in applications where dependability and high-quality power are essential. They are built to be the quietest in their class and the enclosed muffler provides easy installation. The advanced digital control provides extensive diagnostic capabilities by constantly monitoring the generator set’s operation and alerting the user to potential problems. It also assists the operator or service personnel in troubleshooting a variety of operating conditions and service checks.

QG 5.5 EVAP Features & Benefits:

- Quietest and lowest vibration generator set in its class
- EVAPporative specification for trailer applications required to meet EPA phase 3 standards.
- Integrated housing design
- Enclosed muffler for ease of installation
- Self-diagnostic capability to simplify troubleshooting
- Runs two ACs
- Digital regulation for voltage stability as loads change
- Cummins Onan 2-year limited warranty, 5-year drive warranty

Product Specifications

Model

Model Number; 5.5HGJAE-6757

Manufacturer; Cummins Onan

Made In USA; Yes

Rated Watts; 5500 Watts

Rated Amps; 22.9 Amps

Voltage; 120/240 Volts

Decibel Rating; 69 dBA Full Load

Type; Commercial Mobile Generator

Series Name; Quiet Gas 5500 Series

Features

Starting System; Electric Start

Low Oil Alert; Low Oil Shutdown

Mainline Breaker; 2-Pole 30 Amp

Hour Meter; Yes

Weight; 288 Pounds

Dimensions; 33.6L x 22.2W x 16.7H inches

Warranty Information

Warranty; Cummins Onan 2 Year/2000 Hour Limited Warranty + 5-Year Drive Train Warranty

Engine

Engine Brand; Cummins Onan OHV EH65V

Engine Size; 653 cc V-Twin 4-Cycle

Engine RPM; 2400 RPM

Cast Iron Sleeve; Yes

Cooling System; Air Cooled

Alternator

Alternator Type; Brushed

Frequency; 60 Hz

Auto Voltage Regulation; Yes

Fuel

Fuel Type; Gasoline

Fuel Gauge; No

Fuel Tank Material; Customer Supplied

Run Time (50% Load); 6 Gallons per Hour at 50% Rated Load
