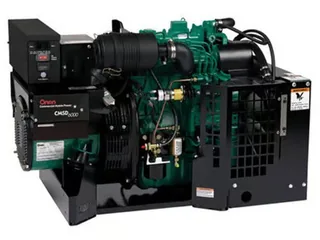

Cummins Onan 7.5kW Commercial Diesel Generator Set 120/240 Volts 3 Phase | 7.5HDKAL-3

Cummins Onan 7500 Watt Diesel Generator

7500 Watts 120/240V 3 Phase Configurable Flexible Installation Liquid Cooled with Suction Fan

Designed for commercial applications, the 7500 Watt Diesel Generator from Cummins Onan features exceptional noise control, a 3-cylinder Kubota D1105 diesel engine, and smooth operation. Glow plugs provide reliable engine starting in all weather conditions. The 7.5HDKAL-3 has a pusher-type radiator fan for the cross-flow radiator. A remountable 90-degree exhaust elbow plus remote mountable DC controls and multiple oil fill and check points offer installation flexibility.

Factory configured for 120/240 Volts 3 Phase, this generator has a 12-lead alternator configurable for a wide range of voltage options.

The 17.1 horsepower diesel engine features top and side oil fill and check points for compartment or platform installations with a vertically mounted full flow oil filter and a replaceable air cleaner. The fuel filter and water remover is also vertically mounted. Cummins equipped this diesel generator with a four-position exhaust elbow, electric fuel pump, and a base pan for drip control. A 30-Amp Alternator keeps the battery charged.

7500 Watt Diesel Generator

The 12-Volt System DC Controls include a start/stop/preheat switch, hour meter, automatic engine shutdown for high coolant temperature and low oil pressure with a manual reset requirement. Also included is a remote connector for the start/stop/preheat switch and gauge package.

Cummins equipped the 7500 Watt generator with electronic voltage regulation and frequency regulation. The alternator features a damper bar system for low harmonic distortion.

No Load/full Load Constant Load

Voltage Regulation 2.5% 1.0%

Frequency Regulation 2.5% 1.0%

Cummins SD7.5 Fuel Consumption

Requires No. 2 diesel with a Cetane of at least 45 for reliable starting.

Fuel Consumption No Load Half Load Full Load

Gallons per Hour 0.25 GPH 0.56 GPH 0.90 GPH

Cummins Onan 2-Year/2000-Hour Limited Warranty Included.

Product Specifications

Model

Model Number; 7.5HDKAL-3

Manufacturer; Cummins Onan

Rated Watts; 7500 Watts

Rated Amps; 22.6 Amps at 240-Volts 3 Phase

Voltage; 120/240 Volts 3 Phase Reconfigurable

Enclosure; Open

Decibel Rating; 63 dBA at 50 feet

Type; Commercial Mobile Generator

Features

Starting System; Electric Start

Low Oil Alert; Low Oil Shutdown

Mainline Breaker; 3-Pole Kit

Hour Meter; Yes

Battery Requirement; 12-Volt

Weight; 490 Pounds

Dimensions; 37.3L x 21.0W x 23.9H inches

Warranty Information

Commercial Warranty; Cummins Onan 2-Year/2000 Hour Limited Warranty

Engine

Engine Brand; Kubota

Engine Size; 3 Cylinder 1124cc

Engine RPM; 1800

Cooling System; Liquid Cooled

Alternator

Alternator Type; 4-Pole Brushed

Frequency; 60 Hertz

Auto Voltage Regulation; Yes

Fuel

Fuel Type; No. 2 Diesel
