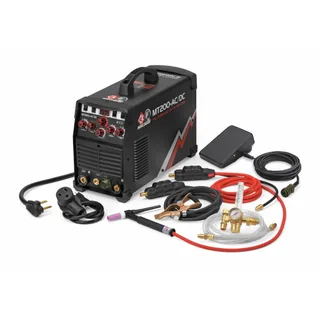

CK Worldwide MT200 AC/DC TIG Welder – 5-200A Amp Range

Depositing clean TIG beads on thin aluminum tubing, the CK Worldwide MT200 AC/DC TIG welder provides precision arc stability across a broad 5 to 200-amp output range. Motorsport fabricators and aerospace welders battle high-frequency arc wander and tungsten contamination when operating low-grade TIG powerheads on alternating current. This dual-voltage inverter platform features square-wave alternating current technology with adjustable AC balance control, stripping oxide layers from aluminum while focusing arc energy into deep root penetration.

A pulse frequency range up to 200 Hz constricts the arc cone, lowering total heat input to prevent warpage and burn-through on thin chrome-moly chassis tubes. High-frequency arc starting ignites the puddle without tungsten touch contact, eliminating weld contamination on critical X-ray quality joints. An included CK17 flex-head torch with Super-Flex cables reduces wrist strain during out-of-position roll cage welding, keeping technicians focused throughout long production shifts.

Key Engineering Features of CK Worldwide MT200

- 5-200A Operating Output Range: Delivers low-amperage arc starts at 5 amps for razor-thin sheet metal up to 200 amps for thick plate.
- Dual-Voltage 120V/240V Input Power: Runs on common 120V utility circuits or 240V shop outlets with included power adapter plugs.
- Adjustable AC Balance Control: Sets cleaning versus penetration ratios from 50 to 80 percent to optimize aluminum puddle clarity.
- Pulse TIG Frequency up to 200 Hz: Controls heat input to narrow the heat-affected zone and prevent burn-through on thin alloy sheets.
- High-Frequency Arc Initiation: Strikes an instant welding arc without scratching tungsten, preventing tungsten inclusions.
- Digital Microprocessor Interface: Displays exact amperage and cycle parameters for repeat weld procedure compliance.

Shop Floor Durability & Deposition Rates

Built for high-precision fabrication environments, this AC/DC TIG system combines laboratory arc control with jobsite portability.

- Inverter electronics deliver stable square-wave alternating current without high-voltage transformer hum or excessive electrical draw.
- The genuine CK Worldwide torch package features high-flex silicone leads that resist burning from hot metal spatter.
- Motorsport chassis builders and custom exhaust fabricators gain consistent root pass penetration without thermal shutoffs.

Plate Thickness Clearance & Field Portability

Operating from 120V or 240V input power, this 32-pound compact inverter welds up to 1/4-inch aluminum and 3/8-inch steel plate in a single pass while fitting inside mobile service truck toolboxes.

Warranty Coverage & Preventive Maintenance

- CK Worldwide backs the MT200 power source with a 3-Year factory warranty covering internal electronics and circuit boards.
- TIG torch and foot pedal components receive 1-Year manufacturer warranty protection.

Inspect gas lens diffusers weekly, maintain sharp 2 percent lanthanated tungsten grinds with dedicated wheels, and blow dry shop dust out of the cooling louvers every 100 operating hours. Order the CK Worldwide MT200 AC/DC TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
