Oil cooler plate gasket breakdown and variable valve timing actuator gear rattle disrupt high mileage commuter vehicles. The Chevrolet Pontiac LXV 1.6L Engine eradicates these chronic internal fluid leaks during fleet commercial long block repower procedures. Producing 108HP, this 1.6L 4-Cylinder engine demands manual oil gallery priming to protect dual cam phaser sprockets during initial startup.

Heavy duty ASTM A48 Class 35 gray cast iron forms the rigid deep-skirt engine block to suppress bore distortion under high thermal loads. This Chevrolet Pontiac engine core incorporates an induction-hardened cast nodular iron crankshaft supported by tri-metal bearings and stellite faced exhaust valves. Starter draw pulls 150A at 12V during initial cranking. The long block weighs 195 lbs across 36in length, 36in width, 36in height, with a 4.8 quarts oil capacity.

Key Features of Chevrolet Pontiac LXV

Fleet technicians buy Chevrolet Pontiac LXV remanufactured long block units to resolve severe valvetrain clatter during industrial engine rebuild overhauls. Multi-axis CNC machines hone the cast iron cylinders to exact micro-finish tolerances, establishing immediate piston ring seating.

- Casting number 688270904 on the right side of the block validates genuine vehicle application matching.
- Dual variable valve timing camshaft gears optimize fuel efficiency and exhaust emissions.
- DOHC 16-Valve aluminum cylinder head includes pre-installed multi layer steel head gaskets.
- Graphite coated hypereutectic aluminum pistons resist thermal expansion scuffing in cast iron bores.
- The LXV commercial core utilizes premium Viton front and rear crankshaft seals to eliminate oil leaks.
- Precision ground camshaft lobes ensure consistent valve lift across all operating engine speeds.
- High volume gerotor oil pump provides immediate pressure delivery to the cam phasers.
- Tri-metal rod and main bearings maintain elevated fatigue resistance under maximum load.

Dynamometer Validation Tolerance Verification

Dynamometer bench testing certifies 108HP at 6400 RPM and 105 ft-lbs torque at 4000 RPM under sustained load conditions. Oil gallery operating pressure measures 48 PSI at a continuous oil sump temp of 195°F. Cylinder compression registers 180 PSI across all four cylinders with maximum allowable variance restricted below 4%. Crankshaft main journal runout checks verify less than 0.0003in TIR across all bearing surfaces. This LXV long block engine maintains exhaust gas temp readouts below 1280°F during extended bench cycle validation runs.

Chassis Application Platform Matrix

Direct bolt-in fitment matches 2009 to 2011 Chevrolet Aveo, Aveo5, and Pontiac G3 models equipped with engine VIN code E. This power unit mounts direct into the GM T250 chassis platform, interfacing flush with factory 5-speed manual transaxles or 4-speed automatic transmissions without requiring bellhousing modifications or engine mount bracket repositioning.

Installation Protocols Maintenance Schedule

Cable operated throttle bodies require 4 lbs of linear tension for smooth return response. This long block is NOT engineered for earlier 2004 to 2008 Aveo models with non-VVT E-TEC II engines, nor does it fit 1.4L or 1.8L Cruze platforms due to distinct bellhousing patterns and cooling port configurations.

- Drain the initial break-in oil and replace the filter element after 500 miles or 20 hours.
- Inspect hydraulic lash adjusters for quiet operation upon reaching full operating coolant temperature.
- Replace the external timing belt and tensioner pulley assembly at standard 60,000-mile intervals.

Warranty Coverage Packaging Manifest

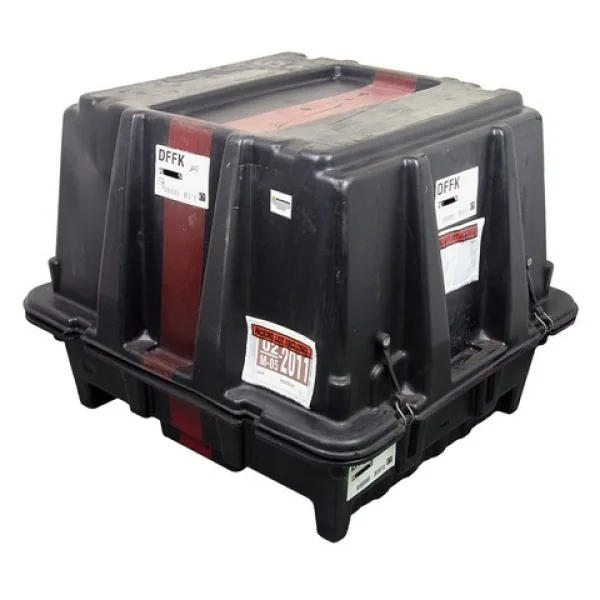

Backed by a comprehensive 3-Year 100,000-mile parts warranty, this rebuild adheres to strict Chevrolet Pontiac assembly standard protocols. The heavy duty shipping crate contains the complete long block assembly, steel oil pan, front timing cover, valve cover, oil pickup tube, and signed dynamometer test documentation.
