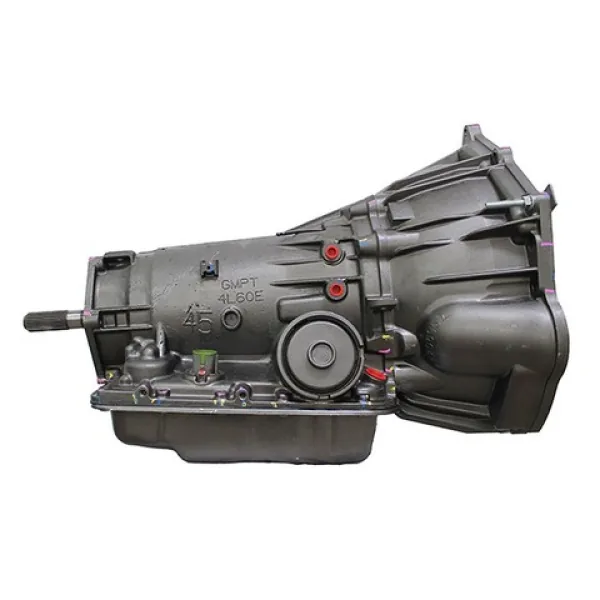

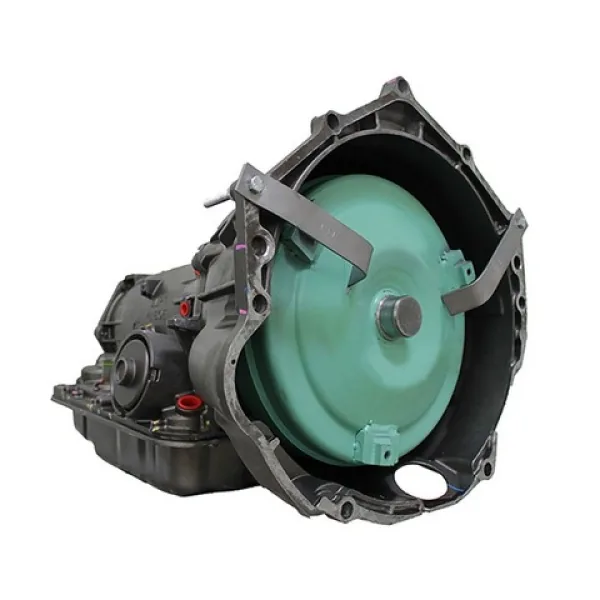

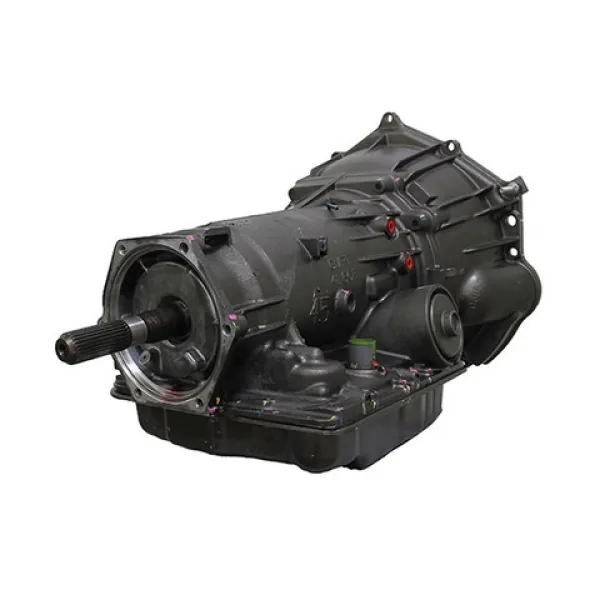

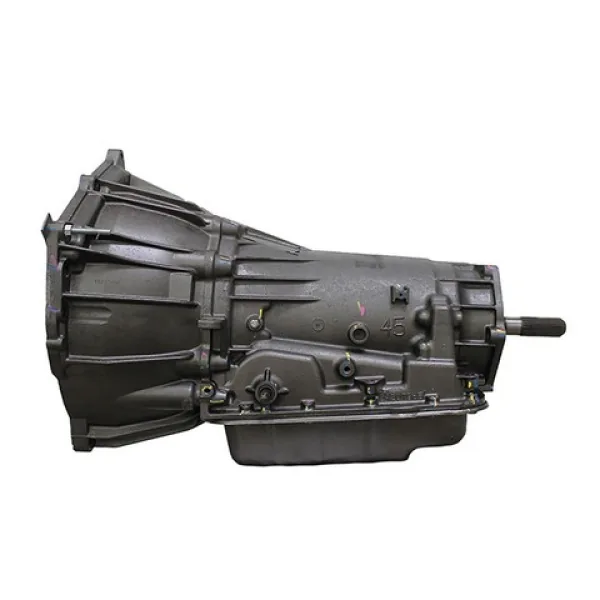

Cadillac Escalade 2005 Automatic Transmission 4-Speed 4L65E Remanufactured

Heavy trailer towing and hot summer mountain climbing demand consistent hydraulic transmission line pressure stability. This remanufactured Cadillac Escalade 4L65E transmission 10282T restores factory gear engagement for 2005 models with 6.0L Vortec HO LQ9 engines. Installers must flush the external transmission oil cooler and clear adaptation tables before releasing the sport utility vehicle.

Shot-peened A380 aluminum encloses the heavy longitudinal case, inspected for stress cracks along bellhousing and transfer case flanges with dye penetrant. Hardened five-pinion planetary gearsets and 4140 chromoly reaction sun shells transfer 345 horsepower without gear tooth spalling. Rebuilders install updated thirteen-vane oil pumps, heavy-duty 3-4 clutch packs, Kolene steel plates, and wide intermediate bands. New stator support bushings preserve fluid volume. The dry transmission weighs 168 lbs and ships inside a 36 by 22 by 20 inch crate.

Key Features of GM 4L65E

Fleet mechanics buy GM 4L65E transmissions to eliminate 3-4 clutch pack burn and sun shell stripping without paying inflated dealership pricing. This commercial remanufactured transmission assembly supplies durable towing capacity for Cadillac Escalade transmission replacement projects.

- Heavy-duty five-pinion planetary gear carriers distribute heavy engine torque to prevent gear tooth breakage.
- Hardened 4140 chromoly reaction sun shell prevents rear spline strip failure under heavy trailer towing.
- Raybestos GPZ seven-disc 3-4 friction clutch pack stops thermal burn and shift flare.
- Hydro-tested valve body bores hold 22 inHg on calibrated vacuum test benches.
- Balanced remanufactured torque converter eliminates driveline vibration and protects front pump drive bushings.
- Thirteen-vane oil pump rotor delivers steady hydraulic line pressure across all engine speeds.
- Reinforced forward accumulator piston seals prevent fluid cross-bleed during aggressive throttle kickdown.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured 4L65E gearbox to an automated AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 190 PSI in Drive and 240 PSI in Reverse at 1600 RPM. Electronic pulse-width solenoids modulate hydraulic circuits within 20 ms under computer diagnostics. Valve body passages hold 21 inHg vacuum on precision bench gauges. Dyno sensors confirm zero converter lockup clutch slip under heavy load simulations. Fluid testing at 180°F confirms proper hydraulic flow without case leaks.

Installation Directives Field Application Limits

Push and turn the torque converter inward until you verify three distinct clicks into the front pump drive gear lugs. Check engine dowel pins for burrs before pulling the bellhousing flat against the block. Do not buy this factory spec transmission for high-boost supercharged builds, drag racing, or extreme off-road mud bogging.

- Flush chassis radiator transmission cooler lines with heated solvent to clear foreign metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at operating temperature.
- Reset transmission adaptation registers using an advanced scan tool before highway test driving.

Nationwide Warranty Freight Manifest Details

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and valve body pressure loss. Your delivery crate contains a balanced torque converter, technician installation instructions, dyno pressure test certification, cooler flush tracking sheet, and a pre-paid freight bill of lading for prompt core return pickup.
