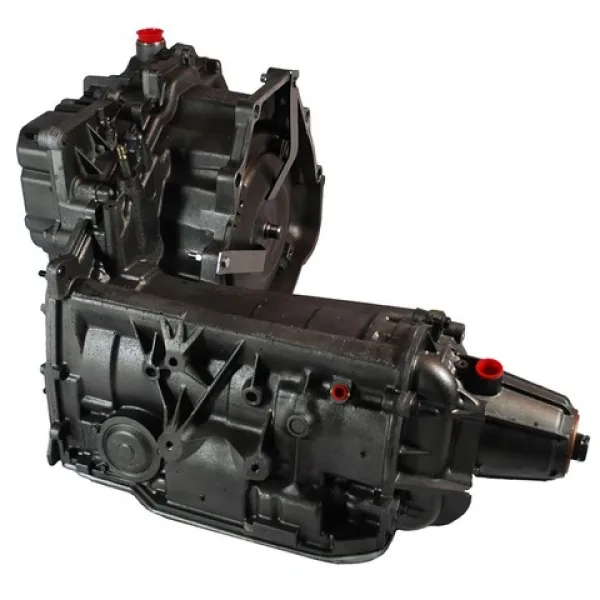

Cadillac Deville Seville 2004-2005 Automatic Transmission 4-Speed 4T80E Remanufactured

A 185 PSI forward line pressure curve delivers positive clutch pack clamping across 4.6L Northstar V8 power bands. This remanufactured Cadillac 4T80E transaxle 10640T matches 2004 to 2005 DeVille and Seville front-wheel-drive sedans. Installers must complete a high-temperature cooler flush and perform a computer shift adaptation reset before road testing to safeguard internal friction surfaces.

Solid A380 die-cast aluminum forms the heavy transaxle casing, inspected for stress cracks along rigid bottom pan mounts with fluorescent dye. Dual drive chains and heavy steel planetary carriers transfer Northstar V8 torque without stretch or carrier deflection. Rebuilders install updated pressure control solenoids, Kolene steel plates, and Raybestos high-energy friction packs. Replaced pump bushings preserve continuous fluid pressure. The dry unit weighs 295 lbs and ships inside a 40 by 28 by 26 inch crate.

Key Features of GM 4T80E

Technicians buy GM 4T80E transaxles to stop internal pressure decay and torque converter lockup shudder without paying steep dealer part pricing. This commercial remanufactured transmission assembly ensures positive torque multiplication and durable line pressure control for Cadillac DeVille transmission replacement projects.

- Heavy-duty dual drive chain assembly prevents link stretch and chain whip under high V8 torque.
- Upgraded TCC regulator valve sleeve stops converter clutch slip and friction shudder under load.
- Vacuum testing proves 22 inHg retention across all reamed spool valve bores.
- Balanced torque converter stops drivetrain shudder while protecting front pump drive gears from wear.
- Raybestos high-energy frictions resist high heat glaze during demanding highway driving.
- Hardened steel planet carrier gears withstand high-output Northstar acceleration without tooth spalling.
- New electronic pressure control solenoid guarantees factory line pressure modulation in all forward gears.

SuperFlow Dynamometer Load Test Telemetry

Technicians test every remanufactured 4T80E transaxle on a SuperFlow dynamometer through cold start and high temperature cycles. Telemetry confirms main line pressure reading 185 PSI in Drive and 245 PSI in Reverse at 1600 RPM. Electronic pressure control solenoids react within 20 ms with zero mechanical spool sticking. Calibrated vacuum gauges register 22 inHg across all hydraulic control passages. Automated testing logs zero lockup clutch slip under simulated heavy road loads. Fluid temperature sensors confirm normal thermal equilibrium without internal fluid bypass leaks.

Field Installation Directives Application Limits

Seat the heavy torque converter inward with three distinct clicks until the hub drops well past the bellhousing mating surface. Never force the transmission against the engine block using bellhousing bolts. Do not buy this factory-calibrated unit for turbo track racers, drift builds, or vehicles with altered final-drive differentials.

- Flush cooler lines with hot pressurized solvent to clear metallic clutch debris from previous failures.
- Fill with Dexron VI fluid until it spills from the check port at normal operating temperature.
- Perform an electronic adaptation reset procedure using a professional scan tool before road testing.

Standard Warranty Delivery Crate Manifest

This remanufactured transmission includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
