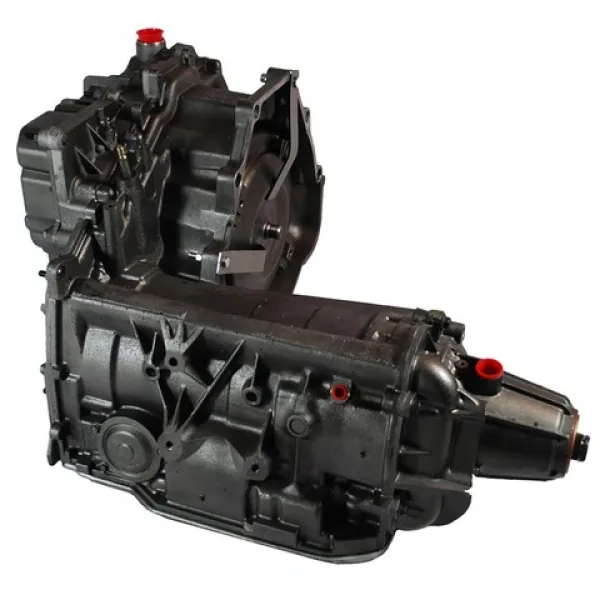

Cadillac Deville Seville Pontiac Bonneville 2003-2004 Automatic Transmission 4-Speed 4T80E Remanufactured

Slot this remanufactured GM 4T80E transaxle 10635T into your front-wheel-drive bay for immediate Northstar V8 torque restoration. Built for 2003 to 2004 Cadillac DeVille, Seville, and Pontiac Bonneville GXP models, this four-speed automatic restores positive gear transitions. You must clear transmission computer adaptation values and flush cooler circuits prior to putting this unit into daily road service.

Massive shot-peened A380 die-cast aluminum forms the structural transaxle case, inspected for stress cracks along rigid lower pan mounts with fluorescent dye. Dual drive chains and heavy planetary gear carriers transfer 275 and 300 horsepower without stretch or carrier deflection. Rebuilders install updated TCC regulator sleeves, Kolene steel plates, and Raybestos high-energy friction packs. Replaced pump stator bushings maintain hydraulic line pressure. The dry unit weighs 295 lbs and ships inside a 40 by 28 by 26 inch crate.

Key Features of GM 4T80E

Professional repair facilities buy GM 4T80E transaxle assemblies to correct delayed drive engagement and TCC slip without facing steep dealership pricing. This commercial remanufactured transmission assembly provides dependable power transfer for your Pontiac Bonneville GXP replacement project.

- Heavy-duty dual drive chain assembly prevents link stretch and chain whip under high V8 torque.
- Upgraded TCC regulator valve sleeve stops converter clutch slip and friction shudder under load.
- Vacuum testing proves 22 inHg retention across all reamed spool valve bores.
- Balanced torque converter stops drivetrain shudder while protecting front pump drive gears from wear.
- Raybestos high-energy frictions resist high heat glaze during demanding highway driving.
- Hardened steel planet carrier gears withstand high-output Northstar acceleration without tooth spalling.
- New electronic pressure control solenoid guarantees factory line pressure modulation in all forward gears.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured transaxle to an AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 185 PSI in Drive and 245 PSI in Reverse at 1600 RPM. Electronic shift solenoids actuate valve passages within 22 ms under live computer diagnostics. Hydro-testing proves a steady vacuum hold of 21 inHg on all reamed valve body ports. Dyno computer sensors verify zero converter clutch slip under loaded test programs. Fluid testing at 180°F confirms proper hydraulic flow without case leaks.

Field Assembly Rules Application Limits

Seat the heavy torque converter inward with three distinct clicks until the hub drops well past the bellhousing mating surface. Never force the transmission against the engine block using bellhousing bolts. Do not buy this factory-calibrated unit for turbo track racers, drift builds, or vehicles with altered final-drive differentials.

- Flush cooler lines with hot pressurized solvent to clear metallic clutch debris from previous failures.
- Fill with Dexron VI fluid until it spills from the check port at normal operating temperature.
- Perform an electronic adaptation reset procedure using a professional scan tool before road testing.

Nationwide Warranty Freight Manifest Details

Your purchase includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and internal hydraulic control failure. The heavy wood crate holds a balanced torque converter, technician installation checklist, dynamometer test pass certificate, cooler flush verification card, and a pre-paid core return freight bill for prompt return transit.
