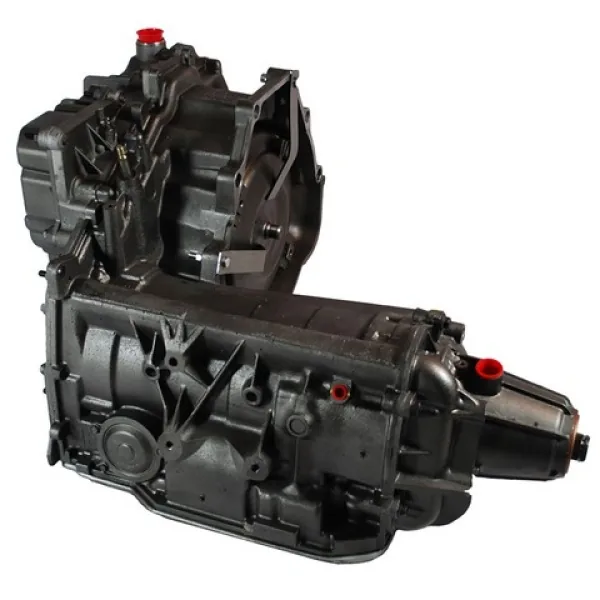

Cadillac Deville Eldorado Seville 1994-1999 Automatic Transmission 4-Speed 4T80E Remanufactured Style-B

Does harsh converter clutch slip and delayed forward engagement compromise your luxury Cadillac sedan? Fix that transmission slipping with this remanufactured Cadillac 4T80E Style-B transaxle built for 1994 to 1999 4.6L Northstar V8 models carrying tag 10627T. Technicians must perform a heated cooler line flush and clear shift adaptives prior to initial road testing.

High-density A380 die-cast aluminum forms the transaxle case, inspected for hairline differential housing cracks using non-destructive dye testing. Hardened steel planet gears and dual drive sprockets handle Northstar V8 torque without chain stretch or tooth pitting. We install upgraded TCC regulator valves, reamed boost valve sleeves, Kolene steel plates, and Raybestos friction packs. Replaced pump bushings preserve continuous fluid pressure. The dry unit weighs 295 lbs and ships inside a 40 by 28 by 26 inch crate.

Key Features of GM 4T80E

Independent repair shops buy GM 4T80E transmission assemblies to resolve converter shudder and delayed shifts without paying inflated dealer pricing. This commercial remanufactured transmission assembly provides smooth ratio stepping for Cadillac Eldorado transmission replacement projects.

- Heavy-duty dual drive chain setup eliminates chain stretch under high V8 torque load.
- Upgraded Sonnax TCC regulator sleeve fixes torque converter shudder and lockup clutch slippage.
- Vacuum testing confirms 22 inHg seal across all reamed spool valve bores.
- Balanced remanufactured torque converter stops driveline vibration and prevents front pump bushing wear.
- Raybestos high-energy friction plates resist thermal glaze under demanding stop-and-go commuter traffic.
- Hardened planetary carrier gears handle heavy luxury sedan curb weight without tooth spalling.
- New EPC pressure control solenoid provides accurate line pressure modulation across all throttle inputs.

AIDCO Bench Dynamometer Pressure Metrics

Every remanufactured 4T80E transaxle runs on an automated AIDCO dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 185 PSI in Drive and 245 PSI in Reverse at 1600 RPM. Electronic pressure control solenoids modulate hydraulic passages within 20 ms under computer diagnostics. Valve body passages hold 21 inHg vacuum during static bench drawdown tests. The test software logs zero converter clutch slip at cruising speeds. Fluid temperatures hold steady at 175°F.

Field Installation Directives Application Limits

Push the torque converter inward while spinning the hub to ensure complete engagement into the oil pump drive lugs. Check engine alignment dowels for burrs prior to pulling the transaxle against the engine block. Do not buy this factory unit for supercharged track racers or custom engine swaps.

- Flush chassis radiator transmission cooler lines with heated solvent to clear trapped metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at normal operating temperature.
- Reset transmission shift adaptives using an advanced scan tool before highway road testing.

Nationwide Warranty Freight Manifest Inclusions

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical breakage and internal hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass printout, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
