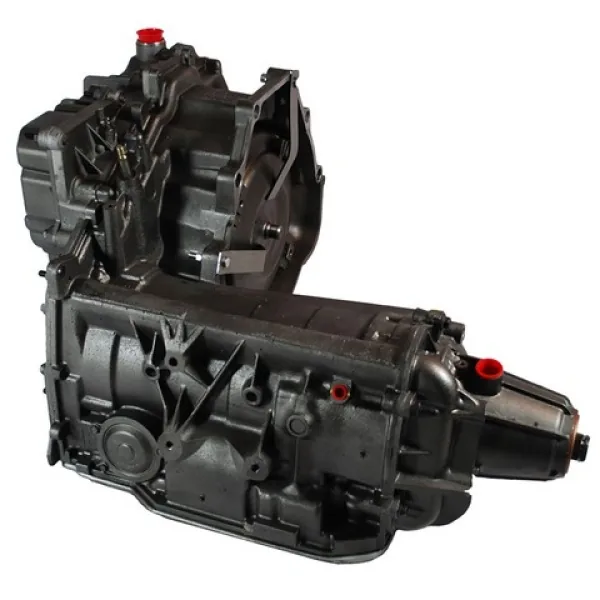

Cadillac Deville 2000-2002 Automatic Transmission 4-Speed 4T80E Remanufactured Style-A

Slot this remanufactured Cadillac Deville 4T80E transaxle 10628T into your front-wheel-drive bay for restored Northstar V8 torque handling. Built for 2000 to 2002 models requiring Style-A architecture, this heavy-duty four-speed unit cures converter clutch slip. You must clear transmission computer adaptation values and flush cooler circuits prior to putting this unit into daily road service.

Massive shot-peened A380 die-cast aluminum forms the structural transaxle case, inspected for stress cracks along rigid lower pan mounts with fluorescent dye. Dual drive chains and heavy planetary gear carriers transfer 275-horsepower V8 torque without stretch or carrier deflection. Rebuilders install updated TCC regulator sleeves, Kolene steel plates, and Raybestos high-energy friction packs. Replaced pump stator bushings maintain hydraulic line pressure. The dry unit weighs 295 lbs and ships inside a 40 by 28 by 26 inch crate.

Key Features of GM 4T80E

Professional repair facilities buy GM 4T80E transaxle assemblies to correct delayed drive engagement and TCC slip without facing steep dealership pricing. This commercial remanufactured transmission assembly provides dependable power transfer for your Cadillac Deville transmission replacement project.

- Heavy-duty dual drive chain assembly prevents link stretch and chain whip under high V8 torque.
- Upgraded TCC regulator valve sleeve stops converter clutch slip and friction shudder under load.
- Vacuum testing proves 22 inHg retention across all reamed spool valve bores.
- Balanced torque converter stops drivetrain shudder while protecting front pump drive gears from wear.
- Raybestos high-energy frictions resist high heat glaze during demanding highway driving.
- Hardened steel planet carrier gears withstand high-output Northstar acceleration without tooth spalling.
- New electronic pressure control solenoid guarantees factory line pressure modulation in all forward gears.

SuperFlow Dynamometer Load Test Telemetry

Technicians test every remanufactured 4T80E transaxle on a SuperFlow dynamometer through cold start and high temperature cycles. Telemetry confirms main line pressure reading 185 PSI in Drive and 245 PSI in Reverse at 1600 RPM. Electronic pressure control solenoids react within 20 ms with zero mechanical spool sticking. Calibrated vacuum gauges register 22 inHg across all hydraulic control passages. Automated testing logs zero lockup clutch slip under simulated heavy road loads. Fluid temperature sensors confirm normal thermal equilibrium without internal fluid bypass leaks.

Field Assembly Rules Application Limits

Seat the heavy torque converter inward with three distinct clicks until the hub drops well past the bellhousing mating surface. Never force the transmission against the engine block using bellhousing bolts. Do not buy this factory-calibrated unit for turbo track racers, drift builds, or vehicles with altered final-drive differentials.

- Flush cooler lines with hot pressurized solvent to clear metallic clutch debris from previous failures.
- Fill with Dexron VI fluid until it spills from the check port at normal operating temperature.
- Perform an electronic adaptation reset procedure using a professional scan tool before road testing.

Warranty Terms Shipping Contents Details

This remanufactured assembly includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakages and hydraulic valve body failures. The reinforced wooden crate contains a balanced torque converter, step-by-step installation instructions, dynamometer test pass printout, cooler flush verification card, and a pre-paid core return freight bill for easy transport.
