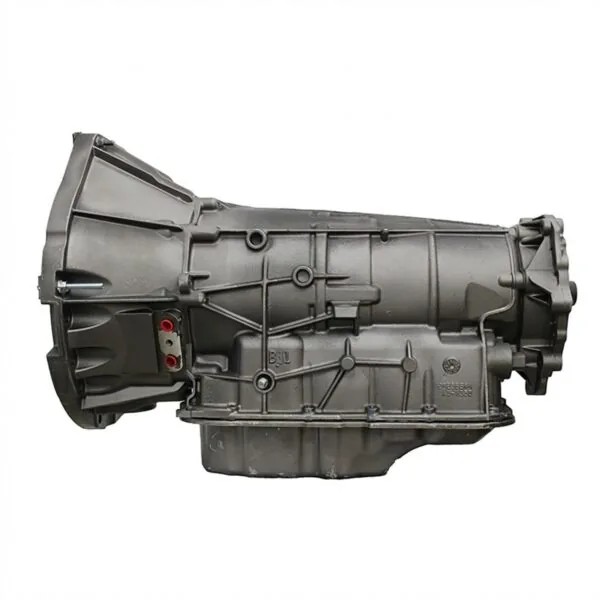

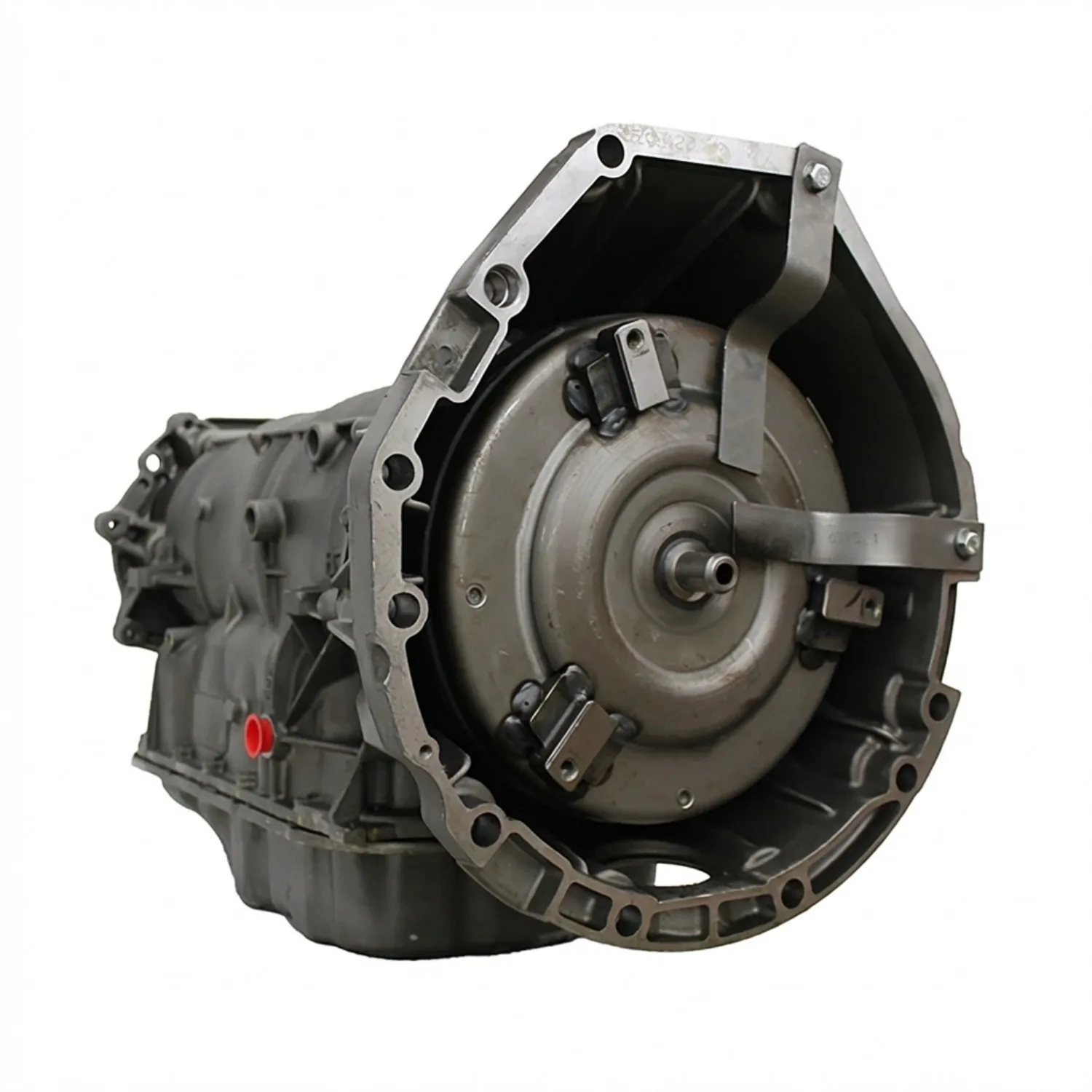

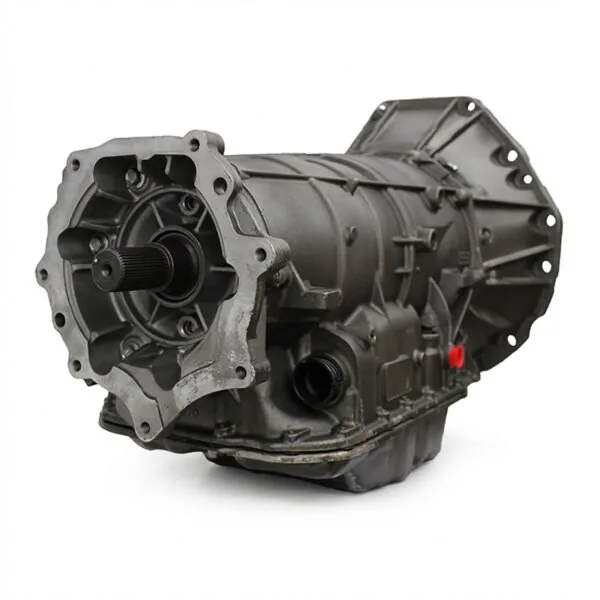

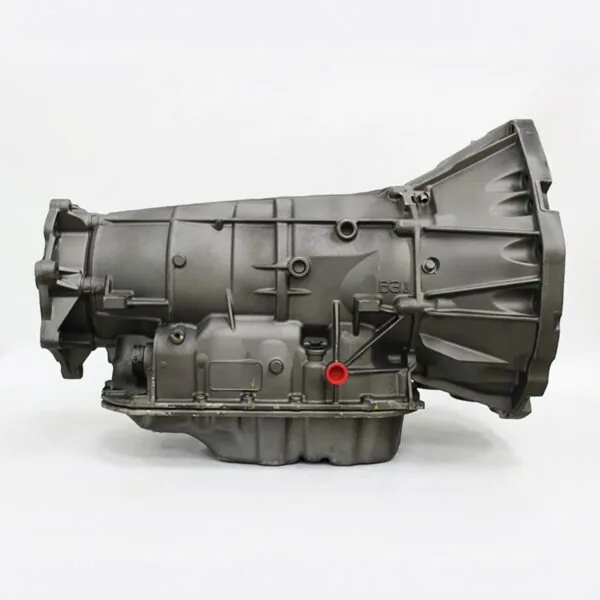

Cadillac CTS 2010 Automatic Transmission AWD 6L50 3.6L Luxury Remanufactured

Harsh 1-2-3 shift slip and sudden loss of reverse gear indicate severe wave plate failure inside your Cadillac. Replace that broken unit with this remanufactured CTS 6L50 Luxury transmission 12775T built for 2010 3.6L LLT all-wheel-drive sedans. Technicians must perform a heated cooler line flush and clear shift adaptives right after installation.

Shot-peened A380 die-cast aluminum forms the longitudinal casing, inspected with fluorescent dye for stress cracks along transfer case mounting flanges. Four planetary gear carriers transfer direct-injected V6 torque without carrier deflection or gear tooth spalling. Rebuilders install shot-peened 1-2-3-4 wave plates, Kolene salt-bath nitrided steel plates, and Raybestos GPZ friction discs. Precision stator bushings eliminate internal hydraulic cross-leaks. The dry transmission weighs 215 lbs and ships inside a 38 by 26 by 24 inch crate.

Key Features of GM 6L50

Independent repair shops buy GM 6L50 transmissions to stop harsh shift flares without paying inflated dealership parts pricing. This commercial remanufactured transmission assembly provides positive all-wheel-drive torque distribution for Cadillac CTS Luxury transmission replacement projects.

- Heavy-duty 1-2-3-4 clutch wave plate eliminates premature fatigue fracture under heavy engine torque.
- Updated pressure regulator sleeve prevents line pressure drops that trigger harsh shifts.
- Vacuum testing guarantees minimum 22 inHg seal across all control circuits.
- Balanced remanufactured torque converter prevents front stator bushing galling under heavy acceleration.
- Raybestos GPZ friction discs prevent thermal breakdown during stop-and-go commuter traffic driving.
- Hardened transfer case splines handle heavy all-wheel-drive curb weight without tooth strip damage.
- Refurbished internal TEHCM module ensures factory 20 ms response timing across all gears.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured transmission to an AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 180 PSI in Drive and 240 PSI in Reverse at 1600 RPM. Electronic shift solenoids actuate valve passages within 20 ms under live computer diagnostics. Hydro-testing proves a steady vacuum hold of 21 inHg on all reamed valve body ports. Dyno computer sensors verify zero converter clutch slip under loaded test programs. Fluid testing at 180°F confirms proper hydraulic flow without case leaks.

Installation Directives Field Application Limits

Turn and push the torque converter until you verify three distinct clicks into the pump drive gear lugs. Avoid drawing the transmission against the engine block with bolts before dowels seat. Do not buy this factory spec transmission for turbocharged builds, nitrous setups, or track drag competition.

- Flush chassis radiator heat exchangers with dedicated solvent to remove suspended metal dust.
- Fill with approved Dexron VI fluid while monitoring fluid temperature with diagnostic tools.
- Reset transmission shift adaptation data using a diagnostic scan tool before highway driving.

Nationwide Warranty Freight Manifest Details

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and valve body pressure loss. Your delivery crate contains a balanced torque converter, technician installation instructions, dyno pressure test certification, cooler flush tracking sheet, and a pre-paid freight bill of lading for prompt core return pickup.
