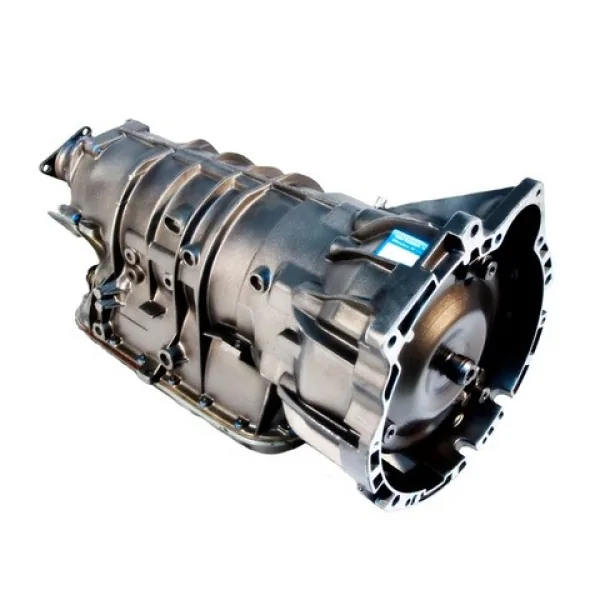

Cadillac CTS 2003 Automatic Transmission 5-Speed 5L40E Remanufactured Style-A

Crisp five-speed ratio staging and firm lockup return to your early Sigma sport sedan. This remanufactured Cadillac CTS 5L40E transmission 10709T provides exact hydraulic calibration for 2003 3.2L LA3 models. You must complete a high-temperature cooler line flush and execute a transmission adaptation reset before performing initial road tests to protect internal hydraulic circuits.

Shot-peened A380 die-cast aluminum forms the longitudinal casing, inspected with magnetic particle dye for hairline bellhousing stress cracks. Hardened planetary pinions mesh with reaction sun gears to manage 3.2L V6 torque without excessive gear lash. We install oversized Sonnax pressure regulator valve sleeves, TCC control valves, Kolene steel plates, and high-energy BorgWarner friction packs. Renewed stator bushings restore internal fluid balance. The dry transmission weighs 162 lbs and ships inside a 36 by 24 by 22 inch crate.

Key Features of GM 5L40E

Independent repair shops buy GM 5L40E transmission units to restore positive forward engagement without paying high dealership parts pricing. This commercial remanufactured transmission assembly provides durable gear selection for Cadillac CTS transmission replacement projects.

- Sonnax anodized aluminum pressure regulator sleeve stops bore erosion and hydraulic pressure decay.
- Upgraded TCC regulator valve sleeve eliminates torque converter clutch slip and friction shudder.
- Hydro-tested valve body circuits hold 22 inHg vacuum during decay leak checks.
- Balanced remanufactured torque converter eliminates driveline vibration and prevents front pump bushing wear.
- BorgWarner friction clutch plates ensure solid torque transfer under continuous highway cruising conditions.
- Hardened sun gear drive shells eliminate internal spline strip failures during full throttle downshifts.
- Precision stator support bushings maintain consistent hydraulic fluid feed to the converter clutch.

AIDCO Bench Dynamometer Pressure Metrics

Every completed 5L40E transmission undergoes live computerized testing on our AIDCO test bench under full working temperatures. Certified technicians monitor main line pressures reaching 190 PSI in forward ranges and 260 PSI in Reverse under load. Pulse-width modulated shift solenoids show sharp mechanical response times within 24 ms. Valve body hydraulic circuits sustain steady vacuum levels above 21 inHg. Dyno instrumentation confirms zero lockup clutch slippage during loaded highway simulation cycles. Output seal surfaces spin with zero detectable runout under load.

Field Installation Directives Application Limits

Push the torque converter inward while rotating the hub until you verify three distinct clicks. Make sure engine alignment dowels enter the bellhousing straight without draw bolt force. Do not buy this factory replacement unit for turbocharged track racers, drift cars, or nitrous builds.

- Flush chassis transmission oil cooler passages with heated solvent to remove trapped friction particles.
- Fill with approved Texaco ETL-7045E or Dexron VI fluid at 40°C pan temperature.
- Reset transmission adaptation registers using an advanced scan tool before highway test driving.

Standard Warranty Delivery Crate Manifest

This remanufactured transmission includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
