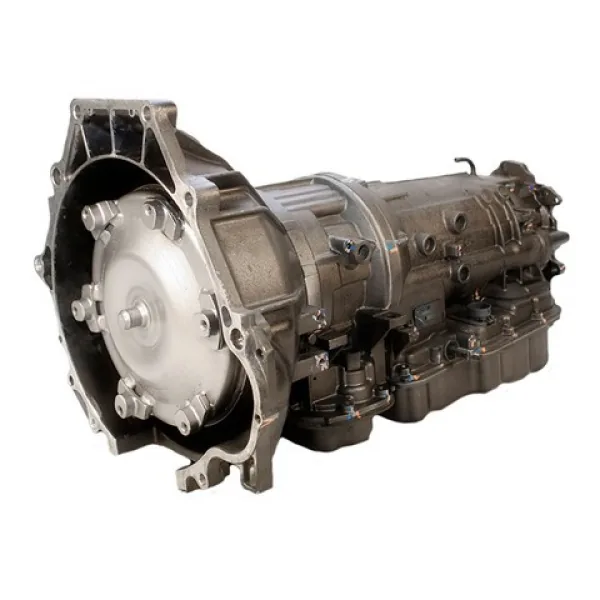

Cadillac Catera 1999-2001 Automatic Transmission 4-Speed 4L30E Remanufactured

Spool-valve line pressure modulation and reaction carrier planetary reduction deliver positive torque transfer across European sedan cruising speeds. This remanufactured Cadillac Catera 4L30E transmission 10139T provides direct mechanical replacement for 1999 to 2001 models with 3.0L V6 engines. You must flush cooler lines with heated solvent and reset adaptation values before completing your initial road evaluation.

Shot-peened A380 die-cast aluminum forms the dual-section longitudinal casing, inspected through non-destructive dye penetrant for housing stress fractures. Forged steel planetary carriers handle 3.0L engine torque without gear deflection or spline wear. We install upgraded pressure regulator valves, heavy-duty intermediate bands, Kolene steel plates, and high-energy BorgWarner friction packs. Replaced pump stator bushings maintain constant line pressure. The dry transmission weighs 145 lbs and ships inside a 34 by 22 by 20 inch crate.

Key Features of GM 4L30E

Technicians buy GM 4L30E transmission units to eliminate delayed drive engagement and harsh shift flares without paying extreme dealer pricing. This commercial remanufactured transmission assembly provides refined gear changes and dependable torque delivery for your Cadillac Catera transmission replacement project.

- Oversized pressure regulator valve sleeve stops hydraulic pressure spikes that crack clutch cylinders.
- Re-machined valve body passages hold 22 inHg during calibrated vacuum decay bench tests.
- Dynamically balanced remanufactured torque converter stops driveline vibration and protects front pump bushings.
- High-energy friction plates resist extreme thermal glaze during prolonged high-speed highway cruising.
- Hardened intermediate band provides positive mechanical grip to eliminate second gear shift slip.
- Updated forward accumulator piston seals prevent hydraulic cross-bleed during wide-open throttle passing downshifts.
- Precision stator support bushings ensure uninterrupted hydraulic fluid feed to the converter clutch.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians subject every remanufactured 4L30E gearbox to hot and cold testing cycles on a SuperFlow transmission dyno. Pressure gauges verify main hydraulic line pressures holding 195 PSI in Drive and 245 PSI in Reverse at 1800 RPM. Electronic shift solenoids switch circuits within 24 ms without spool valve hang. Valve body circuits hold 20 inHg vacuum on precision bench gauges. The test program validates zero torque converter clutch slip at cruising speed. Thermal imaging cameras confirm leak-free front pump and rear extension seals under load.

Field Installation Directives Negative Filter

Spin the torque converter inward through three positive gear drops until the converter clears the front bellhousing face. Check engine block dowels for corrosion before bolting the bellhousing flat. Do not buy this factory calibrated unit for supercharged builds, manual swaps, or track race chassis.

- Flush cooler lines with hot chemical solvent to clear burned friction clutch sediment.
- Fill with approved Dexron III fluid through the dipstick tube at operating temperature.
- Clear transmission adaptation registers using diagnostic software before taking the vehicle on highways.

Nationwide Warranty Freight Crate Contents

Your purchase brings a nationwide 3-Year/100,000-Mile warranty protecting against internal mechanical damage and hydraulic pressure control faults. The sturdy wooden freight crate houses a balanced torque converter, technician installation guide, dynamometer inspection pass slip, cooler flush checklist, and a pre-printed core return bill of lading for simple return transit.
