Buick Oldsmobile Pontiac Universal Models Automatic Transmission 4-Speed 4T60E Remanufactured

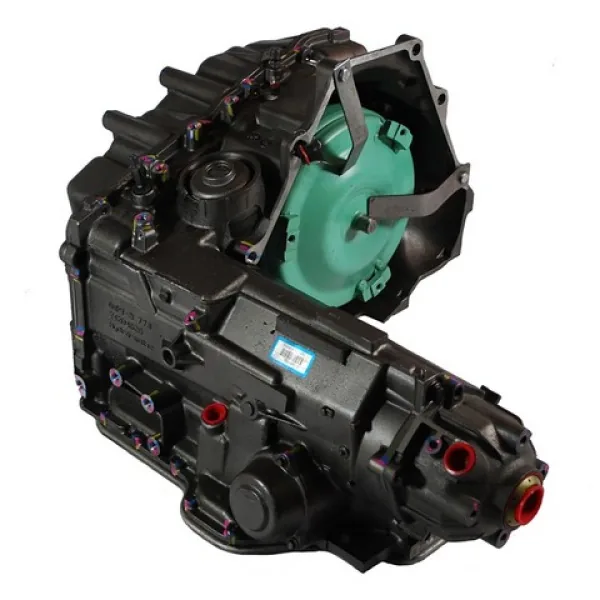

Spool-valve line pressure modulation and reaction carrier planetary reduction deliver positive torque transfer across broad commuter acceleration curves. This remanufactured 4T60E universal transaxle 10527T provides direct mechanical replacement for vintage Buick, Oldsmobile, and Pontiac front-wheel-drive sedans. You must flush cooler lines with heated solvent and verify TV cable tension before road testing.

Shot-peened A380 die-cast aluminum forms the rigid outer case, inspected through non-destructive dye penetrant for transaxle housing stress fractures. Forged steel planetary carriers handle GM V6 engine torque without gear deflection or spline wear. We install upgraded boost valve sleeves, calibrated vacuum modulators, Kolene steel plates, and high-energy BorgWarner friction packs. Replaced pump stator bushings maintain constant line pressure. The dry transmission weighs 195 lbs and ships inside a 36 by 24 by 22 inch crate.

Key Features of GM 4T60E

Technicians buy GM 4T60E transmission units to eliminate delayed forward gear engagement without paying extreme dealer pricing. This commercial remanufactured transmission assembly provides refined gear changes and dependable torque delivery for your Buick universal transmission replacement project.

- Updated pressure boost valve assembly restores main line pressure balance across all throttle inputs.
- Calibrated vacuum modulator delivers accurate shift timing based on real-time engine vacuum load.
- Reamed valve body passages hold twenty-two inches of mercury during calibrated vacuum tests.
- Dynamically balanced remanufactured torque converter stops driveline vibration and protects front pump bushings.
- High-energy friction plates resist extreme thermal glaze during prolonged highway commuting.
- Hardened intermediate band provides positive mechanical grip to eliminate second gear shift slip.
- Precision drive chain sprockets prevent link bind and preserve smooth power delivery.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians subject every remanufactured 4T60E transaxle to hot and cold testing cycles on a SuperFlow transmission dyno. Pressure gauges verify main hydraulic line pressures holding 165 PSI in Drive and 225 PSI in Reverse at 1500 RPM. Mechanical modulator shifts actuate crisp gear transitions across manifold vacuum steps from zero to eighteen inches. Valve body circuits hold twenty inches of mercury vacuum on precision bench gauges. The test program validates zero torque converter clutch slip at cruising speed. Thermal imaging cameras confirm leak-free front pump and drive axle seals under load.

Field Installation Directives Negative Filter

Spin the torque converter inward through three positive gear drops until the converter clears the front bellhousing face. Check engine block dowels for corrosion before bolting the bellhousing flat. Do not buy this factory calibrated unit for supercharged builds, manual swaps, or track race chassis.

- Flush cooler lines with hot chemical solvent to clear burned friction clutch sediment.
- Fill with approved Dexron fluid through the fill port at operating temperature.
- Adjust throttle valve cable geometry to factory specifications prior to highway road testing.

Nationwide Warranty Freight Crate Contents

Your purchase brings a nationwide 3-Year/100,000-Mile warranty protecting against internal mechanical damage and hydraulic pressure control faults. The sturdy wooden freight crate houses a balanced torque converter, technician installation guide, dynamometer inspection pass slip, cooler flush checklist, and a pre-printed core return bill of lading for simple return transit.
