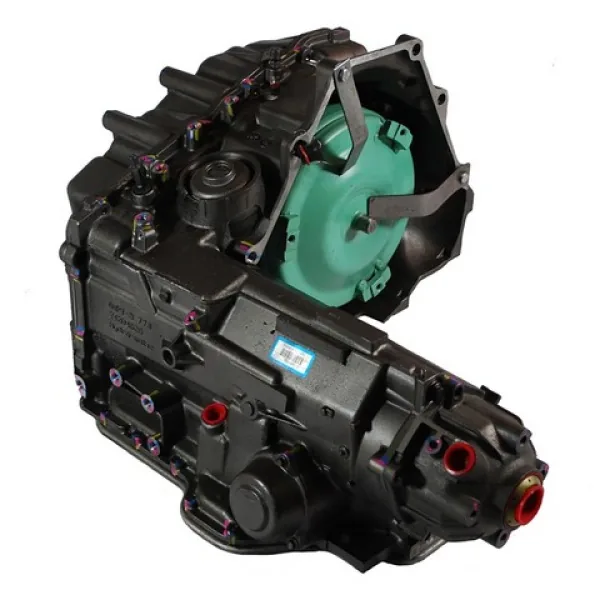

Buick Skylark Pontiac Grand Am 1994 Automatic Transmission 4-Speed 4T60E Remanufactured Style-B

Does delayed forward engagement and slipping intermediate band shifts compromise your daily driving? Solve that hydraulic line pressure loss with this remanufactured 1994 GM 4T60E transaxle 10535T built for 2.3L and 3.1L GM N-body models. Technicians must perform a chemical cooler flush and set TV cable geometry before road testing to preserve clutches.

Shot-peened A380 die-cast aluminum forms the compact transaxle housing, inspected for stress cracks along bellhousing bolt bosses using dye penetrant. Hardened planetary pinions mesh against reaction sun gears to manage four-cylinder and V6 engine torque without tooth deflection. Rebuilders install updated boost valve sleeves, calibrated modulators, Kolene steel plates, and BorgWarner friction packs. Precision drive sprocket bearings eliminate chain whip. The dry unit weighs 185 lbs and ships inside a 36 by 24 by 22 inch crate.

Key Features of GM 4T60E

Technicians buy GM 4T60E transaxles to stop delayed forward gear engagement without paying steep dealer part pricing. This commercial remanufactured transmission assembly ensures positive torque multiplication and durable line pressure control for Pontiac Grand Am transmission replacement projects.

- Updated pressure boost valve assembly restores main line pressure balance across all throttle inputs.
- Calibrated vacuum modulator delivers accurate shift timing based on real-time engine vacuum load.
- Reamed valve body bores hold 22 inHg during calibrated vacuum test bench checks.
- Balanced remanufactured torque converter eliminates driveline vibration and protects front pump drive gears.
- BorgWarner friction clutch plates maintain solid torque transfer under continuous highway driving cycles.
- Hardened intermediate band delivers positive mechanical grip to stop second gear shift slip.
- Precision drive chain sprockets prevent link bind and preserve smooth power delivery.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test every remanufactured 4T60E transaxle on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 165 PSI in Drive and 225 PSI in Reverse at 1500 RPM. Mechanical modulator shifts actuate crisp gear transitions across manifold vacuum steps from zero to eighteen inches. Re-machined valve body passages hold 21 inHg vacuum during static bench drawdown tests. Dynamometer sensors verify zero converter clutch slip at cruising speed. Fluid temperatures hold steady at 175°F.

Field Installation Directives Negative Filter

Spin the torque converter inward through three positive gear drops until the hub clears the bellhousing face. Check engine block dowels for corrosion before bolting the transaxle flat to the block. Do not buy this vacuum-modulated transaxle for custom turbo swaps, race builds, or manual conversions.

- Flush cooler lines with hot chemical solvent to clear burned friction clutch sediment.
- Fill with approved Dexron fluid while verifying engine manifold vacuum signal to modulator.
- Adjust throttle valve cable geometry to factory specifications prior to highway road testing.

Nationwide Warranty Freight Crate Contents

Your purchase brings a nationwide 3-Year/100,000-Mile warranty protecting against internal mechanical damage and hydraulic pressure control faults. The sturdy wooden freight crate houses a balanced torque converter, technician installation guide, dynamometer inspection pass slip, cooler flush checklist, and a pre-printed core return bill of lading for simple return transit.
