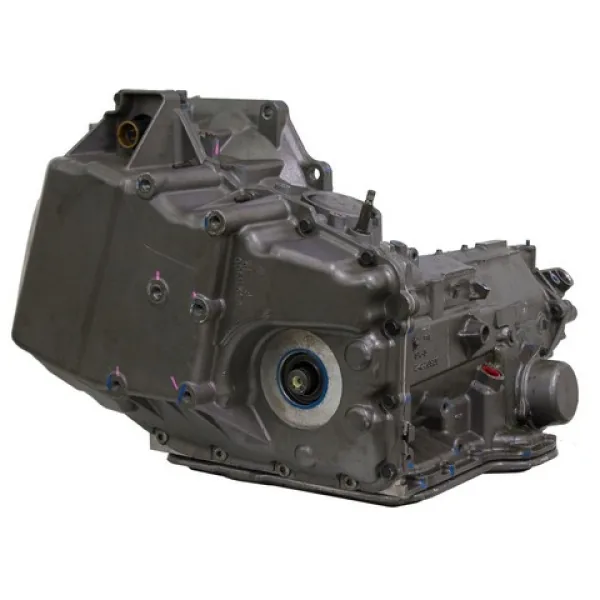

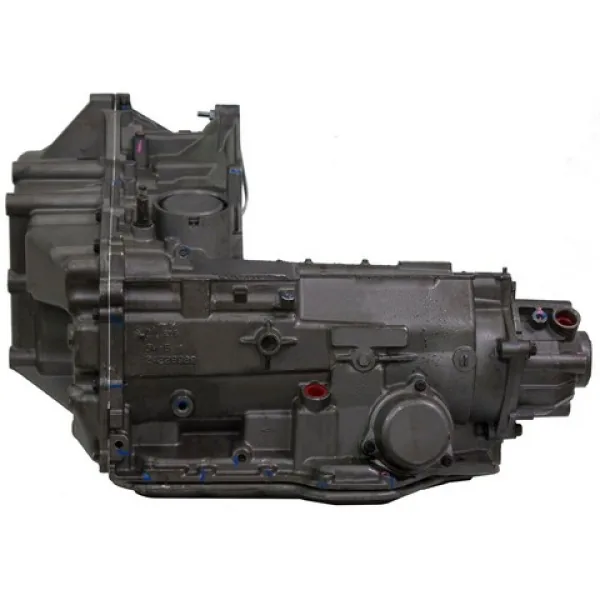

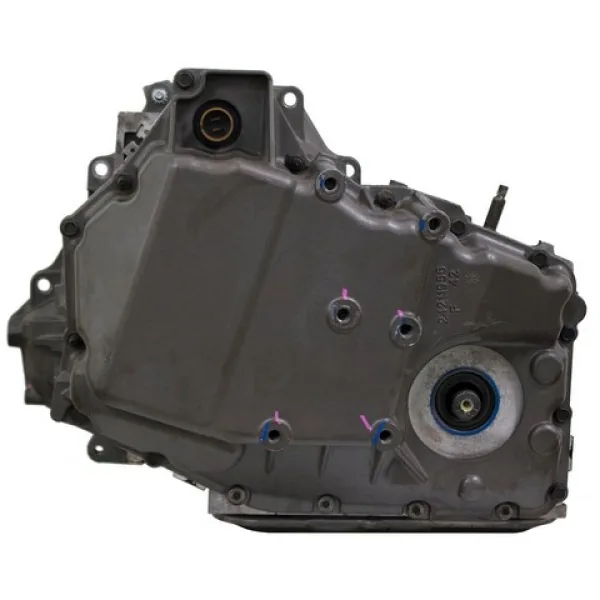

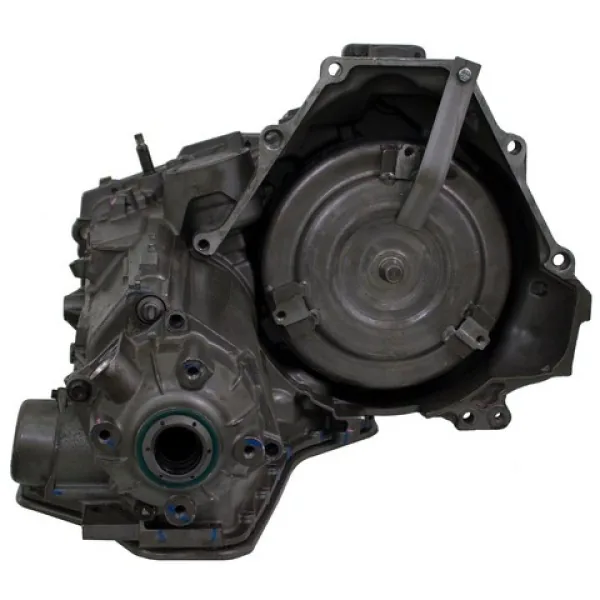

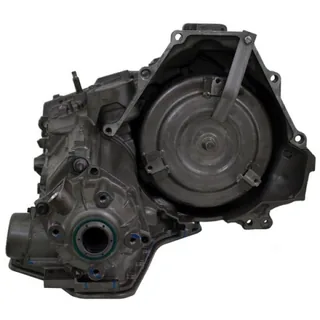

Buick Rendezvous 2007 Automatic Transmission 4-Speed 4T65E Remanufactured Style-B

Bolt this remanufactured Buick Rendezvous 4T65E transaxle 10615T directly to your 3.5L LX9 engine block to restore dependable crossover performance. Engineered for 2007 GM U-body platforms, this front-wheel-drive unit eliminates common actuator bore pressure bleed. Technicians must perform a chemical cooler flush and clear computer shift adaptives before road testing to prevent clutch glazing.

Shot-peened A380 die-cast aluminum forms the main case, inspected for hairline differential cracks with fluorescent penetrant. Hardened planetary pinions handle 3.5L V6 torque without gear tooth pitting or carrier twist. Rebuilders install Sonnax actuator feed limit sleeve kits, upgraded TCC regulator valves, Kolene steel plates, and Raybestos friction packs. Replaced pump bushings preserve continuous fluid volume. The dry transaxle weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of Buick 4T65E

Fleet technicians buy Buick 4T65E transaxles to cure P1811 trouble codes without paying inflated local dealership pricing. This commercial remanufactured transmission assembly ensures reliable torque transfer for Buick Rendezvous transmission replacement projects.

- Sonnax anodized aluminum AFL sleeve stops hydraulic pressure loss that triggers maximum adapt shifts.
- Upgraded TCC regulator valve sleeve eliminates torque converter clutch slip and friction shudder.
- Re-machined valve body passages hold 22 inHg on precision vacuum test stands.
- Balanced remanufactured torque converter eliminates drivetrain vibration and protects front pump drive gears.
- Raybestos high-energy friction plates resist thermal glaze under demanding stop-and-go commuter traffic.
- Hardened fourth gear clutch hub prevents spline strip failure under heavy highway throttle input.
- New EPC pressure control solenoid delivers precise line pressure modulation across all throttle angles.

AIDCO Bench Dynamometer Pressure Metrics

Every rebuilt 4T65E transaxle runs on an automated AIDCO dynamometer through cold start and elevated operating temperatures. Pressure gauges register line pressure holding 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic shift solenoids switch hydraulic circuits within 22 ms under computer diagnostics. Valve body hydraulic passages hold 21 inHg vacuum during static bench drawdown tests. The dyno computer logs zero converter clutch slip at cruising speed. Fluid temperatures hold steady at 175°F.

Field Installation Protocols Negative Filter

Push the torque converter inward while spinning the hub until you verify three distinct clicks into the oil pump lugs. Check engine dowel pins for burrs before pulling the bellhousing flat against the block. Do not buy this factory unit for supercharged builds, drift conversions, or nitrous setups.

- Flush chassis radiator transmission cooler lines with heated solvent to clear trapped metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at normal operating temperature.
- Reset transmission shift adaptives using an advanced scan tool before highway road testing.

Nationwide Warranty Freight Manifest Inclusions

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical breakage and internal hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass printout, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
