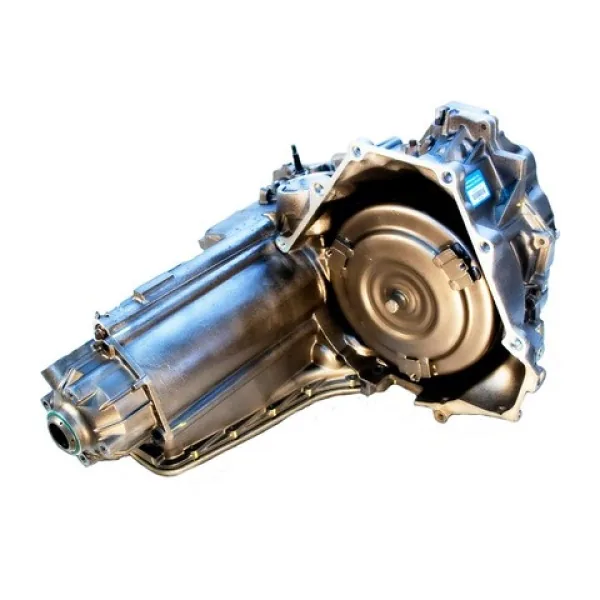

Buick Regal Pontiac Grand Prix 2003 Automatic Transmission 4-Speed 4T65E Remanufactured Style-B

Virgin shot-peened A380 aluminum forms the foundation of this reinforced front-wheel-drive transaxle. This remanufactured 2003 GM 4T65E transaxle 10576T delivers restored line pressure for 2003 Buick Regal and Pontiac Grand Prix 3.8L models. You must replace the cooler bypass thermostat and perform a cooler flush before road testing to protect internal clutches.

Clean shot-peened A380 die-cast aluminum encloses the gear train, inspected for hairline differential fissures using fluorescent dye testing. High-strength planetary gears transfer 3800 V6 power without tooth spalling or carrier distortion. Rebuilt internals include upgraded TCC regulator valves, reamed actuator feed limit bores, Kolene reaction steels, and Raybestos high-energy friction packs. Renewed front pump stator bushings prevent circuit cross-leaks. The dry gearbox weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of GM 4T65E

Professional mechanics buy GM 4T65E transmissions to eliminate harsh gear hunting without facing steep dealer part pricing. This commercial remanufactured transmission assembly supplies reliable torque capacity and restored shift quality for Pontiac Grand Prix transmission replacement projects.

- Updated actuator feed limit sleeve prevents line pressure drops that trigger harsh shifts.
- Reamed TCC regulator valve bore eliminates converter slip and P1811 trouble codes.
- Vacuum testing guarantees minimum twenty-two inches of mercury seal across all control circuits.
- Balanced remanufactured torque converter prevents front stator bushing galling under heavy acceleration.
- Raybestos high-energy friction discs prevent thermal breakdown during stop-and-go commuter traffic driving.
- Hardened fourth gear clutch hub eliminates spline strip failures under sustained highway cruising.
- Refurbished electronic pressure control solenoid ensures factory response timing across all gears.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured transaxle to an AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic shift solenoids actuate valve passages within twenty-two milliseconds under live computer diagnostics. Hydro-testing proves a steady vacuum hold of twenty-one inches of mercury on all reamed valve body ports. Dyno computer sensors verify zero converter clutch slip under loaded test programs. Fluid testing at 180 degrees Fahrenheit confirms proper hydraulic flow without case leaks.

Installation Directives Field Application Limits

Turn and push the torque converter until you verify three distinct clicks into the pump drive gear lugs. Avoid drawing the transaxle against the engine block with bolts before dowels seat. Do not buy this factory spec transmission for turbocharged builds, nitrous setups, or track drag competition.

- Flush chassis radiator heat exchangers with dedicated solvent to remove suspended metal dust.
- Fill with Dexron VI fluid while monitoring fluid temperature with diagnostic tools.
- Reset transmission shift adaptation data using a diagnostic scan tool before highway driving.

Nationwide Warranty Freight Manifest Details

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and valve body pressure loss. Your delivery crate contains a balanced torque converter, technician installation instructions, dyno pressure test certification, cooler flush tracking sheet, and a pre-paid freight bill of lading for prompt core return pickup.
