Buick Rainier Chevy Silverado GMC Sierra Trucks SUVs Vans 2004-2006 Automatic Transmission 4-Speed 4L60E Remanufactured

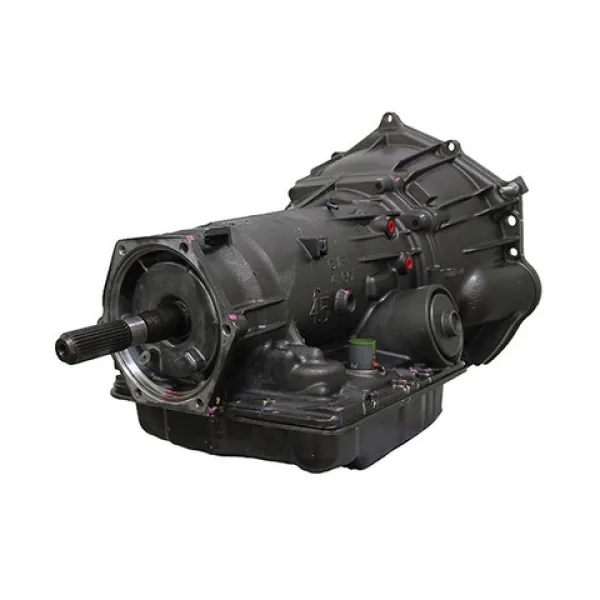

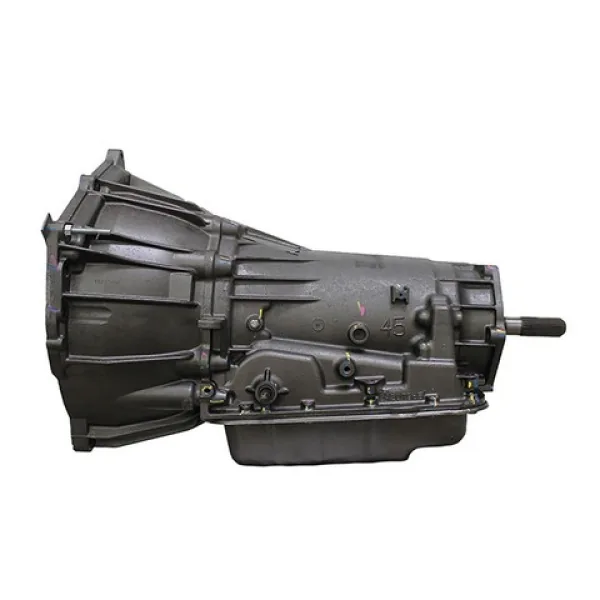

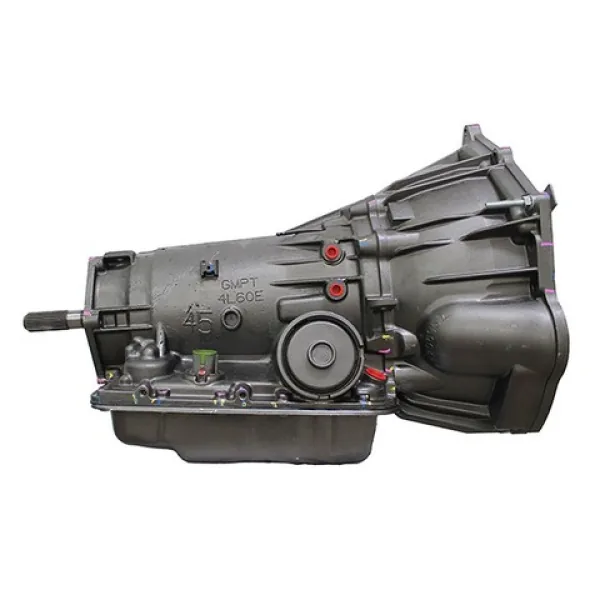

Bolt this remanufactured GM 4L60E transmission 10168T directly behind your GM Vortec engine block for restored towing performance. Engineered for 2004 to 2006 Silverado, Sierra, Rainier, and full-size vans, this longitudinal unit eliminates common 3-4 clutch pack slip. Installers must flush radiator oil coolers with heated chemical solvent before initial vehicle operation.

Shot-peened A380 aluminum encloses the longitudinal case, inspected for stress cracks along bellhousing and extension housing flanges with dye penetrant. Hardened 4140 chromoly reaction sun shells prevent rear spline stripping under heavy vehicle towing. Rebuilders install updated thirteen-vane oil pump rotors, Raybestos GPZ friction clutch packs, Kolene steel plates, and wide intermediate bands. New stator support bushings preserve fluid volume. The dry transmission weighs 165 lbs and ships inside a 36 by 22 by 20 inch crate.

Key Features of GM 4L60E

Fleet mechanics buy GM 4L60E transmissions to eliminate 3-4 clutch pack burn without paying inflated dealership pricing. This commercial remanufactured transmission assembly supplies durable towing capacity for Chevrolet Silverado transmission replacement projects.

- Heavy-duty hardened reaction sun shell prevents rear spline strip failure under heavy trailer towing.
- Raybestos GPZ friction clutch plates stop thermal burn and third gear slip flare.
- Hydro-tested valve body bores hold twenty-two inches of mercury on calibrated vacuum test benches.

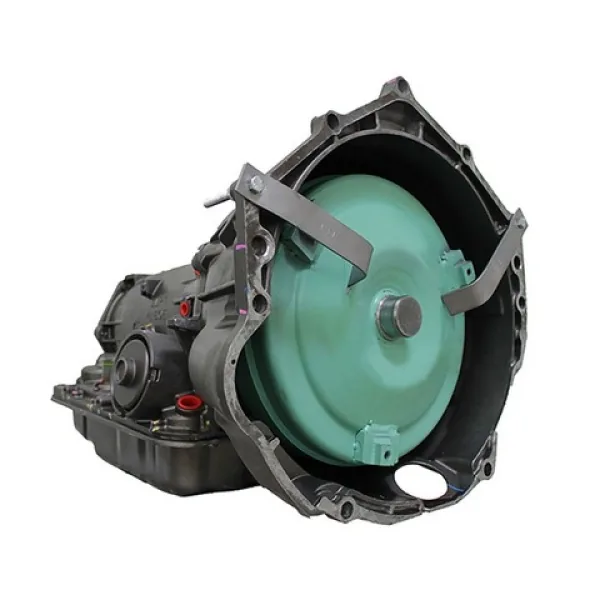

- Balanced remanufactured torque converter eliminates driveline vibration and protects front pump drive bushings.
- Thirteen-vane oil pump rotor delivers steady hydraulic line pressure across all engine speeds.
- Reinforced forward accumulator piston seals prevent fluid cross-bleed during aggressive throttle kickdown.
- Machined pump stator bushings preserve continuous line pressure to the torque converter clutch.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured 4L60E gearbox to an automated AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 190 PSI in Drive and 240 PSI in Reverse at 1600 RPM. Electronic pulse-width solenoids modulate hydraulic circuits within twenty milliseconds under computer diagnostics. Valve body passages hold twenty-one inches of mercury vacuum on precision bench gauges. Dyno sensors confirm zero converter lockup clutch slip under heavy load simulations. Fluid testing at 180 degrees Fahrenheit confirms proper hydraulic flow without case leaks.

Installation Directives Field Application Limits

Push and turn the torque converter inward until you verify three distinct clicks into the front pump drive gear lugs. Check engine dowel pins for burrs before pulling the bellhousing flat against the block. Do not buy this factory spec transmission for high-boost supercharged builds, drag racing, or extreme off-road mud bogging.

- Flush chassis radiator transmission cooler lines with heated solvent to clear foreign metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at operating temperature.
- Reset transmission adaptation registers using an advanced scan tool before highway test driving.

Nationwide Warranty Freight Manifest Details

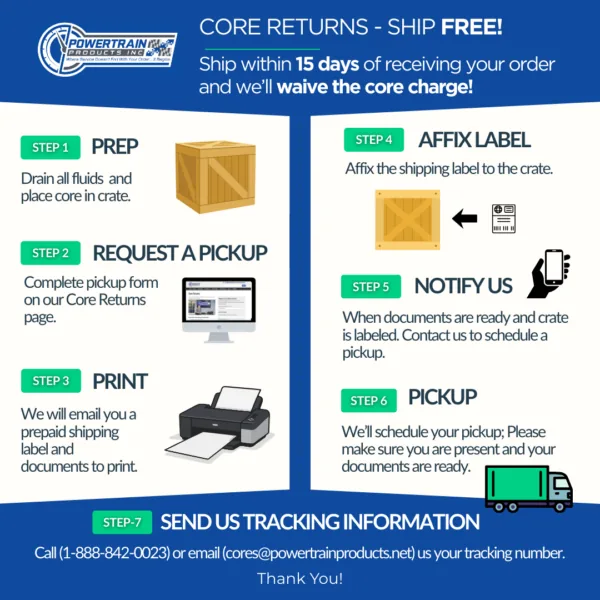

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and valve body pressure loss. Your delivery crate contains a balanced torque converter, technician installation instructions, dyno pressure test certification, cooler flush tracking sheet, and a pre-paid freight bill of lading for prompt core return pickup.
