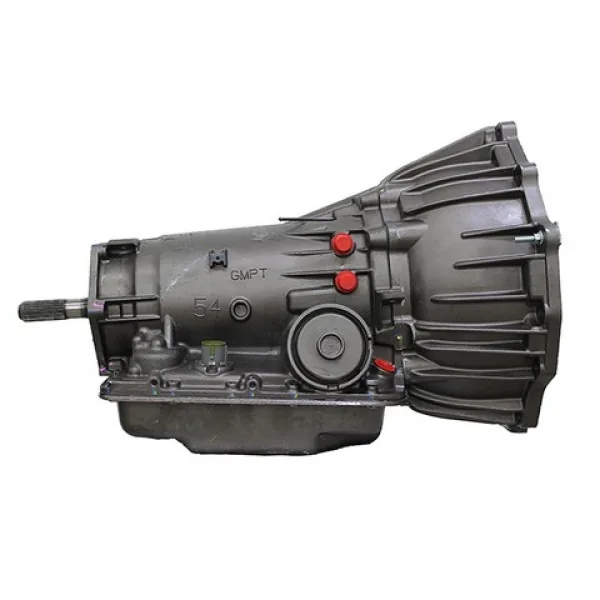

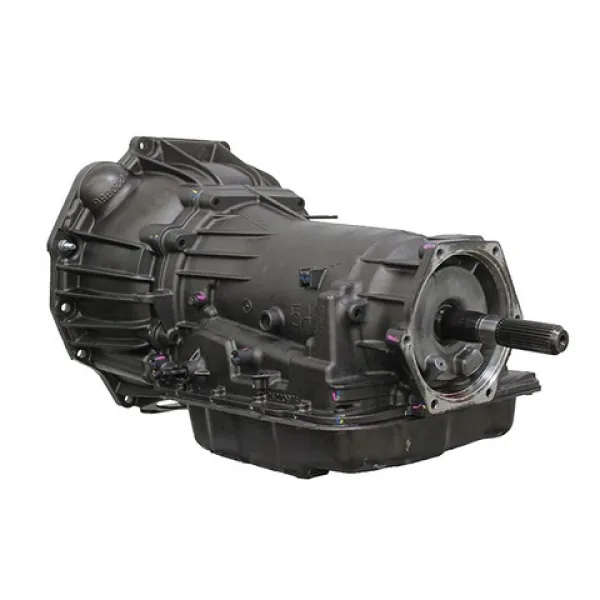

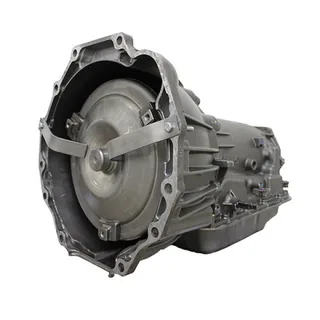

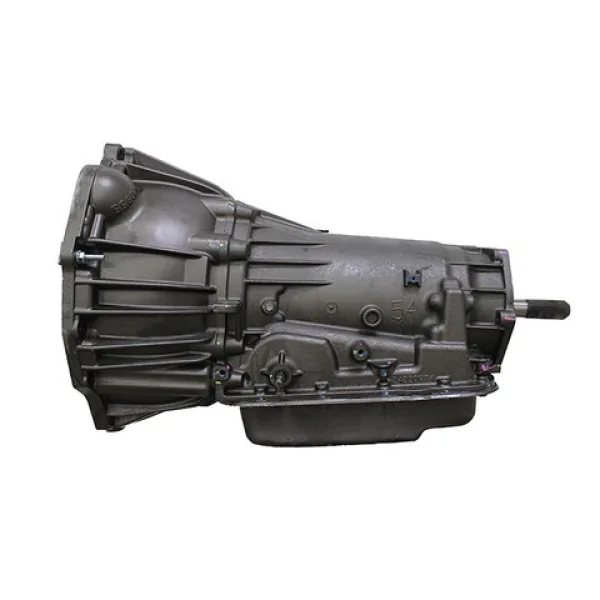

Buick Rainier Chevy Envoy GMC TrailBlazer 2006-2007 Automatic Transmission 4-Speed 4L60E Remanufactured

Shot-peened A380 aluminum and hardened 4140 chromoly shafts form the structural core of this mid-size SUV transmission. This remanufactured 4L60E longitudinal transmission 10192T matches 2006 to 2007 Buick Rainier, Chevrolet TrailBlazer, and GMC Envoy models with input speed sensors. You must flush chassis cooler lines with heated solvent and reset computer shift adaptives before road testing.

Shot-peened A380 aluminum encloses the heavy-duty longitudinal casing, inspected for cracks along bellhousing and extension housing flanges using fluorescent dye penetrant. Hardened 4140 chromoly reaction sun shells eliminate rear spline strip failures under load. Rebuilders install updated thirteen-vane oil pumps, heavy-duty input speed sensors, Raybestos GPZ 3-4 clutch packs, and Kolene steel plates. New stator support bushings preserve fluid volume. The dry transmission weighs 165 lbs and ships inside a 36 by 22 by 20 inch crate.

Key Features of GM 4L60E

Professional mechanics buy GM 4L60E transmission assemblies to eliminate 3-4 clutch burn and sun shell failure without paying inflated dealer part pricing. This commercial remanufactured transmission assembly supplies durable towing capacity for Chevrolet TrailBlazer transmission replacement projects.

- Heavy-duty hardened reaction sun shell prevents spline strip failure under heavy vehicle towing.
- Raybestos GPZ high-energy 3-4 clutch pack stops heat slip and third gear flare.
- Hydro-tested valve body bores hold twenty-two inches of mercury on calibrated vacuum test benches.
- Balanced remanufactured torque converter stops driveline vibration and protects front pump drive bushings.
- Updated thirteen-vane oil pump rotor delivers steady hydraulic line pressure across all engine speeds.
- Precision input speed sensor provides accurate turbine shaft rotation data to the powertrain computer.
- Replaced accumulator piston seals stop hydraulic pressure cross-bleed during aggressive throttle kickdown.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured 4L60E gearbox to an automated AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 190 PSI in Drive and 240 PSI in Reverse at 1600 RPM. Electronic pulse-width solenoids modulate hydraulic circuits within twenty milliseconds under computer diagnostics. Valve body passages hold twenty-one inches of mercury vacuum on precision bench gauges. Dyno sensors confirm zero converter lockup clutch slip under heavy load simulations. Fluid testing at 180 degrees Fahrenheit confirms proper hydraulic flow without case leaks.

Installation Directives Field Application Limits

Push and turn the torque converter inward until you verify three distinct clicks into the front pump drive gear lugs. Check engine dowel pins for burrs before pulling the bellhousing flat against the block. Do not buy this factory spec transmission for high-boost supercharged builds, drag racing, or extreme off-road mud bogging.

- Flush chassis radiator transmission cooler lines with heated solvent to clear foreign metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at operating temperature.
- Reset transmission adaptation registers using an advanced scan tool before highway test driving.

Nationwide Warranty Freight Manifest Details

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and valve body pressure loss. Your delivery crate contains a balanced torque converter, technician installation instructions, dyno pressure test certification, cooler flush tracking sheet, and a pre-paid freight bill of lading for prompt core return pickup.
