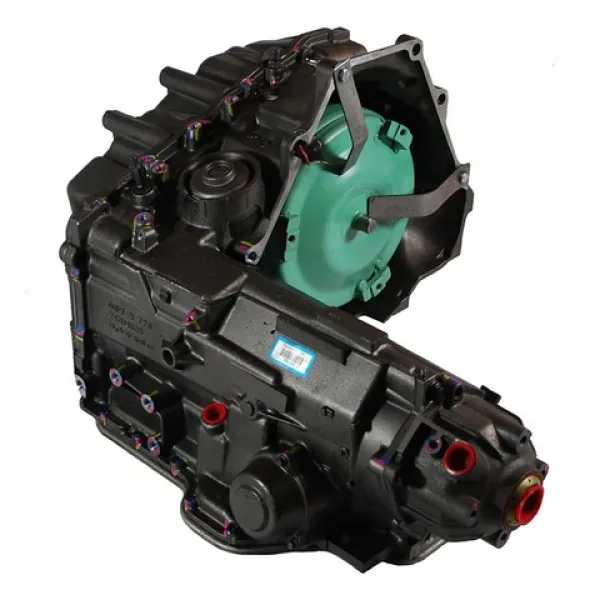

Buick Park Avenue Pontiac Bonneville 1994-1995 Automatic Transmission 4-Speed 4T60E Remanufactured

Strict OEM remanufacturing engineering standards restore factory drivetrain integrity to your full-size GM sedan. This remanufactured GM 4T60E transaxle 10526T carries tag 10526T for 1994 to 1995 Buick Park Avenue and Pontiac Bonneville 3.8L models. Technicians must perform a chemical cooler flush and set throttle valve cable geometry before road testing to protect internal clutches.

Shot-peened A380 die-cast aluminum forms the front-wheel-drive casing, inspected for hairline stress cracks around transmission mount bosses using dye penetrant. Hardened planetary pinions mesh against reaction sun gears to manage 3.8L engine torque without tooth deflection. We install new vacuum modulators, upgraded boost valve sleeves, Kolene steel plates, and high-energy BorgWarner friction packs. Precision drive sprocket bearings eliminate chain whip. The dry unit weighs 195 lbs and ships inside a 36 by 24 by 22 inch crate.

Key Features of GM 4T60E

Technicians buy GM 4T60E transaxles to stop delayed forward gear engagement without paying steep dealer part pricing. This commercial remanufactured transmission assembly ensures positive torque multiplication and durable line pressure control for Buick Park Avenue transmission replacement projects.

- Updated pressure boost valve assembly restores main line pressure balance across all throttle inputs.
- Calibrated vacuum modulator delivers accurate shift timing based on real-time engine vacuum load.
- Reamed valve body bores hold twenty-two inches of mercury during calibrated vacuum test bench checks.
- Balanced remanufactured torque converter eliminates driveline vibration and protects front pump drive gears.
- BorgWarner friction clutch plates maintain solid torque transfer under continuous highway driving cycles.
- Hardened intermediate band delivers positive mechanical grip to stop second gear shift slip.
- Precision drive chain sprockets prevent link bind and preserve smooth power delivery.

SuperFlow Dynamometer Load Test Telemetry

Technicians test every remanufactured 4T60E transaxle on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 165 PSI in Drive and 225 PSI in Reverse at 1500 RPM. Mechanical modulator shifts actuate crisp gear transitions across manifold vacuum steps from zero to eighteen inches. Valve body circuits hold twenty inches of mercury vacuum on precision bench gauges. The test program validates zero torque converter clutch slip at cruising speed. Thermal imaging cameras confirm leak-free front pump and drive axle seals under load.

Field Assembly Rules Application Limits

Spin the torque converter inward through three positive gear drops until the converter clears the front bellhousing face. Check engine block dowels for corrosion before bolting the bellhousing flat. Do not buy this factory calibrated unit for supercharged builds, manual swaps, or track race chassis.

- Flush cooler lines with hot chemical solvent to clear burned friction clutch sediment.
- Fill with approved Dexron fluid through the fill port at operating temperature.
- Adjust throttle valve cable geometry to factory specifications prior to highway road testing.

Warranty Terms Shipping Contents Details

This remanufactured assembly includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakages and hydraulic valve body failures. The reinforced wooden crate contains a balanced torque converter, step-by-step installation instructions, dynamometer test pass printout, cooler flush verification card, and a pre-paid core return freight bill for easy transport.
