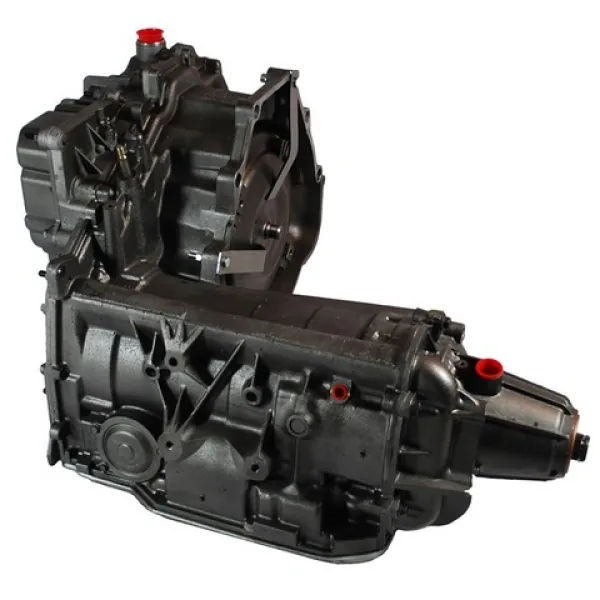

Buick Lucerne Cadillac DTS 2006-2011 Automatic Transmission 4-Speed 4T80E Remanufactured Style-B

Virgin shot-peened A380 aluminum forms the foundation of this reinforced front-wheel-drive luxury transaxle. This remanufactured 4T80E Style-B transaxle 10643T delivers restored line pressure for 2006 to 2011 Buick Lucerne and Cadillac DTS 4.6L V8 models. You must replace the cooler bypass thermostat and perform a cooler flush before road testing to protect internal clutches.

Clean shot-peened A380 die-cast aluminum encloses the heavy gear train, inspected for hairline case fissures using fluorescent dye testing. Dual drive sprockets and forged planetary carriers transfer 4.6L V8 power without chain stretch or carrier deflection. Rebuilt internals include upgraded TCC regulator sleeves, reamed boost valve bores, Kolene reaction steels, and Raybestos high-energy friction packs. Renewed front pump stator bushings prevent circuit cross-leaks. The dry gearbox weighs 295 lbs and ships inside a 40 by 28 by 26 inch crate.

Key Features of GM 4T80E

Professional mechanics buy GM 4T80E transmissions to eliminate harsh gear hunting without facing steep dealer part pricing. This commercial remanufactured transmission assembly supplies reliable torque capacity and restored shift quality for Buick Lucerne transmission replacement projects.

- Heavy-duty dual drive chain setup eliminates chain stretch under high V8 torque load.
- Updated TCC regulator sleeve prevents line pressure drops that trigger torque converter clutch slip.
- Vacuum testing guarantees minimum twenty-two inches of mercury seal across all control circuits.
- Balanced remanufactured torque converter prevents front stator bushing galling under heavy acceleration.
- Raybestos high-energy friction discs prevent thermal breakdown during stop-and-go commuter traffic driving.
- Hardened differential carrier gears handle heavy luxury sedan curb weight without tooth spalling.
- Refurbished electronic pressure control solenoid ensures factory response timing across all gears.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured transaxle to an AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 185 PSI in Drive and 245 PSI in Reverse at 1600 RPM. Electronic shift solenoids actuate valve passages within twenty-two milliseconds under live computer diagnostics. Hydro-testing proves a steady vacuum hold of twenty-one inches of mercury on all reamed valve body ports. Dyno computer sensors verify zero converter clutch slip under loaded test programs. Fluid testing at 180 degrees Fahrenheit confirms proper hydraulic flow without case leaks.

Installation Directives Field Application Limits

Turn and push the torque converter until you verify three distinct clicks into the pump drive gear lugs. Avoid drawing the transaxle against the engine block with bolts before dowels seat. Do not buy this factory spec transmission for turbocharged builds, nitrous setups, or track drag competition.

- Flush chassis radiator heat exchangers with dedicated solvent to remove suspended metal dust.
- Fill with approved Dexron VI fluid while monitoring fluid temperature with diagnostic tools.
- Reset transmission shift adaptation data using a diagnostic scan tool before highway driving.

Nationwide Warranty Freight Manifest Details

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and valve body pressure loss. Your delivery crate contains a balanced torque converter, technician installation instructions, dyno pressure test certification, cooler flush tracking sheet, and a pre-paid freight bill of lading for prompt core return pickup.
