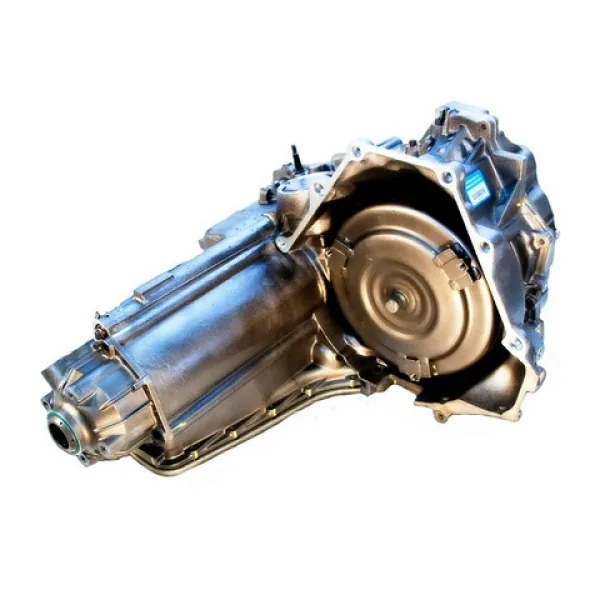

Buick Lucerne 2009-2011 Automatic Transmission 4-Speed 4T65E Remanufactured Style-B

Does long shift flare and converter slip shudder compromise your Buick Lucerne? Fix that transmission slipping with this remanufactured Buick Lucerne 4T65E transaxle built for 2009 to 2011 3.9L models. Technicians must perform a heated cooler line flush and clear shift adaptives prior to initial road testing to preserve internal clutches.

High-density A380 die-cast aluminum forms the transaxle case, inspected for hairline differential housing cracks using non-destructive dye testing. Hardened steel planet gears and high-strength drive sprockets handle 3.9L V6 engine torque without chain stretch or tooth pitting. We install Sonnax boost valve kits, upgraded TCC regulator valves, Kolene steel plates, and Raybestos friction packs. Replaced pump bushings preserve continuous fluid pressure. The dry unit weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of Buick 4T65E

Independent repair shops buy Buick 4T65E transmission assemblies to resolve P1811 maximum adapt and long shift codes without paying inflated dealer pricing. This commercial remanufactured transmission assembly provides smooth ratio stepping for Buick Lucerne transmission replacement projects.

- Upgraded Sonnax TCC regulator sleeve fixes torque converter shudder and lockup clutch slippage.
- Re-machined actuator feed limit valve bore stops line pressure decay inside the channel plate.
- Vacuum testing confirms twenty-two inches of mercury seal across all reamed spool valve bores.
- Balanced remanufactured torque converter stops driveline vibration and prevents front pump bushing wear.
- Raybestos high-energy friction plates resist thermal glaze under demanding stop-and-go commuter traffic.
- Hardened fourth gear clutch hub eliminates spline strip failures common in original factory units.
- New EPC pressure control solenoid provides accurate line pressure modulation across all throttle inputs.

AIDCO Bench Dynamometer Pressure Metrics

Every remanufactured 4T65E transaxle runs on an automated AIDCO dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic pressure control solenoids modulate hydraulic passages within twenty-two milliseconds under computer diagnostics. Valve body passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. The test software logs zero converter clutch slip at cruising speeds. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Directives Application Limits

Push the torque converter inward while spinning the hub to ensure complete engagement into the oil pump drive lugs. Check engine alignment dowels for burrs prior to pulling the transaxle against the engine block. Do not buy this factory unit for supercharged track racers or custom engine swaps.

- Flush chassis radiator transmission cooler lines with heated solvent to clear trapped metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at normal operating temperature.
- Reset transmission shift adaptives using an advanced scan tool before highway road testing.

Nationwide Warranty Freight Manifest Inclusions

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical breakage and internal hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass printout, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
