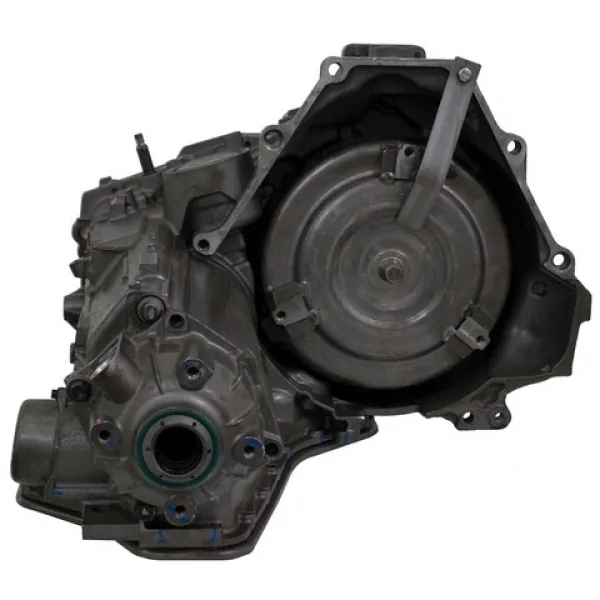

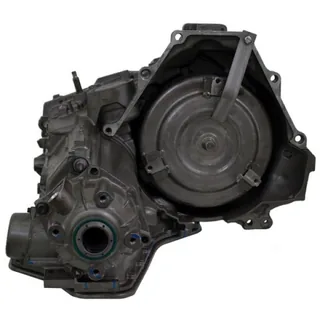

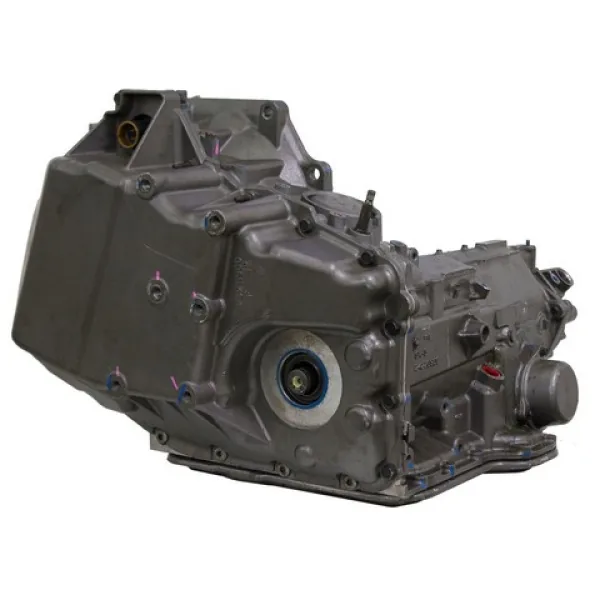

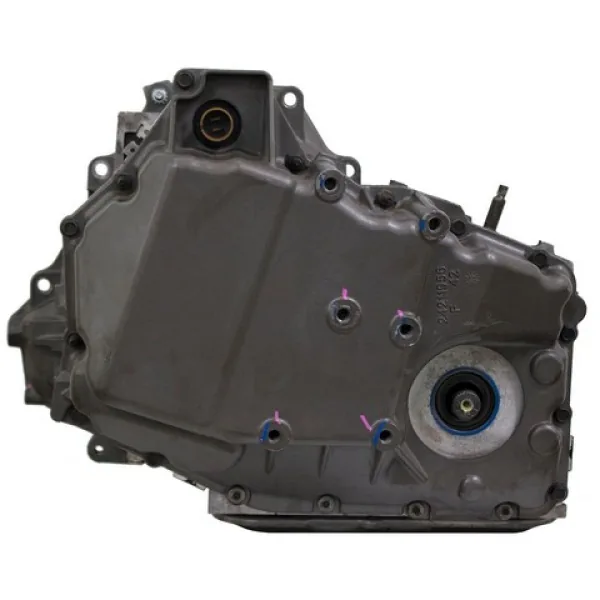

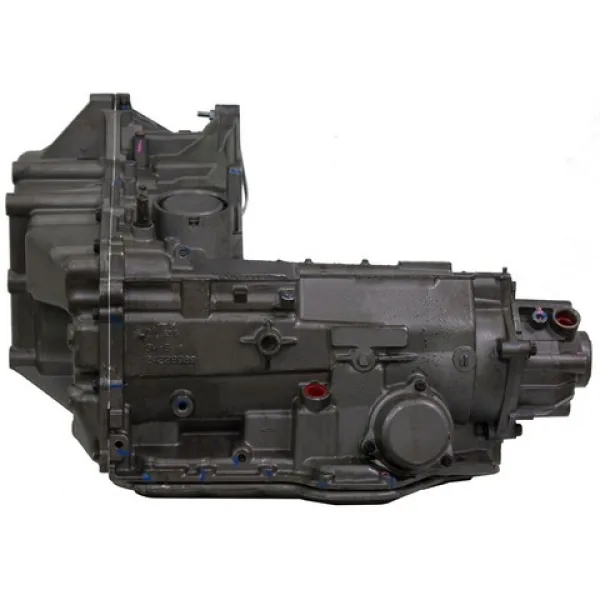

Stop-and-go commuter traffic and hot summer highway driving demand consistent hydraulic transmission line pressure stability. This remanufactured Buick Lucerne 4T65E transmission restores factory gear engagement for 2006 to 2008 models with 3.8L engines. Installers must flush the external transmission oil cooler and clear adaptation tables before releasing the vehicle to the customer.

Shot-peened A380 die-cast aluminum forms the bellhousing and main gear case, inspected with magnetic particle dye after abrasive shot blasting. Hardened planetary carrier pins resist high shear loads from GM 3.8L Series III engines. We install updated actuator feed limit valve sleeves, Sonnax TCC boost kits, Kolene steel reaction plates, and Raybestos friction packs. Renewed front pump stator bushings prevent internal fluid leakage. The dry assembly weighs 205 lbs and ships in a 36 by 26 by 22 inch crate.

Key Features of Buick 4T65E

Automotive shops buy Buick 4T65E transmission gearboxes to stop delayed forward engagement without paying inflated dealership pricing. This commercial remanufactured transmission assembly provides reliable open-road driving for your Buick Lucerne transmission replacement project.

- Oversized actuator feed limit valve sleeve stops line pressure drops inside the channel plate casting.
- CNC-reamed valve body bores hold twenty-two inches of mercury on calibrated vacuum test benches.
- Raybestos friction plates resist thermal loads encountered during aggressive spirited sedan driving.
- Balanced remanufactured torque converter stops drivetrain shudder while protecting front oil pump gears.
- Hardened fourth gear clutch hub stops spline strip failure under heavy highway throttle input.
- Upgraded TCC regulator sleeve prevents fluid cross-bleed during rapid throttle transitions.
- Precision stator support bushings maintain consistent hydraulic fluid feed to the converter clutch.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test every remanufactured 4T65E gearbox on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Pulse-width modulated shift solenoids show actuation response times under twenty-two milliseconds without mechanical valve hang. Critical valve body bores sustain twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Protocols Negative Filter

Turn and push the torque converter until you verify three distinct clicks into the oil pump drive gear. Verify engine block dowel alignment before drawing bellhousing bolts tight to the block. Do not buy this factory unit for high-boost turbo conversions, track drift builds, or nitrous drag racing.

- Flush chassis transmission cooler lines with heated pressurized solvent to clear friction sediment.
- Fill with approved Dexron VI fluid until fluid level reaches the full mark at operating temperature.
- Reset transmission shift adaptives using an advanced diagnostic scanner prior to road testing.

Nationwide Warranty Freight Manifest Inclusions

Your transmission purchase brings a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic valve body defects. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
