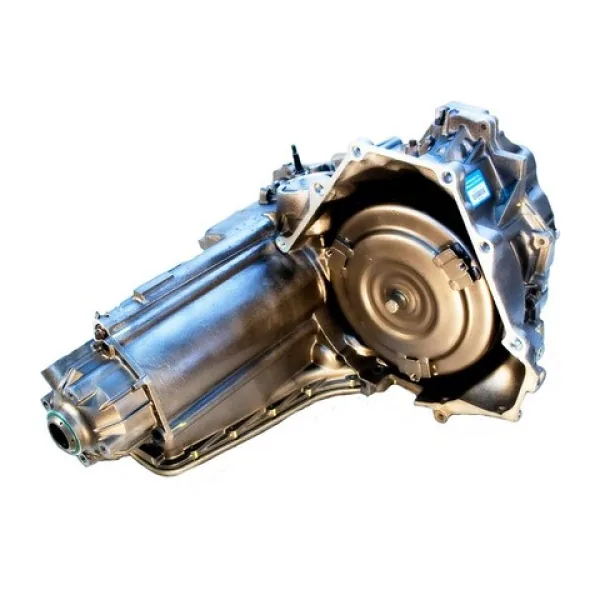

Buick Lesabre Pontiac Bonneville 2003 Automatic Transmission 4-Speed 4T65E Remanufactured Style-A

Slot this remanufactured 4T65E Style-A transaxle 10573T into your front-wheel-drive bay for immediate ratio recovery. Built for 2003 Buick LeSabre and Pontiac Bonneville models, this four-speed automatic restores positive gear transitions across all speeds. You must clear transmission computer adaptation values and flush cooler circuits prior to putting this unit into daily road service.

Shot-peened A380 die-cast aluminum forms the transaxle casing, inspected for stress fractures with non-destructive fluorescent dye testing. High-strength planetary pinions handle 3.8L V6 engine torque without tooth pitting. We install oversized steel actuator feed limit valves, Sonnax TCC regulator sleeves, Kolene steel plates, and high-energy Raybestos friction packs. Renewed front pump stator bushings restore continuous fluid volume. The dry transaxle weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of GM 4T65E

Professional repair facilities buy GM 4T65E transmission assemblies to correct delayed drive engagement without facing steep dealership part pricing. This commercial remanufactured transmission assembly provides dependable power transfer for your Pontiac Bonneville transmission replacement project.

- Oversized actuator feed limit valve sleeve stops hydraulic line pressure decay inside the channel plate.
- Re-machined TCC regulator valve bore eliminates torque converter clutch slip and friction shudder.
- Vacuum testing confirms twenty-two inches of mercury seal across all reamed valve body passages.
- Balanced remanufactured torque converter eliminates driveline vibration and prevents front pump bushing wear.
- Raybestos friction clutch plates maintain solid torque transfer under continuous highway driving cycles.
- Hardened fourth gear clutch hub stops spline strip failure under heavy highway throttle input.
- Precision stator support bushings ensure uninterrupted hydraulic fluid feed to the converter clutch.

AIDCO Bench Dynamometer Pressure Metrics

Certified technicians test each remanufactured 4T65E transaxle on an automated AIDCO test bench through cold and hot running cycles. Gauges measure main line pressure reaching 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic shift solenoids actuate valve passages within twenty-four milliseconds under computer diagnostics. Valve body hydraulic passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Guidelines Negative Filter

Turn and push the torque converter until you verify three distinct clicks into the pump drive gears. Avoid drawing the transaxle against the engine block with bolts before dowels seat. Do not buy this factory calibration transaxle for turbo track racers, drift builds, or nitrous swaps.

- Flush chassis radiator heat exchangers with dedicated chemical solvent to remove suspended metal dust.
- Fill with approved Dexron VI fluid while monitoring oil sump temperature with diagnostic tools.
- Reset transmission shift adaptation registers using an advanced scan tool before initial highway driving.

Nationwide Warranty Freight Manifest Details

Your purchase includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and internal hydraulic control failure. The heavy wood crate holds a balanced torque converter, technician installation checklist, dynamometer test pass certificate, cooler flush verification card, and a pre-paid core return freight bill for prompt return transit.
