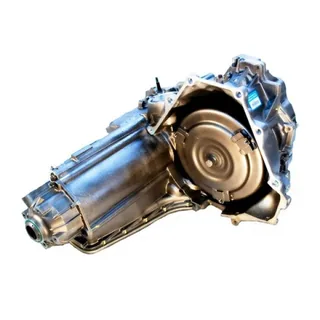

Buick Lesabre Pontiac Bonneville 2003 Automatic Transmission 4-Speed 4T65E Remanufactured

A 170 PSI forward line pressure curve delivers positive clutch pack clamping across GM 3.8L power bands. This remanufactured 2003 GM 4T65E transaxle 10572T matches 2003 Buick LeSabre and Pontiac Bonneville platforms. Installers must complete a high-temperature cooler flush and perform a computer shift adaptation reset before road testing to safeguard internal friction surfaces.

Shot-peened A380 die-cast aluminum forms the transaxle housing, checked for micro-cracks with dye penetrant around bellhousing and differential mounts. Hardened planetary carrier gears transfer V6 torque without gear tooth pitting. Rebuilders install upgraded Sonnax actuator feed limit valve sleeves, TCC regulator valves, Kolene steel plates, and Raybestos high-energy frictions. Replaced pump stator bushings restore hydraulic circuit balance. The dry transaxle weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of GM 4T65E

Technicians buy GM 4T65E transaxle assemblies to eliminate converter slip codes without paying high dealer parts pricing. This commercial remanufactured transmission assembly provides durable gear engagement for Buick LeSabre transmission replacement projects.

- Reamed actuator feed limit valve bore stops internal line pressure drops that cause shift flare.
- Upgraded TCC regulator valve sleeve eliminates torque converter clutch slip and friction shudder.
- Vacuum testing confirms twenty-two inches of mercury seal across all valve body bores.
- Balanced remanufactured torque converter eliminates driveline vibration and protects front pump drive gears.
- Raybestos high-energy friction plates resist thermal glaze under demanding stop-and-go commuter driving.
- Hardened fourth gear clutch hub stops spline strip failure under continuous highway cruising.
- Updated EPC solenoid delivers precise hydraulic line pressure modulation across all throttle inputs.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test each remanufactured 4T65E transaxle on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Pulse-width shift solenoids show actuation times under twenty-two milliseconds without mechanical bind. Re-machined valve body passages hold twenty-one inches of mercury vacuum under static bench tests. Dynamometer instrumentation logs zero torque converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Directives Application Limits

Push the torque converter inward while rotating the hub until you verify three distinct clicks. Make sure engine alignment dowels enter the bellhousing straight without draw bolt force. Do not buy this factory replacement unit for supercharged track racers, drift cars, or nitrous builds.

- Flush chassis transmission oil cooler passages with heated solvent to remove trapped friction particles.
- Fill with approved Dexron VI fluid while monitoring fluid sump temperature using diagnostic tools.
- Reset transmission adaptation registers using an advanced scan tool before highway test driving.

Standard Warranty Delivery Crate Manifest

This remanufactured transmission includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
