Buick Lesabre Pontiac Bonneville 1998 Automatic Transmission 4-Speed 4T65E Remanufactured

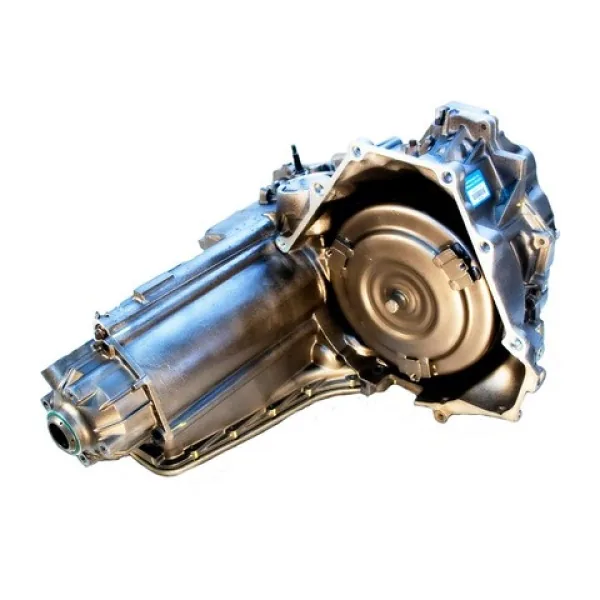

Spool-valve line pressure modulation and reaction carrier planetary reduction deliver positive torque transfer across broad commuter acceleration curves. This remanufactured 1998 GM 4T65E transaxle provides direct mechanical replacement for 1998 Buick LeSabre and Pontiac Bonneville models. You must flush cooler lines with heated solvent and reset adaptation values before completing your initial road evaluation.

Shot-peened A380 die-cast aluminum forms the rigid outer case, inspected through non-destructive dye penetrant for transaxle housing stress fractures. Forged steel planetary carriers handle 3800 Series II engine torque without gear deflection or spline wear. We install upgraded TCC regulator sleeves, oversized actuator feed limit valves, Kolene steel plates, and high-energy Raybestos friction packs. Replaced pump stator bushings maintain constant line pressure. The dry transmission weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of GM 4T65E

Technicians buy GM 4T65E transmission units to eliminate harsh second gear shift clunks without paying extreme dealer pricing. This commercial remanufactured transmission assembly provides refined gear changes and dependable torque delivery for your Buick LeSabre transmission replacement project.

- Upgraded actuator feed limit valve bore prevents line pressure spikes that trigger transmission slip codes.
- Oversized TCC regulator valve sleeves stop torque converter shudder and clutch slip under load.
- Re-machined valve body passages hold twenty-two inches of mercury during calibrated vacuum tests.
- Dynamically balanced remanufactured torque converter stops driveline vibration and protects front pump bushings.
- High-energy friction plates resist extreme thermal glaze during prolonged highway commuting.
- Hardened fourth gear clutch shaft eliminates spline strip failure under full throttle acceleration.
- Updated EPC solenoid ensures precise hydraulic line pressure modulation across all throttle inputs.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians subject every remanufactured 4T65E transaxle to hot and cold testing cycles on a SuperFlow transmission dyno. Pressure gauges verify main hydraulic line pressures holding 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic shift solenoids switch circuits within twenty-two milliseconds without spool valve hang. Valve body circuits hold twenty inches of mercury vacuum on precision bench gauges. The test program validates zero torque converter clutch slip at cruising speed. Thermal imaging cameras confirm leak-free front pump and drive axle seals under load.

Field Installation Directives Negative Filter

Spin the torque converter inward through three positive gear drops until the converter clears the front bellhousing face. Check engine block dowels for corrosion before bolting the bellhousing flat. Do not buy this factory calibrated unit for supercharged builds, manual swaps, or track race chassis.

- Flush cooler lines with hot chemical solvent to clear burned friction clutch sediment.
- Fill with approved Dexron VI fluid through the fill port at operating temperature.
- Clear transmission adaptation registers using diagnostic software before taking the car on highways.

Nationwide Warranty Freight Crate Contents

Your purchase brings a nationwide 3-Year/100,000-Mile warranty protecting against internal mechanical damage and hydraulic pressure control faults. The sturdy wooden freight crate houses a balanced torque converter, technician installation guide, dynamometer inspection pass slip, cooler flush checklist, and a pre-printed core return bill of lading for simple return transit.
