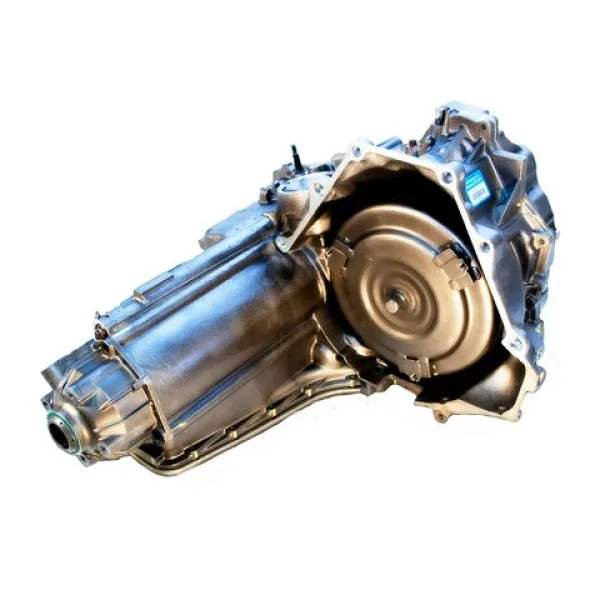

Buick Lesabre Pontiac Bonneville 2000-2002 Automatic Transmission 4-Speed 4T65E Remanufactured Style-B

Long shift flare and transmission trouble code P1811 indicate severe line pressure drop inside your channel plate. Replace that worn transaxle with this remanufactured GM 4T65E transaxle 10559T built for 2000 to 2002 Buick and Pontiac models. Technicians must perform a thermal cooler flush and clear transmission shift adaptives right after mounting the gearbox.

Shot-peened A380 die-cast aluminum forms the transaxle case, inspected for stress cracks along internal channel plates with fluorescent dye penetrant. Hardened planetary pinions and wide drive sprockets transfer 3800 V6 torque without tooth deflection. Rebuilders install updated Sonnax actuator feed limit valve sleeves, TCC boost kits, Kolene steel plates, and Raybestos friction packs. Replaced pump bushings maintain hydraulic volume. The dry transaxle weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of GM 4T65E

Mechanics buy GM 4T65E transmission gearboxes to stop harsh maximum adapt shifts without paying high dealership parts pricing. This commercial remanufactured transmission assembly provides positive torque multiplication for Pontiac Bonneville transmission replacement projects.

- Oversized actuator feed limit valve sleeve prevents line pressure drops that trigger harsh shifts.
- Upgraded TCC regulator valve sleeve stops torque converter clutch slip and friction shudder.
- Vacuum testing confirms twenty-two inches of mercury seal across all reamed spool bores.
- Balanced remanufactured torque converter eliminates drivetrain vibration and shields front pump drive gears.
- Raybestos high-energy friction clutch plates resist thermal breakdown under demanding stop-and-go commuter traffic.
- Hardened fourth gear clutch hub stops spline strip failure under prolonged highway operation.
- New EPC pressure control solenoid delivers precise hydraulic modulation across all throttle ranges.

AIDCO Bench Dynamometer Pressure Metrics

Every rebuilt 4T65E unit undergoes load testing on an automated AIDCO dynamometer through cold start and elevated operating temperatures. Pressure gauges register line pressure holding 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic shift solenoids switch hydraulic passages within twenty-two milliseconds under computer diagnostics. Valve body hydraulic circuits sustain twenty-one inches of mercury vacuum during static bench drawdown tests. The dyno computer logs zero converter clutch slip at cruising speed. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Protocols Negative Filter

Slide the torque converter onto the input splines until you verify three distinct clicks. Measure pump hub clearance with a depth tool before tightening bellhousing bolts to the block. Do not buy this factory unit for supercharged V8 conversions, track drag racing, or nitrous setups.

- Flush chassis radiator transmission cooler lines with heated solvent to remove suspended metal dust.
- Fill with approved Dexron VI fluid while monitoring fluid level at operating temperature.
- Reset transmission shift adaptation data using an advanced scan tool before highway test driving.

Nationwide Warranty Freight Manifest Inclusions

Your transmission purchase brings a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic valve body defects. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
