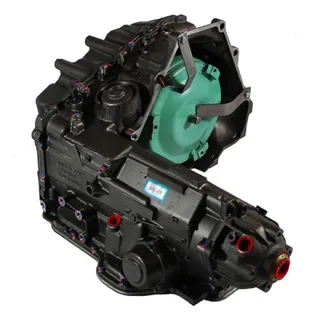

Buick Pontiac Grand Am Skylark 1996-1998 Automatic Transmission 4-Speed 4T60E Remanufactured

Strict OEM remanufacturing engineering standards restore compact front-wheel-drive integrity to your GM coupe or sedan. This remanufactured 4T60E compact transaxle 10529T carries tag 10529T for 1996 to 1998 Pontiac Grand Am and Buick Skylark models. Technicians must perform a chemical cooler flush and adjust TV cable tension before road testing to safeguard internal clutches.

Shot-peened A380 die-cast aluminum forms the compact transaxle housing, inspected for stress cracks along bellhousing bolt bosses using dye penetrant. Hardened planetary pinions mesh against reaction sun gears to manage four-cylinder and V6 engine torque without tooth deflection. Rebuilders install updated boost valve sleeves, calibrated modulators, Kolene steel plates, and BorgWarner friction packs. Precision drive sprocket bearings eliminate chain whip. The dry unit weighs 185 lbs and ships inside a 36 by 24 by 22 inch crate.

Key Features of GM 4T60E

Technicians buy GM 4T60E transaxles to stop delayed forward gear engagement without paying steep dealer part pricing. This commercial remanufactured transmission assembly ensures positive torque multiplication and durable line pressure control for Pontiac Grand Am transmission replacement projects.

- Updated pressure boost valve assembly restores main line pressure balance across all throttle inputs.
- Electronic PWM torque converter clutch solenoid stops converter shudder under highway cruise conditions.
- Reamed valve body bores hold twenty-two inches of mercury during calibrated vacuum test bench checks.
- Balanced remanufactured torque converter eliminates driveline vibration and protects front pump drive gears.
- BorgWarner friction clutch plates maintain solid torque transfer under continuous highway driving cycles.
- Hardened intermediate band delivers positive mechanical grip to stop second gear shift slip.
- Precision drive chain sprockets prevent link bind and preserve smooth power delivery.

AIDCO Bench Dynamometer Pressure Metrics

Technicians secure each remanufactured transaxle to an AIDCO test bench to verify internal line pressure across every gear ratio. Pressure readings log 165 PSI in Drive and 225 PSI in Reverse at 1500 RPM. Electronic shift solenoids actuate valve passages within twenty-two milliseconds under live computer diagnostics. Hydro-testing proves a steady vacuum hold of twenty-one inches of mercury on all reamed valve body ports. Dyno computer sensors verify zero converter clutch slip under loaded test programs. Fluid testing at 180 degrees Fahrenheit confirms proper hydraulic flow without case leaks.

Installation Directives Field Application Limits

Turn and push the torque converter until you verify three distinct clicks into the pump drive gear lugs. Avoid drawing the transaxle against the engine block with bolts before dowels seat. Do not buy this factory spec transmission for turbocharged builds, nitrous setups, or track drag competition.

- Flush chassis radiator heat exchangers with dedicated solvent to remove suspended metal dust.
- Fill with approved Dexron fluid while monitoring fluid temperature with diagnostic tools.
- Adjust throttle valve cable geometry to factory specifications prior to highway road testing.

Nationwide Warranty Freight Manifest Details

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and valve body pressure loss. Your delivery crate contains a balanced torque converter, technician installation instructions, dyno pressure test certification, cooler flush tracking sheet, and a pre-paid freight bill of lading for prompt core return pickup.
