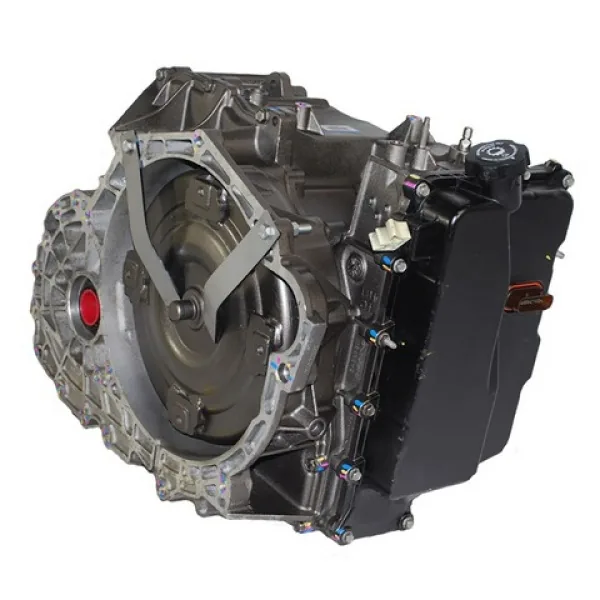

Buick Enclave Chevy Traverse GMC Acadia 2012 Automatic Transmission 6-Speed 6T75E Remanufactured

Harsh reverse engagement and slipping third gear point to fractured wave plates inside your Lambda crossover. Replace that damaged gearbox with this remanufactured 6T75E automatic transaxle 11044T engineered for 2012 Buick, Chevrolet, and GMC models. Technicians must perform a heated cooler flush and complete a computer adaptive reset before releasing the vehicle.

Shot-peened A380 die-cast aluminum forms the transaxle case, inspected for stress cracks along internal differential ribbing with fluorescent penetrant. Hardened planet pinions and helical sun gears absorb 3.6L V6 torque without gear tooth pitting. Rebuilders install shot-peened 3-5-Reverse wave plates, Kolene steel reaction plates, and high-energy Raybestos clutch discs. New stator support bushings prevent internal pressure cross-bleed. The dry unit weighs 218 lbs and ships inside a 38 by 26 by 24 inch crate.

Key Features of GM 6T75E

Fleet mechanics buy GM 6T75E transaxles to prevent recurring 3-5-Reverse clutch failure without paying high dealer parts pricing. This commercial remanufactured transmission assembly provides positive torque multiplication for Chevrolet Traverse transmission replacement projects.

- Strengthened 3-5-Reverse wave plate eliminates metal debris generation that destroys pump gears.
- Re-machined valve body bores hold twenty-two inches of mercury on calibrated vacuum test benches.
- Rebuilt transmission control module solenoids deliver calibrated fluid flow to forward clutch circuits.
- Balanced remanufactured torque converter eliminates engine vibration and shields the internal pump drive.
- Raybestos high-energy friction plates resist thermal heat breakdown during heavy crossover highway acceleration.
- Hardened final drive differential gears handle front-wheel-drive torque without spline strip damage.
- Machined pump stator bushings preserve continuous line pressure to the torque converter clutch.

AIDCO Bench Dynamometer Pressure Metrics

Every completed 6T75E transaxle runs on an automated AIDCO dynamometer through cold start and elevated operating temperatures. Pressure transducers measure line pressure holding 175 PSI in Drive and 250 PSI in Reverse at 1600 RPM. Electronic pulse-width solenoids switch circuits within twenty milliseconds under computer diagnostics. Valve body hydraulic passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under simulated grade resistance. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Protocols Negative Filter

Slide the torque converter onto the input splines until you verify three distinct clicks. Measure pump hub clearance with a depth gauge before torquing bellhousing bolts to the block. Do not buy this factory calibration unit for supercharged track racers, drift builds, or custom swaps.

- Flush chassis radiator transmission cooler lines with heated solvent to clear trapped metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at operating temperature.
- Reset transmission shift adaptation data using an advanced scan tool before highway test driving.

Nationwide Warranty Freight Manifest Inclusions

Your transmission purchase brings a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic valve body defects. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
