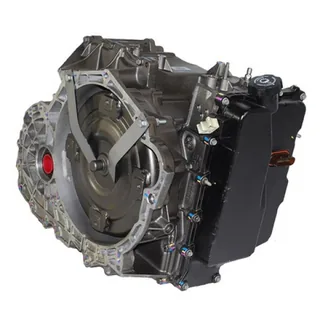

Buick Enclave Chevy Traverse GMC Acadia Saturn Outlook 2010 Automatic Transmission 6-Speed 6T75E Remanufactured

Smooth six-speed ratio stepping and firm converter lockup return to your GM family crossover. This remanufactured 2010 GM 6T75E transaxle carries tag 11037T for exact Lambda chassis integration. You must complete a high-temperature cooler line flush and execute a transmission adaptation reset before performing initial road tests to protect internal hydraulic circuits.

Shot-peened A380 die-cast aluminum forms both the main transmission housing and end cover, verified crack-free through magnetic particle inspections. Steel planet pinions mesh with reaction sun gears to manage 3.6L V6 engine torque without excessive lash. We install shot-peened 3-5-Reverse wave plates, new TEHCM solenoids, Kolene steel plates, and high-energy Raybestos frictions. Renewed stator bushings restore internal fluid balance. The dry transmission weighs 218 lbs and ships inside a 38 by 26 by 24 inch crate.

Key Features of GM 6T75E

Independent repair shops buy GM 6T75E transmission units to restore positive forward engagement without paying high dealership parts pricing. This commercial remanufactured transmission assembly provides durable gear selection for GMC Acadia transmission replacement projects.

- Heavy-gauge 3-5-Reverse wave plate eliminates internal stress cracking inside the clutch drum.
- Hydro-tested valve body circuits hold twenty-two inches of mercury vacuum during decay leak checks.
- Balanced remanufactured torque converter eliminates driveline vibration and prevents front pump bushing wear.
- Raybestos friction clutch plates ensure solid torque transfer under continuous highway cruising conditions.
- Updated TEHCM pressure switch seals prevent fluid cross-bleed during aggressive stop-and-go driving.
- Precision stator support bushings maintain consistent hydraulic fluid feed to the converter clutch.
- Hardened differential carrier gears handle heavy crossover curb weight without tooth spalling.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test each remanufactured 6T75E gearbox on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 175 PSI in Drive and 250 PSI in Reverse at 1600 RPM. Pulse-width shift solenoids show actuation times under twenty milliseconds without mechanical bind. Re-machined valve body passages hold twenty-one inches of mercury vacuum under static bench tests. Dynamometer instrumentation logs zero torque converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Directives Application Limits

Push the torque converter inward while rotating the hub until you verify three distinct clicks. Make sure engine alignment dowels enter the bellhousing straight without draw bolt force. Do not buy this factory replacement unit for turbocharged track racers, drift cars, or nitrous builds.

- Flush chassis transmission oil cooler passages with heated solvent to remove trapped friction particles.
- Fill with approved Dexron VI fluid while monitoring fluid sump temperature using diagnostic tools.
- Reset transmission adaptation registers using an advanced scan tool before highway test driving.

Standard Warranty Delivery Crate Manifest

This remanufactured transmission includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
