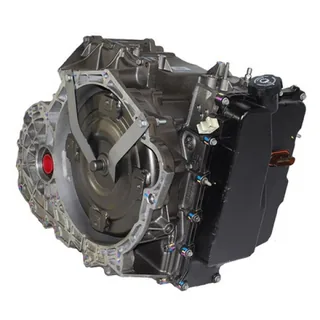

Buick Enclave Chevy Traverse GMC Acadia Saturn Outlook 2009 Automatic Transmission 6-Speed 6T75E Remanufactured

Slot this remanufactured 6T75E crossover transaxle 11035T into your front-wheel-drive or all-wheel-drive platform for immediate shift recovery. Built for 2009 GM Lambda crossovers with 3.6L direct-injection engines, this six-speed unit restores positive gear transitions. You must clear transmission computer adaptation values and flush cooler circuits prior to putting this unit into daily road service.

Shot-peened A380 die-cast aluminum forms the external transaxle casing, inspected for stress fractures with non-destructive fluorescent dye testing. High-strength planetary pinions handle 3.6L V6 engine torque without tooth pitting. We install upgraded heavy-gauge 3-5-Reverse wave plates, new TEHCM solenoids, Kolene steel plates, and high-energy Raybestos friction packs. Renewed front pump stator bushings restore continuous fluid volume. The dry transaxle weighs 218 lbs and ships inside a 38 by 26 by 24 inch crate.

Key Features of GM 6T75E

Professional repair facilities buy GM 6T75E transmission assemblies to correct delayed drive engagement without facing steep dealership part pricing. This commercial remanufactured transmission assembly provides dependable power transfer for Saturn Outlook transmission replacement projects.

- Heavy-gauge 3-5-Reverse wave plate stops stress cracking that destroys forward clutch drums.
- Re-machined valve body passages hold twenty-two inches of mercury during calibrated vacuum tests.
- Pre-tested transmission control module solenoids deliver factory fluid modulation to clutch circuits.
- Balanced remanufactured torque converter eliminates driveline vibration and protects front pump bushings.
- Raybestos friction clutch plates maintain solid torque transfer under continuous highway driving cycles.
- Hardened final drive differential gears resist spline strip damage during hard vehicle acceleration.
- Precision stator support bushings ensure uninterrupted hydraulic fluid feed to the converter clutch.

AIDCO Bench Dynamometer Pressure Metrics

Certified technicians test each remanufactured 6T75E transaxle on an automated AIDCO test bench through cold and hot running cycles. Gauges measure main line pressure reaching 175 PSI in Drive and 250 PSI in Reverse at 1600 RPM. Electronic shift solenoids actuate valve passages within twenty milliseconds under computer diagnostics. Valve body hydraulic passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Guidelines Negative Filter

Turn and push the torque converter until you verify three distinct clicks into the pump drive gears. Avoid drawing the transaxle against the engine block with bolts before dowels seat. Do not buy this factory calibration transaxle for turbo track racers, drift builds, or nitrous swaps.

- Flush chassis radiator heat exchangers with dedicated chemical solvent to remove suspended metal dust.
- Fill with approved Dexron VI fluid while monitoring oil sump temperature with diagnostic tools.
- Reset transmission shift adaptation registers using an advanced scan tool before initial highway driving.

Nationwide Warranty Freight Manifest Details

Your purchase includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and internal hydraulic control failure. The heavy wood crate holds a balanced torque converter, technician installation checklist, dynamometer test pass certificate, cooler flush verification card, and a pre-paid core return freight bill for prompt return transit.
