Buick Century 2005 Automatic Transmission 4-Speed 4T65E Remanufactured

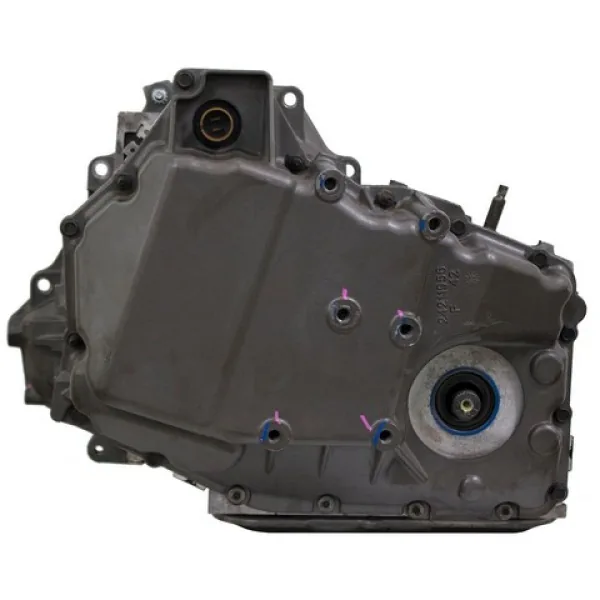

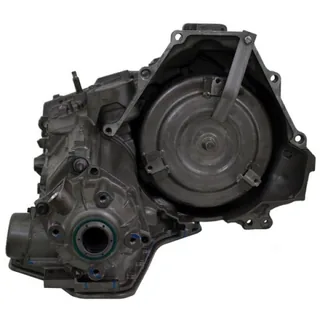

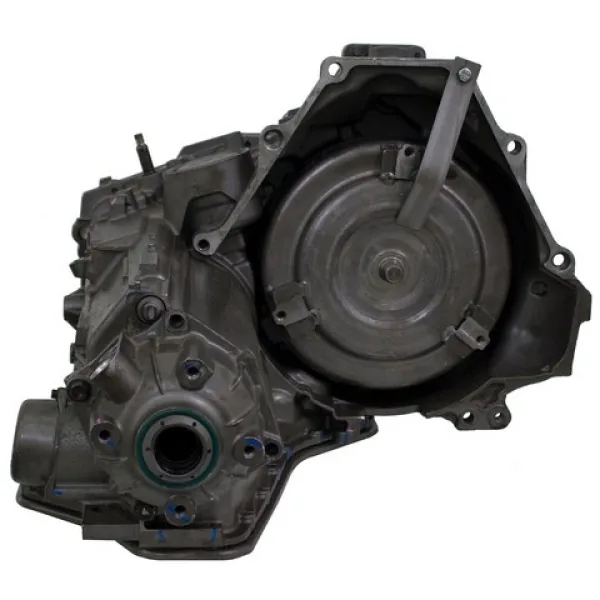

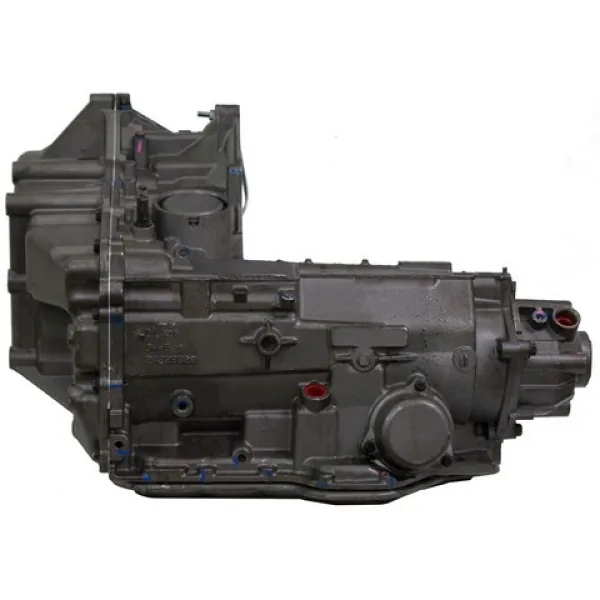

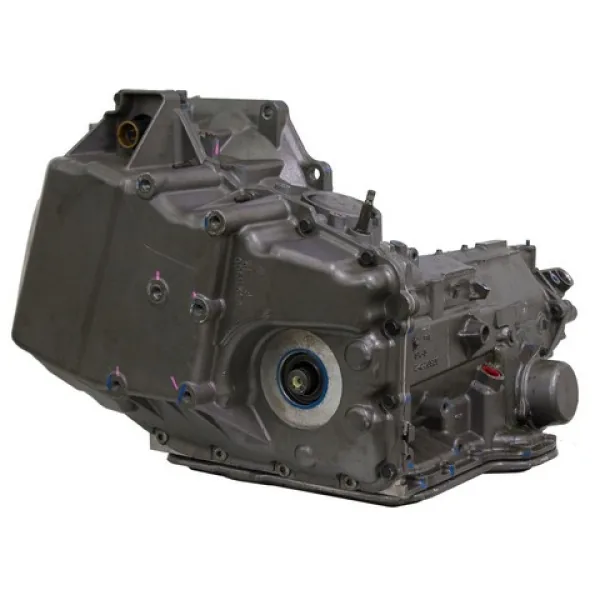

Strict remanufacturing engineering standards restore factory drivetrain integrity to your final-year Buick Century sedan. This remanufactured 2005 Buick Century 4T65E transaxle carries tag 10603T for exact powertrain matching. Technicians must perform a chemical cooler line flush and clear transmission shift adaptations before putting the vehicle into road service to protect internal hydraulic controls.

Shot-peened A380 die-cast aluminum forms the transaxle casing, inspected for stress cracks along channel plate mounting bosses using fluorescent dye penetrant. Hardened planetary pinions and heavy drive sprockets handle continuous 3.1L engine torque without tooth deflection. Rebuilders install oversized actuator feed limit valves, Sonnax TCC regulator sleeves, Kolene steel plates, and Raybestos friction packs. Replaced pump bushings maintain stable line pressure. The dry unit weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of Buick 4T65E

Technicians buy Buick 4T65E transaxles to stop harsh shift adapt clunks without paying steep local dealership pricing. This commercial remanufactured transmission assembly ensures positive torque multiplication and durable line pressure control for Buick Century transmission replacement projects.

- Oversized actuator feed limit valve prevents line pressure instability and harsh second gear shifts.
- Upgraded TCC regulator valve sleeve stops torque converter shudder and clutch slip codes.
- Vacuum testing proves twenty-two inches of mercury retention across all reamed valve bores.
- Balanced torque converter stops drivetrain shudder while protecting internal pump gears from wear.
- Raybestos high-energy frictions resist high heat glaze during demanding highway driving.
- Hardened fourth gear clutch shaft prevents spline strip failure under heavy throttle.
- New EPC pressure control solenoid guarantees factory line pressure modulation in all gears.

AIDCO Bench Dynamometer Pressure Metrics

Certified technicians test each remanufactured 4T65E gearbox on an automated AIDCO test stand through cold and hot running cycles. Gauges verify main line pressure reaching 170 PSI in Drive and 230 PSI in Reverse under load. Pulse-width shift solenoids show actuation times within twenty-four milliseconds under computer diagnostics. Valve body hydraulic passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Assembly Rules Application Limits

Seat the torque converter inward with three distinct clicks until the hub drops well past the bellhousing mating surface. Never force the transmission against the engine block using bellhousing bolts. Do not buy this factory-calibrated unit for turbo track racers, drift builds, or vehicles with altered final-drive differentials.

- Flush cooler lines with hot pressurized solvent to clear metallic clutch debris from previous failures.
- Fill with Dexron VI fluid until it spills from the check port at normal operating temperature.
- Perform an electronic adaptation reset procedure using a professional scan tool before road testing.

Warranty Terms Shipping Contents Details

This remanufactured assembly includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakages and hydraulic valve body failures. The reinforced wooden crate contains a balanced torque converter, step-by-step installation instructions, dynamometer test pass printout, cooler flush verification card, and a pre-paid core return freight bill for easy transport.
