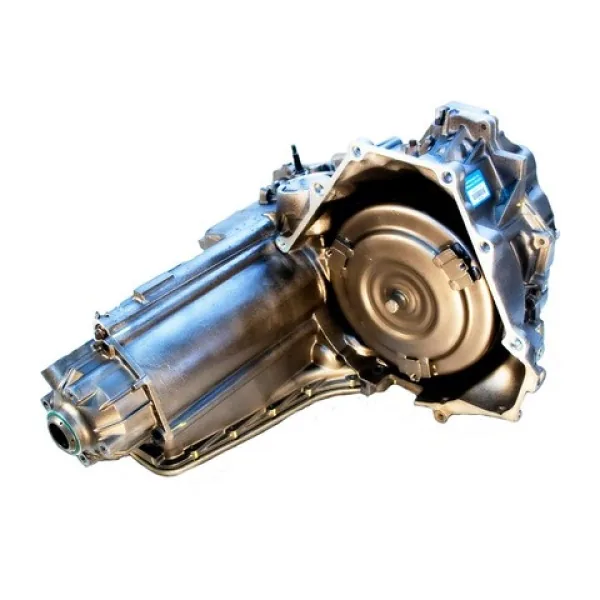

Buick Century 2004 Automatic Transmission 4-Speed 4T65E Remanufactured

Does harsh second gear shift clunk and transmission slip trouble your daily commute? Solve that hydraulic pressure problem with this remanufactured 2004 Buick Century 4T65E transmission carrying tag 10601T. Technicians must perform a chemical cooler flush and reset computer shift adaptives right after mounting the transaxle to prevent clutch friction damage.

Shot-peened A380 die-cast aluminum forms the front-wheel-drive casing, inspected for hairline stress cracks using fluorescent dye testing. Hardened planetary carrier gears transfer 3.1L V6 engine torque without tooth spalling or carrier deflection. Rebuilders install oversized actuator feed limit valve sleeves, updated TCC regulator valves, Kolene steel plates, and Raybestos friction packs. Replaced pump stator bushings preserve continuous line pressure. The dry unit weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of Buick 4T65E

Independent repair shops buy Buick 4T65E transmission assemblies to eliminate P1811 long shift codes without paying inflated dealer parts pricing. This commercial remanufactured transmission assembly supplies durable gear engagement for Buick Century transmission replacement projects.

- Oversized actuator feed limit valve sleeve prevents line pressure drops that trigger harsh shift adapts.
- Upgraded TCC regulator valve sleeve stops torque converter clutch slip and friction shudder.
- Vacuum testing confirms twenty-two inches of mercury seal across all reamed spool bores.
- Balanced remanufactured torque converter eliminates driveline vibration and protects internal pump gears.
- Raybestos high-energy friction plates resist thermal glaze under demanding stop-and-go commuter driving.
- Hardened fourth gear clutch hub stops spline strip failure under prolonged highway operation.
- New EPC pressure control solenoid provides accurate line pressure modulation across all throttle inputs.

SuperFlow Dynamometer Diagnostic Telemetry Data

Every remanufactured 4T65E transaxle runs on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic pressure control solenoids modulate hydraulic passages within twenty-two milliseconds under computer diagnostics. Valve body passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. The test software logs zero converter clutch slip at cruising speeds. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Directives Application Limits

Push the torque converter inward while spinning the hub to ensure complete engagement into the oil pump drive lugs. Check engine alignment dowels for burrs prior to pulling the transaxle against the engine block. Do not buy this factory unit for supercharged track racers or custom engine swaps.

- Flush chassis radiator transmission cooler lines with heated solvent to clear trapped metal particulate.
- Fill with approved Dexron VI fluid while monitoring fluid level at normal operating temperature.
- Reset transmission shift adaptives using an advanced scan tool before highway road testing.

Nationwide Warranty Freight Manifest Inclusions

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical breakage and internal hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass printout, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
