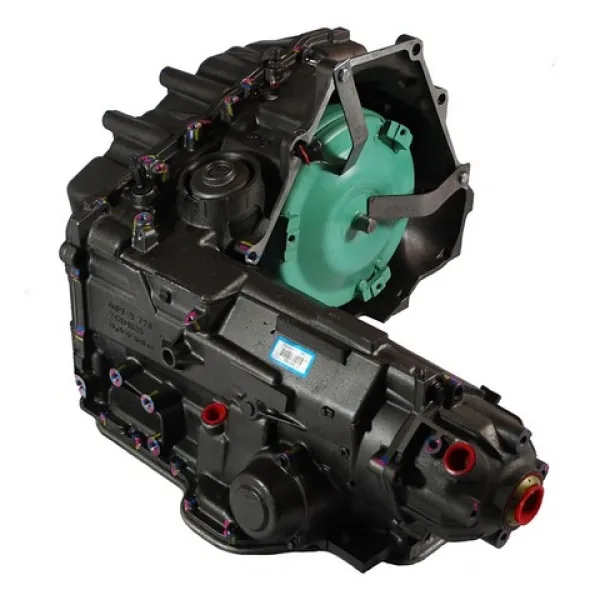

Smooth four-speed overdrive transitions and restored fuel economy return to your classic Buick sedan. This remanufactured 1994-1995 Buick Century 4T60E transmission provides exact factory fitment for 3.1L front-wheel-drive models. Installers must flush radiator cooler lines with heated solvent and adjust the vacuum modulator pin length before completing initial road validation tests.

Shot-peened A380 die-cast aluminum forms the front-wheel-drive transaxle casing, verified crack-free around transmission mount bosses using dye penetrant. Hardened planetary pinions mesh against reaction sun gears to manage 3.1L V6 engine torque without gear deflection. We install new vacuum modulators, upgraded boost valve sleeves, Kolene steel plates, and high-energy BorgWarner friction packs. Precision drive sprocket bearings eliminate chain whip. The dry unit weighs 195 lbs and ships inside a 36 by 24 by 22 inch crate.

Key Features of Buick 4T60E

Technicians buy Buick 4T60E transmission units to eliminate delayed forward engagement without paying steep dealership parts pricing. This commercial remanufactured transmission assembly provides positive torque transfer for Buick Century transmission replacement projects.

- Updated pressure boost valve assembly restores main line pressure balance across all throttle inputs.
- Calibrated vacuum modulator delivers accurate shift timing based on real-time engine vacuum load.
- Reamed valve body bores hold twenty-two inches of mercury during calibrated vacuum test bench checks.
- Balanced remanufactured torque converter eliminates driveline shudder and protects front pump drive gears.
- BorgWarner high-energy friction clutch plates resist thermal glaze under prolonged highway driving cycles.
- Hardened intermediate brake bands deliver positive mechanical grip to stop second gear shift slip.
- Precision final drive differential carrier bearings preserve axle shaft alignment under hard road torque.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test every remanufactured 4T60E transaxle on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 165 PSI in Drive and 225 PSI in Reverse at 1500 RPM. Mechanical modulator shifts actuate crisp gear transitions across manifold vacuum steps from zero to eighteen inches. Re-machined valve body passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. Dynamometer sensors verify zero converter clutch slip at cruising speed. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Directives Negative Filter

Spin the torque converter inward through three positive gear drops until the hub clears the bellhousing face. Check engine block dowels for corrosion before bolting the transaxle flat to the block. Do not buy this vacuum-modulated transaxle for custom turbo swaps, race builds, or manual conversions.

- Flush cooler lines with hot chemical solvent to clear burned friction clutch sediment.
- Fill with approved Dexron fluid while verifying engine manifold vacuum signal to modulator.
- Adjust throttle valve cable geometry to factory specifications prior to highway road testing.

Nationwide Warranty Freight Crate Contents

Your purchase brings a nationwide 3-Year/100,000-Mile warranty protecting against internal mechanical damage and hydraulic pressure control faults. The sturdy wooden freight crate houses a balanced torque converter, technician installation guide, dynamometer inspection pass slip, cooler flush checklist, and a pre-printed core return bill of lading for simple return transit.
