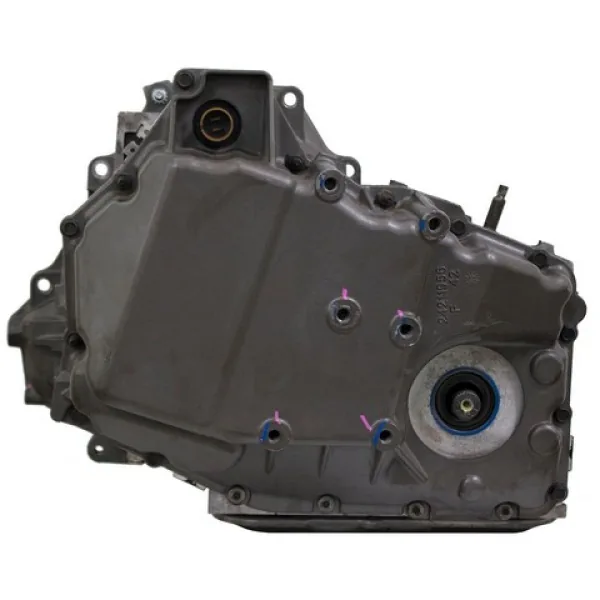

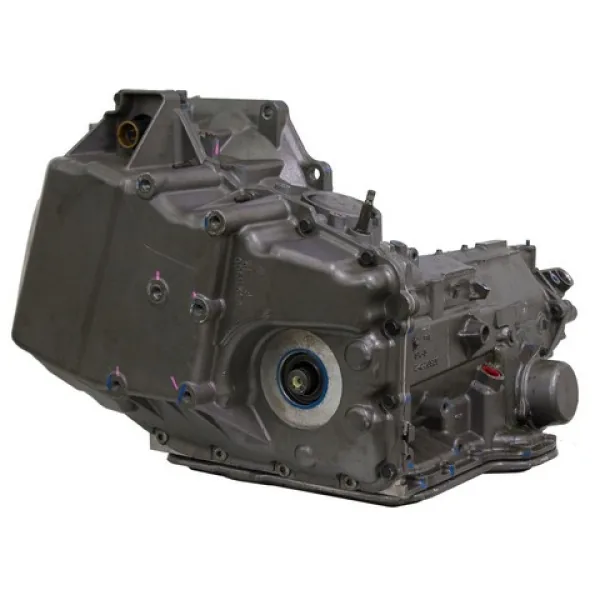

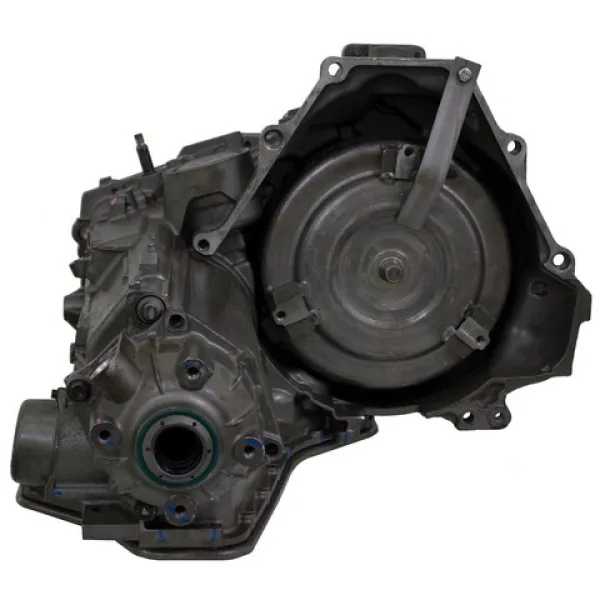

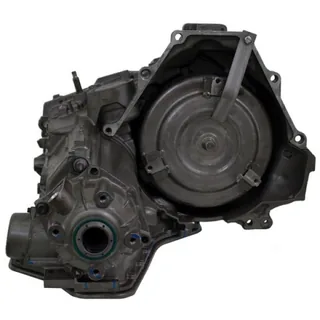

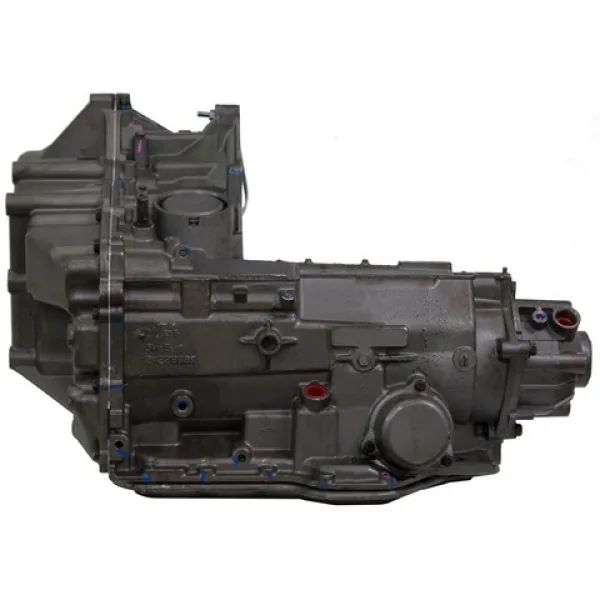

Buick Allure LaCrosse 2005-2006 Automatic Transmission 4-Speed 4T65E Remanufactured

Strict OEM remanufacturing specifications govern every rebuild stage on this transaxle. This remanufactured 4T65E transaxle assembly restores dependable forward drive for 2005 to 2006 Buick Allure and LaCrosse models. You must perform a complete chemical cooler flush and clear transmission shift adaptations before putting the vehicle into service to protect internal hydraulic controls.

Shot-peened A380 die-cast aluminum forms the transaxle casing and channel plate, tested with fluorescent dye penetrant for bellhousing stress cracks. Hardened planetary pinions and heavy drive sprockets handle continuous GM 3.8L engine torque without tooth deflection. We install oversized actuator feed limit valves, Sonnax TCC regulator sleeves, Kolene steel plates, and Raybestos friction packs. Replaced pump bushings maintain stable line pressure. The dry unit weighs 205 lbs and ships inside a 36 by 26 by 22 inch crate.

Key Features of Buick 4T65E

Technicians buy Buick 4T65E transaxles to stop harsh shift adapt clunks without paying steep local dealership pricing. This commercial remanufactured transmission assembly ensures positive torque multiplication and durable line pressure control for Buick Allure transmission replacement projects.

- Oversized actuator feed limit valve prevents line pressure instability and harsh second gear shifts.
- Upgraded TCC regulator valve sleeve stops torque converter shudder and clutch slip codes.
- Vacuum testing proves twenty-two inches of mercury retention across all reamed valve bores.
- Balanced torque converter stops drivetrain shudder while protecting internal pump gears from wear.
- Raybestos high-energy frictions resist high heat glaze during demanding highway driving.
- Hardened fourth gear clutch shaft prevents spline strip failure under heavy throttle.
- New EPC pressure control solenoid guarantees factory line pressure modulation in all gears.

SuperFlow Dynamometer Load Test Telemetry

Technicians test every remanufactured 4T65E transaxle on a SuperFlow dynamometer through cold start and high temperature cycles. Telemetry confirms main line pressure reading 170 PSI in Drive and 230 PSI in Reverse at 1500 RPM. Electronic pressure control solenoids react within twenty milliseconds with zero mechanical spool sticking. Calibrated vacuum gauges register twenty-two inches of mercury across all hydraulic control passages. Automated testing logs zero lockup clutch slip under simulated high-load road conditions. Fluid temperature sensors confirm normal thermal equilibrium without internal fluid bypass leaks.

Field Assembly Rules Application Limits

Seat the torque converter inward with three distinct clicks until the hub drops well past the bellhousing mating surface. Never force the transmission against the engine block using bellhousing bolts. Do not buy this factory-calibrated unit for turbo track racers, drift builds, or vehicles with altered final-drive differentials.

- Flush cooler lines with hot pressurized solvent to clear metallic clutch debris from previous failures.
- Fill with Dexron VI fluid until it spills from the check port at normal operating temperature.
- Perform an electronic adaptation reset procedure using a professional scan tool before road testing.

Warranty Terms Shipping Contents Details

This remanufactured assembly includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakages and hydraulic valve body failures. The reinforced wooden crate contains a balanced torque converter, step-by-step installation instructions, dynamometer test pass printout, cooler flush verification card, and a pre-paid core return freight bill for easy transport.
