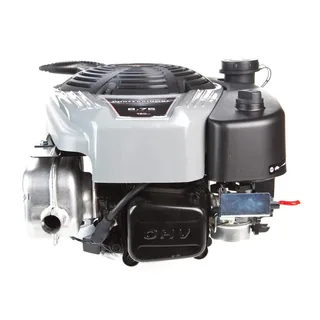

Briggs & Stratton Vertical Engine – 121S02-2025-F1

<p>Briggs &amp; Stratton Vertical Engine – 121S02-2025-F1 121S02-2025-F1 190 cc 8.75 Gross Torque OHV Vertical Engine with a 25 mm x 3-5/32 inch Crankshaft.</p> <p>Key Specifications</p> <p>BRAND Briggs &amp; Stratton</p> <p>MODEL NUMBER 121S02-2025-F1</p> <p>REPLACES MODELS 2S902-0126-B1, 12S902-0124-B1, 121S02-0110-F1, 121S02-0025-F1, 121R02-1339-F1, 11P902-0693-B1, 11P902-0123-B1, 111P02-0693-F1, 121S02-0025</p> <p>WARRANTY 2 Year Consumer / 90 Day Commercial</p> <p>SHIPPING WEIGHT 28</p> <p>DISPLACEMENT 190cc</p> <p>STARTER TYPE Recoil</p> <p>CRANKSHAFT ORIENTATION Vertical</p> <p>CRANKSHAFT TYPE Straight</p> <p>FUEL SYSTEM Gasoline</p> <p>GEAR REDUCTION No</p> <p>CRANKSHAFT DIMENSIONS 25mm x 3-5/32″</p> <p>CRANKSHAFT DIAMETER 25mm</p> <p>CRANKSHAFT LENGTH 3-5/32″</p> <p>CRANKSHAFT END TAPPED SIZE 3/8 – 24</p> <p>CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise</p> <p>BEARING TYPE Plain PTO</p> <p>CYLINDERS 1</p> <p>CYLINDER BORE TYPE Aluminum Alloy</p> <p>AIR CLEANER TYPE Dual Element</p> <p>FUEL TANK Yes</p> <p>FUEL PUMP No</p> <p>OIL COOLER No</p> <p>OIL CAPACITY 20</p> <p>LOW OIL ALERT No</p> <p>LOW OIL SHUTDOWN No</p> <p>IGNITION SYSTEM Electronic</p> <p>CARBURETOR TYPE Float</p> <p>CHOKE CONTROL Ready Start</p> <p>MAX RPM 3100</p> <p>CHARGING SYSTEM None</p> <p>BOLT CIRCLE 8″</p> <p>FLYWHEEL Light</p> <p>NOTES Engine Notes:</p> <p>PTO HEIGHT N/A</p>
