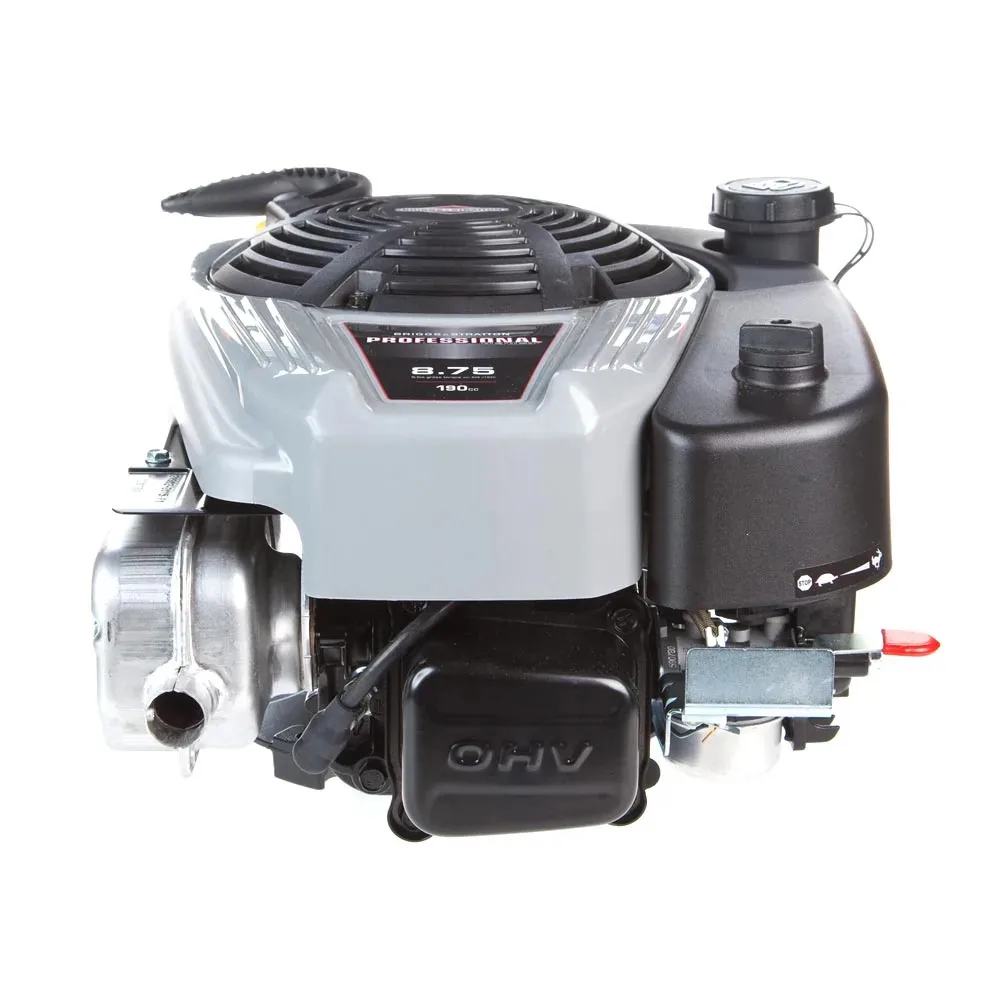

Briggs & Stratton Vertical Engine – 121S02-2015-F1

Briggs & Stratton Vertical Engine – 121S02-2015-F1 121S02-2015-F1 190 cc 8.75 Gross Torque OHV Vertical Engine with a 7/8 inch x 3-5/32 inch Crankshaft.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 121S02-2015-F1

REPLACES MODELS 110602-0015-E1, 110602-0100-E1, 110602-0102-E1, 110602-0112-E1, 110602-0118-E1, 110602-0131-E1, 110602-0134-E1, 110602-0135-E1, 110602-0136-E1, 111602-0101-E1, 111602-0139-E1, 111602-0145-E1, 111602-0146-E1, 111602-0150-E1, 111602-0151-E1, 111602-0156-E1, 111602-0157-E1, 111602-0162-E1, 111602-0169-E1, 111602-0174-E1, 111602-0175-E1, 11A602-0111-E1, 11A602-0113-E1, 11A602-0115-E1, 11A602-0125-E1, 11A602-0147-E1, 11A602-0150-E1, 11A602-0151-E1, 11A602-0152-E1, 11A602-0169-E1, 11A602-0170-E1, 120602-0120-E1, 120602-0131-E1, 120602-0138-E1, 120602-0146-E1, 120602-0146-E2, 120602-0153-E1, 120602-0164-E1, 120602-0195-E1, 120602-0200-E1, 121602-0015-A1, 121602-0015-B1, 121602-0015-E1, 121602-0019-E1, 121602-0118-E1, 121602-0121-E1, 121602-0135-01, 121602-0154-01, 121602-0155-E1, 121602-0155-E2, 121602-0165-E1, 121602-0168-A1, 121602-0173-E1, 121602-0175-E1, 121602-0182-E1, 121602-0184-E1, 121602-0190-E1, 121602-0190-E2, 121602-0215-E1, 121602-0219-E1, 121602-0220-E1, 121602-0221-B1, 121602-0221-E1, 121602-0223-E1, 121602-0232-E1, 121602-0245-E1, 121602-0250-E1, 121602-0252-E1, 121602-0256-E1, 121602-0258-E1, 121602-0263-E1, 121602-0265-E1, 121602-0272-B1, 121602-0272-E1, 121602-0279-E1, 121602-0279-E2, 121602-0280-E1, 121602-0281-E1, 121602-0286-E1, 121602-0291-E1, 121602-0297-E1, 121602-0306-B1, 121602-0306-E1, 121602-0308-E1, 121602-0321-E1, 121602-0332-E1, 121602-0338-E1, 121602-0339-E1, 121602-0344-E1, 121602-0346-B1, 121602-0346-E1, 121602-0359-B1, 121602-0359-E1, 121602-0360-E1, 121602-0385-B1, 121602-0385-E1, 121602-0388-B1, 121602-0388-E1, 121602-0390-B1, 121602-0390-E1, 121602-0515-B1, 121602-0515-E1, 121S02-0015, 121S02-0015-F1

WARRANTY 2 Year Consumer / 90 Day Commercial

SHIPPING WEIGHT 30

DISPLACEMENT 190cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Vertical

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 7/8″ x 3-5/32″

CRANKSHAFT LENGTH 3-5/32″

CRANKSHAFT END TAPPED SIZE 3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Plain PTO

CYLINDERS 1

CYLINDER BORE TYPE Aluminum Alloy

AIR CLEANER TYPE Dual Element

FUEL TANK Yes

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Ready Start

MAX RPM 3100

CHARGING SYSTEM None

BOLT CIRCLE 8″

FLYWHEEL Light

NOTES Engine Notes:

PTO HEIGHT N/A
