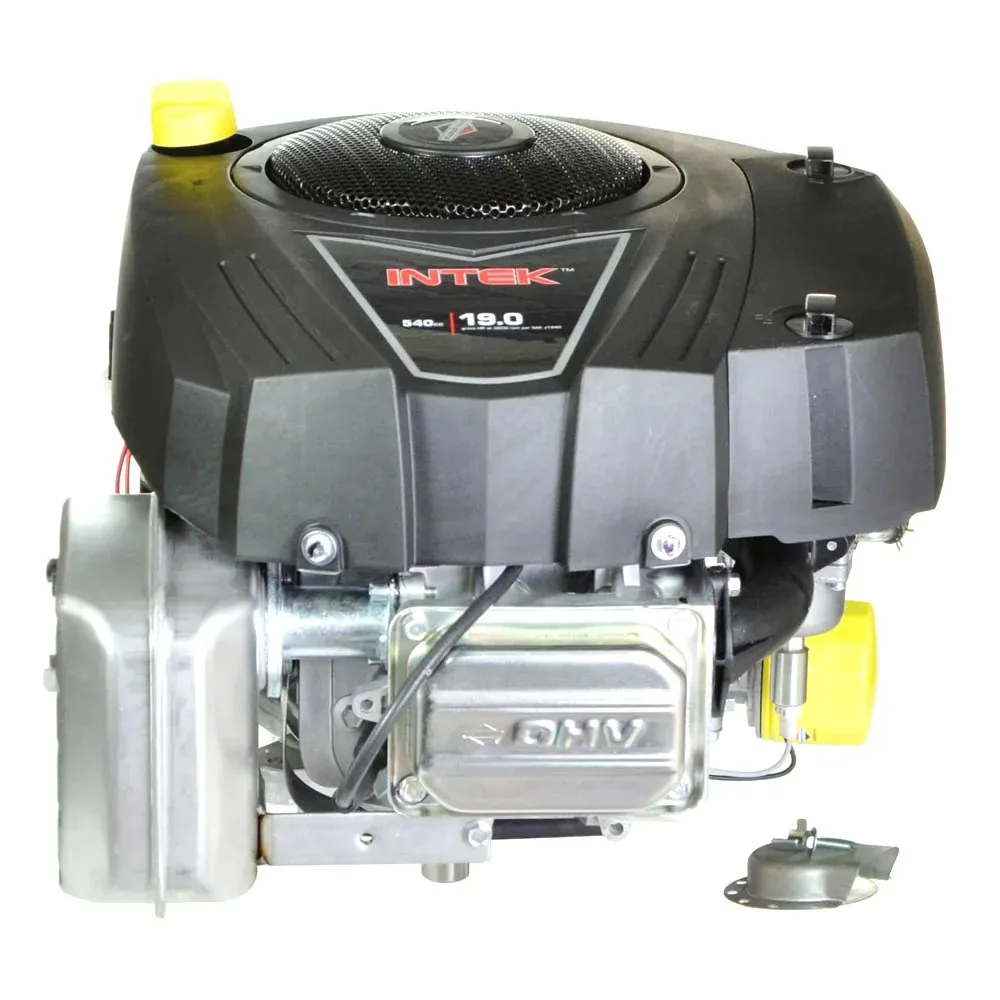

Briggs & Stratton Intek 33S877-0019-G1 Engine, Replaces 33R877-0003-G1

Briggs & Stratton Intek 33S877-0019-G1 Engine, Replaces 33R877-0003-G1 is 540cc. This single cylinder Briggs & Stratton Intek has a 1″ x 3-5/32″ crankshaft. The engine has a 12V electric start with a 9A alternator. It is equipped with an oil pump and oil filter, fuel pump and muffler. The 33R877-0003-G1 replaces model 33R877-0003-G1 and 331977-0001-G1. Briggs & Stratton Intek series engines deliver the reliable, efficient power needed for riding lawn mowers and tractors. Buyer protection package provides a two-year limited consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 33S877-0019-G1

REPLACES MODELS 33R877-0003-G1, 31M877-0110-E1, 31M977-0111-E1, 31M977-0112-E1, 31M977-0114-E1, 31N607-0765-B1, 31N677-0554-B2, 31N807-0440-E1, 31P677-0113-B1, 31P677-0113-E1, 31P677-0113-G1, 31P677-0116-B1, 31P677-0117-B1, 31P677-0117-G1, 31P677-0130-B1, 31P677-0130-E1, 31P677-0130-E2, 31P677-0131-B1, 31P677-0131-B2, 31P677-0132-B1, 31P677-0132-B2, 31P677-0133-B1, 31P677-0133-B2, 31P677-0134-G1, 31P677-0134-G2, 31P677-0138-B1, 31P677-0140-B1, 31P677-0140-B2, 31P677-0141-G1, 31P677-0141-G2, 31P677-0143-B1, 31P677-0143-B2, 31P677-0494-B1, 31P677-0494-E1, 31P677-0804-B1, 31P677-0804-B2, 31P677-0804-E1, 31P677-0804-G1, 31P677-0832-B1, 31P677-0832-B2, 31P877-0036-E1, 31P877-0110-E1, 31P877-0110-E2, 31P877-0118-E1, 31P877-0118-E2, 31P877-0121-E1, 31P877-0122-B1, 31P877-0608-E1, 31P877-0608-E2, 31P977-0036-E1, 31P977-0036-G1, 31P977-0449-E1, 31P977-0575-E1, 31P977-0575-E2, 31P977-0635-E1, 31P977-0652-B1, 31P977-0670-E1, 31P977-0671-E1, 31P977-0881-B1, 31P977-1046-B1, 31P977-1066-E1, 31P977-1094-B1, 31Q677-0111-B1, 31Q677-0111-E1, 331777-0546-B1, 331777-0546-E1, 331777-0946-B1, 331777-0946-B2, 331777-0946-B4, 331777-0946-G1, 331777-0956-B1, 331777-1107-B1, 331777-1192-B1, 331877-0036-E1, 331877-0036-G1, 331877-0113-B1, 331877-0113-B2, 331877-0114-G1, 331877-0114-G2, 331877-0115-B1, 331877-0117-G1, 331877-0142-B1, 331877-0142-B2, 331877-0143-G1, 331877-0143-G2, 331877-0144-B1, 331877-0145-B1, 331877-0730-B1, 331877-0805-B1, 331877-0805-E1, 331877-0979-B1, 331877-1234-B1, 331977-0001-G1

WARRANTY 2 Year Consumer / 1 Year Commercial

SHIPPING WEIGHT 77

DISPLACEMENT 540cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Vertical

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″ x 3-5/32″

CRANKSHAFT LENGTH 3-5/32″

CRANKSHAFT END TAPPED SIZE 7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Plain

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Dual Element

FUEL TANK No

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 48

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Choke-A-matic

MAX RPM 3600

CHARGING SYSTEM 9

BOLT CIRCLE 10″

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT N/A
