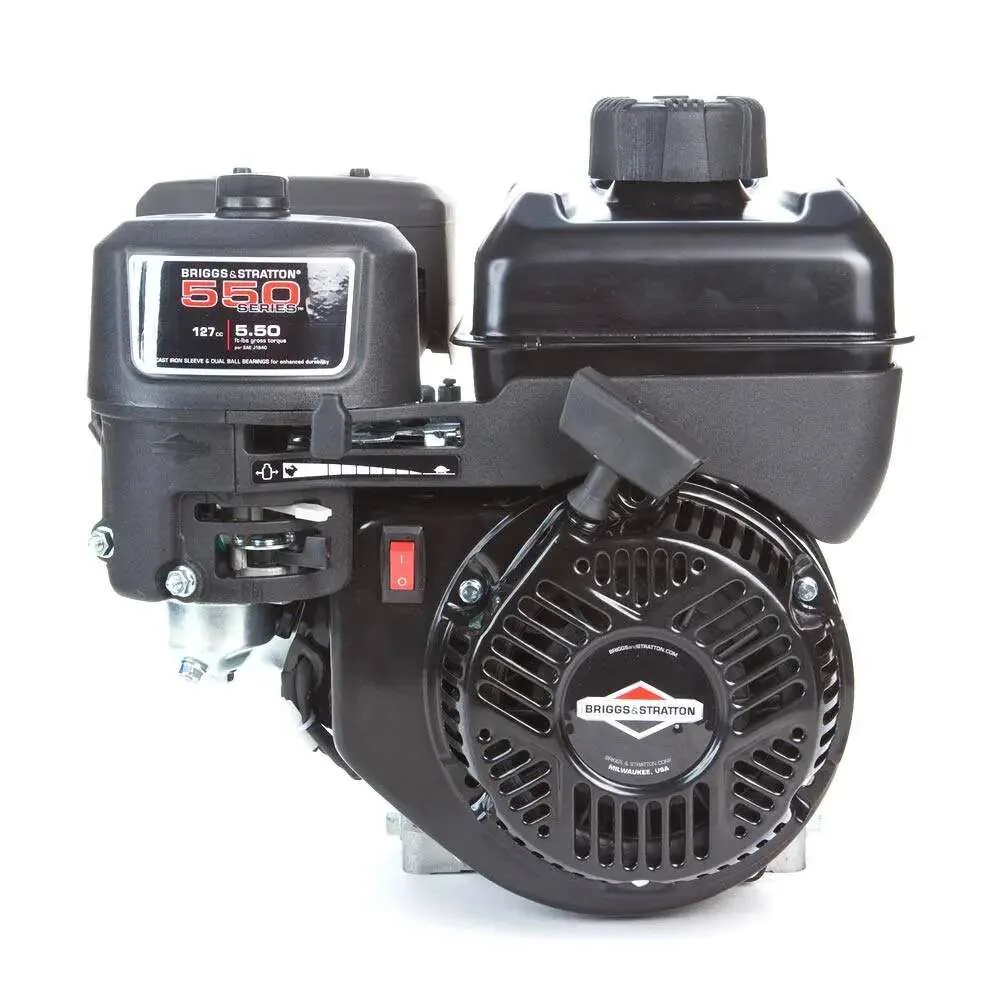

Briggs & Stratton 83132-1040-F1 550 5.5 Gross torque, 127cc OHV Engine

Briggs & Stratton 83132-1040-F1 550 5.5 Gross torque, 127cc OHV Engine is 127cc and puts out 5.50 gross torque. This OHV utility engine has a 5/8″ x 2-27/64″ crankshaft. It has a recoil starter and is equipped with a muffler. Briggs & Stratton 550 Series general purpose engines are designed to efficiently deliver the power needed for outdoor work. Common applications include tillers, pressure washers, pumps and generators. Buyer protection package provides a two-year limited consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 83132-1040-F1

WARRANTY 2 Year Consumer / 1 Year Commercial

SHIPPING WEIGHT 35

DISPLACEMENT 127cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 5/8″ x 2-27/64″

CRANKSHAFT DIAMETER 5/8″

CRANKSHAFT LENGTH 2-27/64″

CRANKSHAFT END TAPPED SIZE 1/4 – 28

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Ball

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Dual Element

FUEL TANK Yes

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual

MAX RPM 3300

CHARGING SYSTEM None

BOLT CIRCLE 3-5/8″

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
