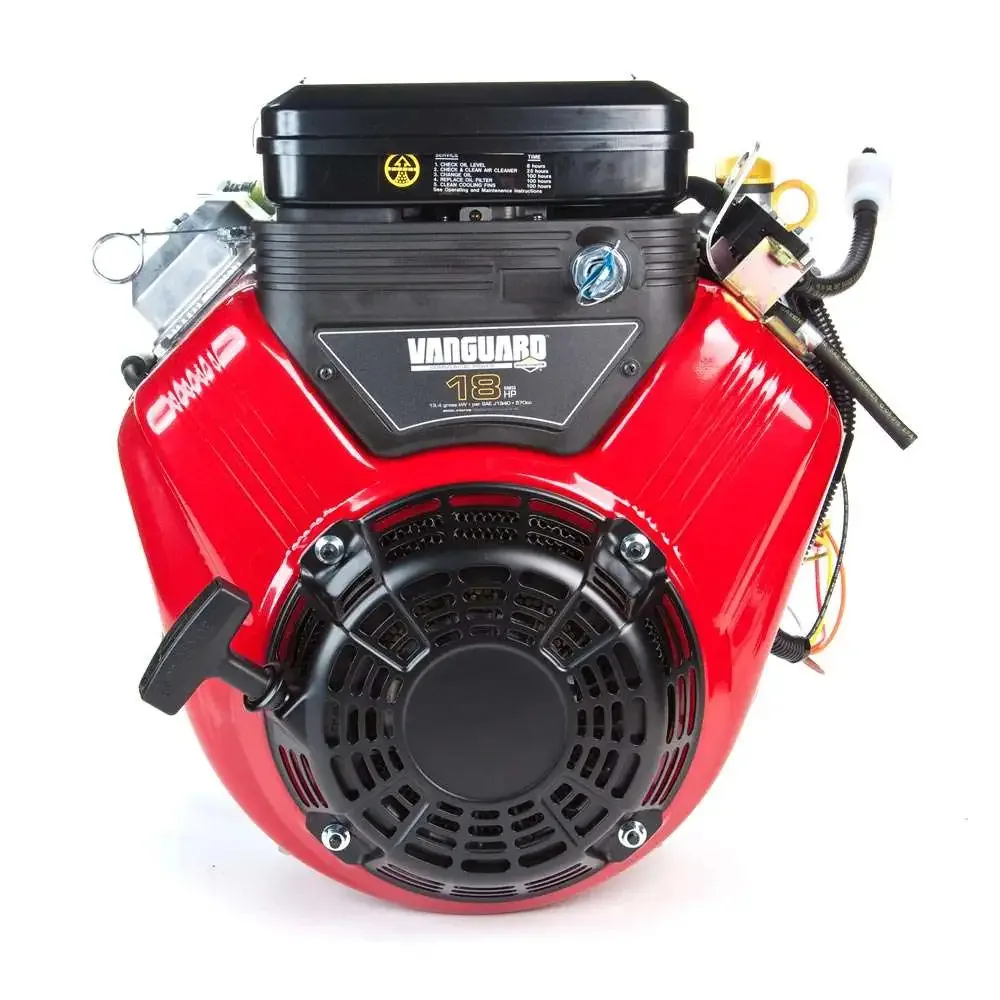

Briggs & Stratton 356447-0050-G1 Horizontal Engine Replaces 356447-3077-G1

Briggs & Stratton 356447-0050-G1 Horizontal Engine Replaces 356447-3077-G1 is 570cc and puts out 18.0 HP (maximum horsepower). This Vanguard V-twin has a 1″ x 3-1/4″ threaded crankshaft and comes equipped with an electric starter with recoil back-up, 16-amp charging system, fuel pump and oil filter. Muffler and fuel tank are not included. Briggs & Stratton Vanguard engines are designed with advanced technologies and integrated components to be both compact and powerful enough to take on the most demanding commercial jobs. Common applications include power packs and generators, commercial mowers and golf and turf equipment. Buyer protection package provides three-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 356447-0050-G1

REPLACES MODELS 356447-3077-G1, 356447-0077-E1, 356447-0077-G1, 356447-0189-G1, 356447-0189-E1, 356447-0171-G1, 356447-0171-E1, 350447-1377-E1, 350447-1110-E1, 350447-1080-E1, 350447-1080-A1, 350447-1077-E1, 350447-1077-A2, 350447-1077-A1, 350447-0080-01, 350447-0077-01, 350447-1080, 350442-1172-A1, 294447-0325-01

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 94

DISPLACEMENT 570cc

STARTER TYPE Electric with Recoil Backup

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Threaded

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″-14 x 3-21/32″

CRANKSHAFT DIAMETER 1″-14

CRANKSHAFT LENGTH 3-21/32″

CRANKSHAFT END TAPPED SIZE N/A

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Ball

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Dual Element

FUEL TANK No

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 48

LOW OIL ALERT Yes

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual and Remote

MAX RPM 3600

CHARGING SYSTEM 16

BOLT CIRCLE 5, 6-1/2, 7-3/4

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 5 – 1/4
