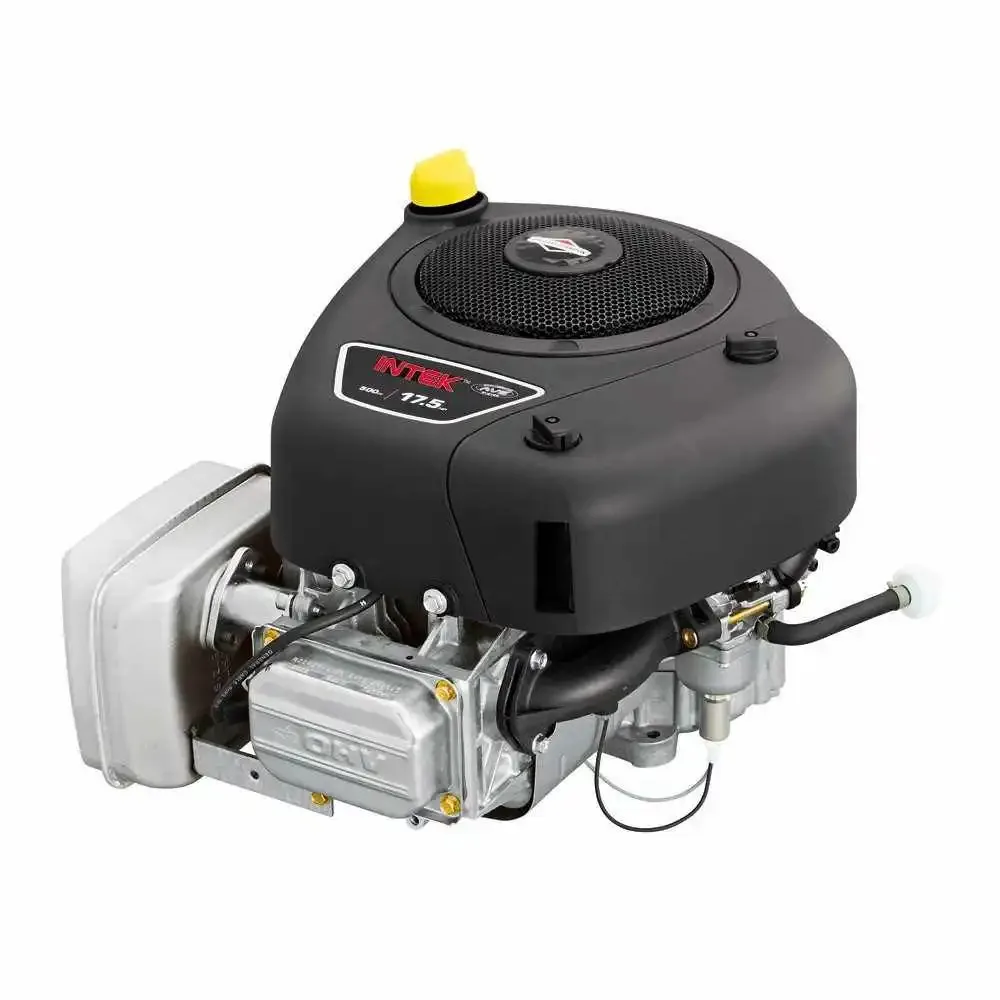

Briggs & Stratton 31R907-0022-G1 Vertical Engine

<p>Briggs &amp; Stratton 31R907-0022-G1 Vertical Engine is 500cc and puts out 17.5 HP (maximum horsepower). This Intek has a 1″ x 3-5/32″ crankshaft with a 1/4″ keyway and is equipped with a 12V electric starter. Briggs &amp; Stratton Intek engines feature dependable components such as an Advanced Debris Management System, Dura-Bore cast iron sleeves and OHV design that offer maximum protection, extended life and smooth performance in tough conditions. Designed for riding mower applications. Buyer protection package provides two-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.</p> <p>Key Specifications</p> <p>BRAND Briggs &amp; Stratton</p> <p>MODEL NUMBER 31R907-0022-G1</p> <p>REPLACES MODELS 31A607-3026-G5, 31A607-3026, 31N707-3026-G5, 31N707-3026, 31N707-0026-G1, 31N707-0026, 31A607-0026-G1, 31A607-0026, 280J07-0115-E2, 280J07-0115, 31A607-3026</p> <p>WARRANTY 2 Year Consumer / 1 Year Commercial</p> <p>SHIPPING WEIGHT 74</p> <p>DISPLACEMENT 500cc</p> <p>STARTER TYPE Electric</p> <p>CRANKSHAFT ORIENTATION Vertical</p> <p>CRANKSHAFT TYPE Straight</p> <p>FUEL SYSTEM Gasoline</p> <p>GEAR REDUCTION No</p> <p>CRANKSHAFT DIMENSIONS 1″ x 3-5/32″</p> <p>CRANKSHAFT LENGTH 3-5/32″</p> <p>CRANKSHAFT END TAPPED SIZE 7/16 – 20</p> <p>CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise</p> <p>BEARING TYPE Plain PTO</p> <p>CYLINDERS 1</p> <p>CYLINDER BORE TYPE Cast Iron Sleeve</p> <p>AIR CLEANER TYPE Cartridge Type</p> <p>FUEL TANK No</p> <p>FUEL PUMP Yes</p> <p>OIL COOLER No</p> <p>OIL CAPACITY 48</p> <p>LOW OIL ALERT No</p> <p>LOW OIL SHUTDOWN No</p> <p>IGNITION SYSTEM Electronic</p> <p>CARBURETOR TYPE Float</p> <p>CHOKE CONTROL Choke-A-matic</p> <p>MAX RPM 3300</p> <p>CHARGING SYSTEM 9</p> <p>FLYWHEEL Heavy</p> <p>NOTES Engine Notes:</p> <p>PTO HEIGHT N/A</p>
