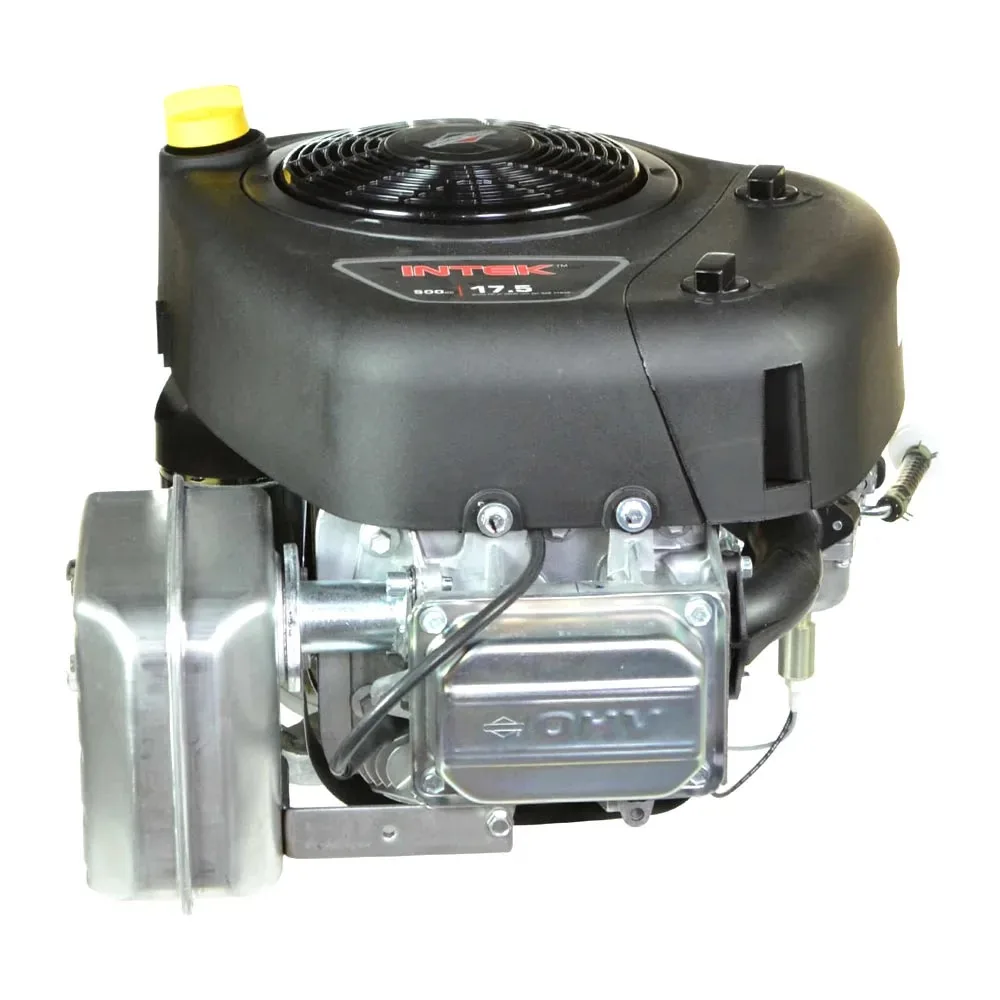

Briggs & Stratton 31R907-0007-G1 500cc, 17.5 Gross HP OHV Engine

Briggs & Stratton 31R907-0007-G1 500cc, 17.5 Gross HP OHV Engine is 500cc and puts out 17.5 gross HP. This single cylinder Briggs & Stratton Intek has a 1″ x 3-5/32″ crankshaft. The engine has a 12V electric start with 9A alternator. It is equipped with a muffler, but it does not include a fuel pump. The 31R907-0007-G1 replaces model 31C707-3026-G5. Briggs & Stratton Intek series engines deliver the reliable, efficient power needed for riding lawn mowers and tractors. Buyer protection package provides a two-year limited consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 31R907-0007-G1

REPLACES MODELS 31A607-0111-B1, 31A607-0111-E1, 31A607-0113-B1, 31A607-0113-E1, 31A607-0114-B1, 31A607-0114-E1, 31A607-0115-B1, 31A607-0115-E1, 31A607-0120-B1, 31A607-0458-B1, 31A607-0458-E1, 31A607-0740-B1, 31A607-0741-B1, 31A607-0741-B2, 31A607-0741-B3, 31A607-0741-E1, 31A607-0741-G1, 31A607-0741-G2, 31B707-0026-E1, 31C707-0026-G1, 31C707-1329-B1, 31C707-0026, 31C707-3026, 31C707-0026, 31C707-0026-E1, 697761, 31G707-0026-G1, OHV16, 31A607-0111-B1, 31A607-0111-E1, 31A607-0113-B1, 31A607-0113-E1, 31A607-0114-B1, 31A607-0114-E1, 31A607-0115-B1, 31A607-0115-E1, 31A607-0120-B1, 31A607-0458-B1, 31A607-0458-E1, 31A607-0740-B1, 31A607-0741-B1, 31A607-0741-B2, 31A607-0741-B3, 31A607-0741-E1, 31A607-0741-G1, 31A607-0741-G2, 31B707-0026-E1, 31C707-0026-G1, 31C707-1329-B1, 31G707-0026-E1, 31N707-0026-E1, 31C707-3026-G5, 31C707-3026

WARRANTY 2 Year Consumer / 1 Year Commercial

SHIPPING WEIGHT 75

DISPLACEMENT 500cc

STARTER TYPE Electric

CRANKSHAFT ORIENTATION Vertical

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″ x 3-5/32″

CRANKSHAFT LENGTH 3-5/32″

CRANKSHAFT END TAPPED SIZE 7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Plain

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Cartridge Type

FUEL TANK No

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 48

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Choke-A-matic

MAX RPM 3300

CHARGING SYSTEM 9

BOLT CIRCLE 10″

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT N/A
