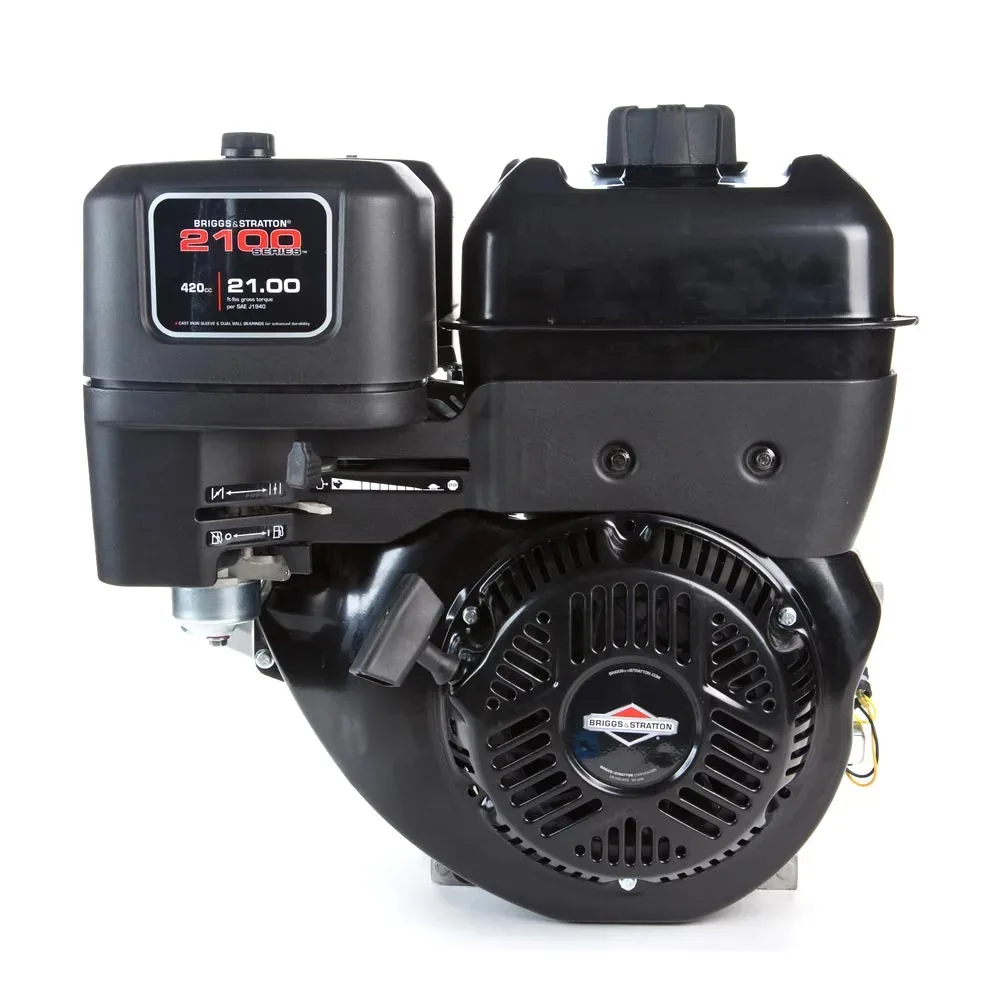

Briggs & Stratton 25T232-0037-F1 Horizontal Engine

<p>Briggs &amp; Stratton 25T232-0037-F1 Horizontal Engine is 420cc and puts out 21.0 gross torque. This XR has a 1″ x 3-31/64″ crankshaft with a 1/4″ keyway. Briggs &amp; Stratton XR Professional series engines are built with features like Magnetron electronic ignition and Dura-Bore cast iron sleeves to provide reliable power in even the most demanding situations. Common applications include tillers, pressure washers, water pumps, log splitters, portable generators and more. Buyer protection package provides two-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.</p> <p>Key Specifications</p> <p>BRAND Briggs &amp; Stratton</p> <p>MODEL NUMBER 25T232-0037-F1</p> <p>WARRANTY 2 Year Consumer / 1 Year Commercial</p> <p>SHIPPING WEIGHT 84</p> <p>DISPLACEMENT 420cc</p> <p>STARTER TYPE Recoil</p> <p>CRANKSHAFT ORIENTATION Horizontal</p> <p>CRANKSHAFT TYPE Straight</p> <p>FUEL SYSTEM Gasoline</p> <p>GEAR REDUCTION No</p> <p>CRANKSHAFT DIMENSIONS 1″ x 3-21/32″</p> <p>CRANKSHAFT LENGTH 3-21/32″</p> <p>CRANKSHAFT END TAPPED SIZE 7/16 – 20</p> <p>CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise</p> <p>BEARING TYPE Dual Ball with Oil Seal</p> <p>CYLINDERS 1</p> <p>CYLINDER BORE TYPE Cast Iron Sleeve</p> <p>AIR CLEANER TYPE Cartridge with Pre Filter</p> <p>FUEL TANK Yes</p> <p>FUEL PUMP No</p> <p>OIL COOLER No</p> <p>OIL CAPACITY 28</p> <p>LOW OIL ALERT Yes</p> <p>LOW OIL SHUTDOWN No</p> <p>IGNITION SYSTEM Electronic</p> <p>CARBURETOR TYPE Float</p> <p>CHOKE CONTROL Manual</p> <p>MAX RPM 3600</p> <p>CHARGING SYSTEM None</p> <p>BOLT CIRCLE 3-5/8″, 5, 6-1/2</p> <p>FLYWHEEL Heavy</p> <p>NOTES Engine Notes:</p> <p>PTO HEIGHT 5 – 1/4</p>
